Frame Relay Configuration
WPIM-T1/DDS User’s Guide 3-17
3.4.2 T1 Interface Configuration
The WAN Interface Configuration screen is accessed through the WAN
Physical Configuration screen. Access the WAN Interface Configuration
screen by using the arrow keys to highlight the WAN INT CONFIG
command and press ENTER. Refer back to
Figure 3-4 and proceed with
the following steps to configure the WAN Interface.
1. Set the WAN connection Interface Number by typing the same
number into the Interface Number field that was input into the
timeslots in the WAN Physical Configuration screen, then press
ENTER (refer to the Note on
page 3-16 ).
2. Unless the user sets the Max Xmit Unit, the WPIM-T1/DDS
automatically sets the Max Xmit Unit to 1526 (default) after the
active protocol (PPP) is selected.
3. Make any changes to the available settings as desired.
4. Use the arrow keys to highlight the SAVE command, then press
ENTER. The message “Save Done!” appears and Local Management
saves the changes to memory.
The WAN configuration is complete. It takes up to 60 seconds for the
WAN Interface to come out of standby and for communications to begin.
3.5 FRAME RELAY CONFIGURATION
This section provides step-by-step instructions for configuring the
WPIM-T1/DDS to use a T1 circuit in a Frame Relay environment. This
example assumes the setup shown in
Figure 3-8 using two CSX400s, each
with a WPIM-T1/DDS installed. Configurations may vary depending on
the host platform.

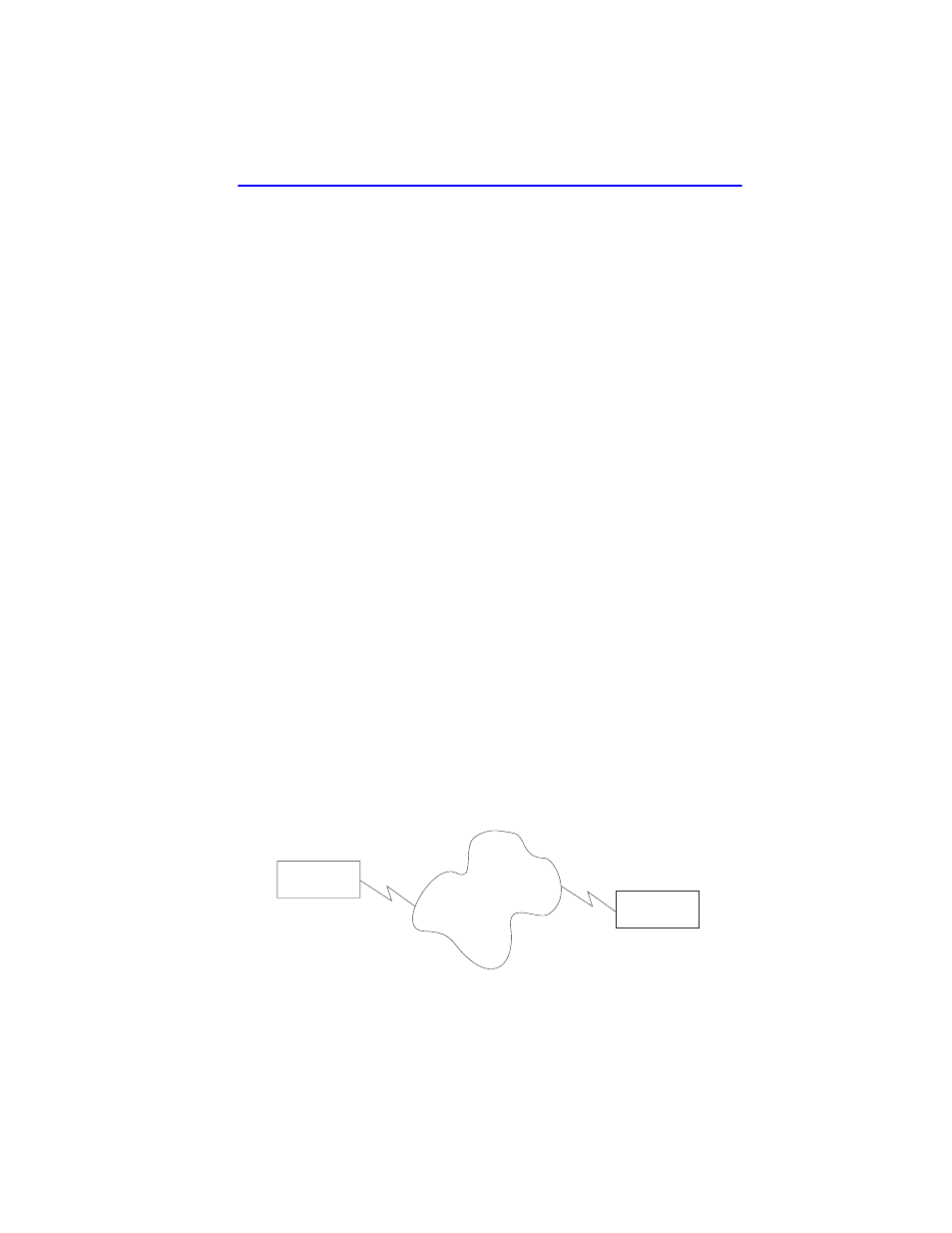

Figure 3-8 Frame Relay Configuration
SITE #1
Telco Cloud
24 Timeslots
24 Timeslots
SITE #2
1482_05
