tekmar 268 Boiler Control - Manual (Page 25)

25 of 32 © 2010 D 268 - 11/10

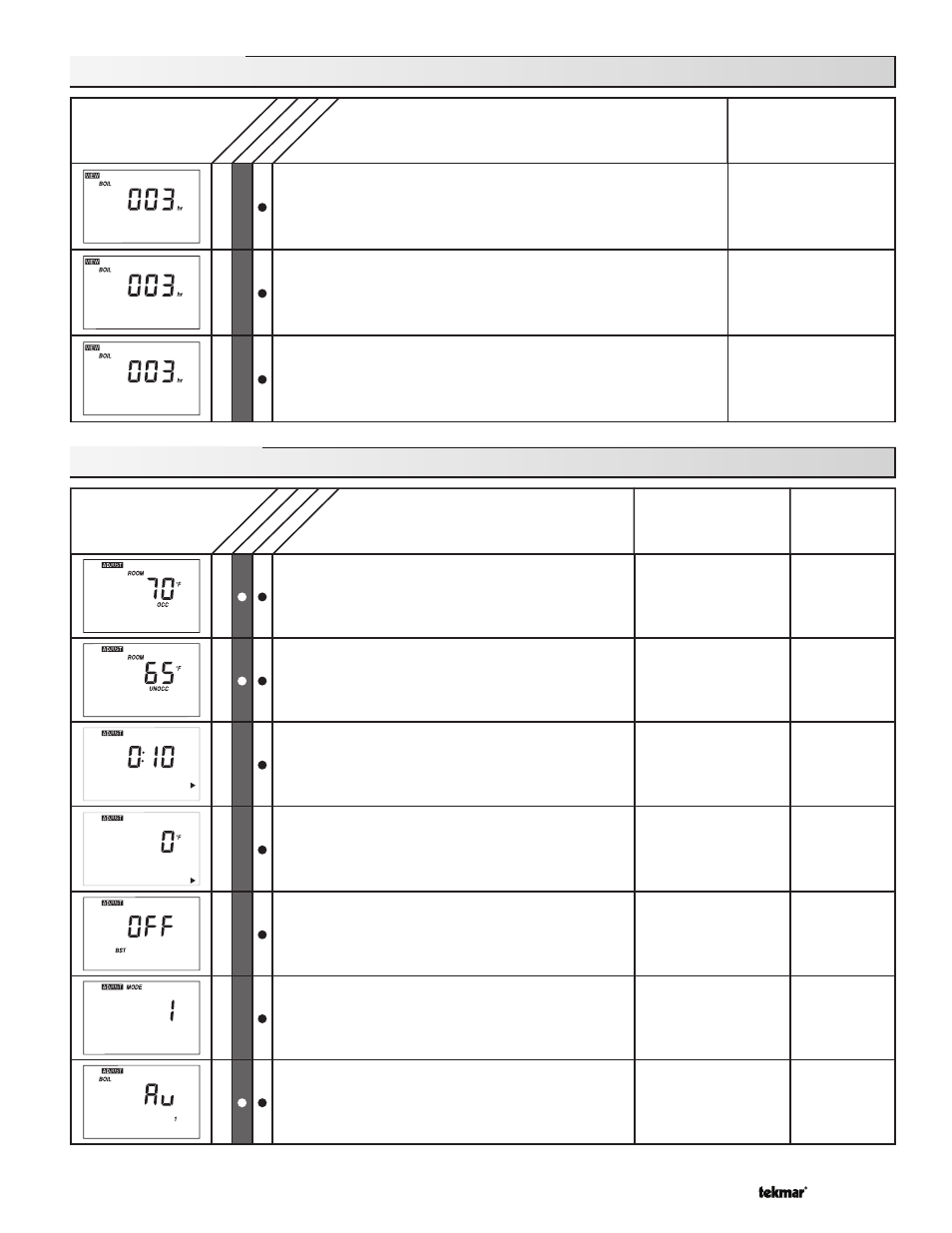

Adjust Menu (1 of 4)
D1
Room Occupied - The desired room air temperature
during the occupied period.
This item is only available if the External Input / Stand
Alone DIP switch is set to Stand Alone.
35 to 100°F
(2 to 38°C)
Default = 70°F (21°C)
D1
Room Unoccupied - The desired room air
temperature during the unoccupied period.
This item is only available if the External Input / Stand
Alone DIP switch is set to Stand Alone.
35 to 100°F
(2 to 38°C)
Default = 65°F (18°C)
F1
External Input Signal - Selects the range of the
external input signal.
This item is only available if the External Input / Stand
Alone DIP switch is set to External Input.
0:10, 2:10
Default = 0:10
F1
Offset - Sets the temperature offset used in
calculating the boiler target temperature with an
external input signal.
This item is only available if the External Input /
Stand Alone DIP switch is set to External Input.
-10 to 10°F
(-6 to 6°C)
Default = 0°F (0°C)
D1
Boost - The amount of morning boost.
This item is only available if the External Input / Stand
Alone DIP switch is set to Stand Alone. OFF, 0:20 to 8:00 hr
(5 minute increment)
Default = OFF
B1 Mode - Selects the staging mode of operation.
1 (9 Boil), 2 (4 Boil 4 Pmp),
3 (4 LoHi), 4 (3 LoHi 3 Pmp),
5 (3-3 Stg), 6 (2-3 Stg 2 Pmp),
7 (2-4 Stg), 8 (1-4 Stg 1 Pmp)
Default = 1
B1
Boiler 1 - Selects whether or not boiler 1 is
operational.
This item is available in all modes.
Au (Auto), OFF
Default = Au
Display Description Range
Section Installer Ad
vanced
Actual
Setting
View Menu (2 of 2)
Display Description Range
Section Installer Ad
vanced
7
A
Boiler 7 Hours - The total running time of boiler 7 since this item was
last cleared.
To clear this item, press the ▲ and ▼ button simultaneously while
viewing this item. This item is available in mode 1 only.
0 to 1999 hr
8
A
Boiler 8 Hours - The total running time of boiler 8 since this item was
last cleared.
To clear this item, press the
▲
and
▼
button simultaneously while
viewing this item. This item is available in mode 1 only.
0 to 1999 hr
9
A
Boiler 9 Hours - The total running time of boiler 9 since this item was
last cleared.
To clear this item, press the
▲
and
▼
button simultaneously while
viewing this item. This item is available in mode 1 only.
0 to 1999 hr
