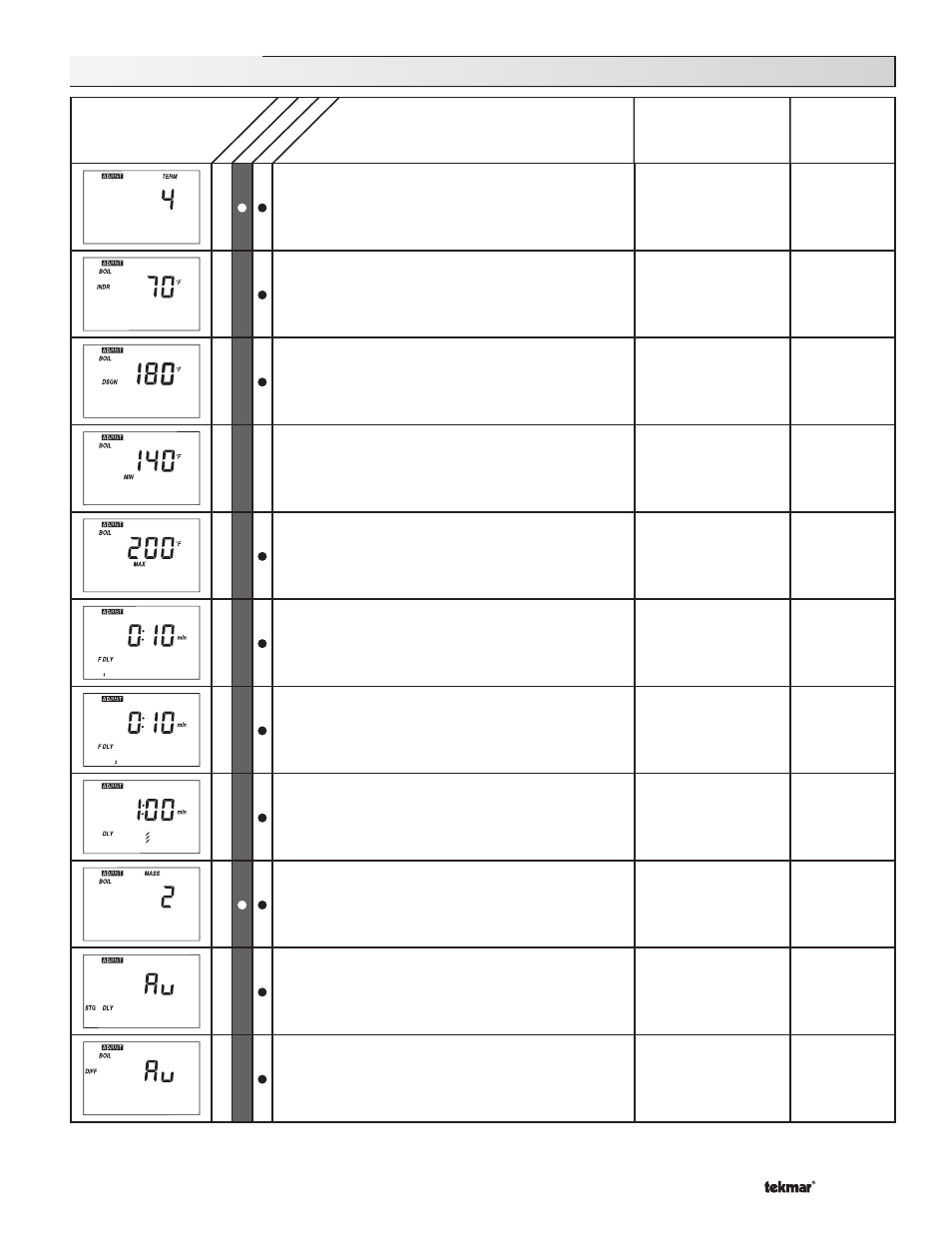

Adjust Menu (2 of 4)
Display Description Range
Section Installer Ad
vanced
Actual
Setting
D1
Terminal Unit - The type of terminal units that are
being used in the heating system.
1 (HRF1), 2 (HRF2),
3 (COIL), 4 (CONV),
5 (RAD), 6 (BASE)
Default = 4
D1
Boiler Indoor - The design indoor air temperature
used in the heat loss calculation for the heating
system. 35 to 100°F
(2 to 38°C)
Default = 70°F (21°C)
D1
Boiler Design - The design supply water temperature
used in the heat loss calculations for the heating
system. 70 to 220°F
(21 to 104°C)
Default = 180°F (82°C)
A
Boiler Minimum - The minimum allowed boiler target
temperature.
OFF, 80 to 180°F
(OFF, 27 to 82°C)
Default = 140°F (60°C)
A
Boiler Maximum - The maximum allowed boiler
target temperature.
120 to 225°F, OFF
(49 to 107°C, OFF)
Default = 200°F (93°C)
B1
Fire Delay 1 - The time delay the control can expect
between the time that the relay contact closes to fire the
first stage of the boiler and the burner actually fires. 0:00 to 3:00 minutes
(1 sec increment)
Default = 0:10 min
B1
Fire Delay 2 - The time delay the control can expect
between the time that the relay contact closes to fire the
third stage of the boiler and the burner actually fires.
This item is available in Mode 1 (Rotate / Off DIP
switch must be set to Off) and Mode 4.
0:00 to 3:00 minutes
(1 sec increment)
Default = 0:10 min
A
Combustion Air Damper Delay - The time allowed
for the combustion air damper to open before the first
stage is fired.
This item is only available if the Alarm / C.A. DIP switch
is set to C.A.
0:00 to 3:00 minutes
(1 sec increment)
Default = 1:00 min
B1
Boil Mass - The thermal mass characteristics of the
boilers that are being used. 1 (Lo), 2 (Med), 3 (Hi)
Default = 2
B1
Stage Delay - The minimum time delay between the
operation of stages.
Au (Auto), 0:30 to
19:55 min (5 second
increment)
Default = Au
B1
Boiler Differential - The temperature differential that
the control is to use when it is operating the boiler(s).
Au (Auto), 2 to 42°F
(Au, 1 to 23°C)
Default = Au
