U 162 - 08/07

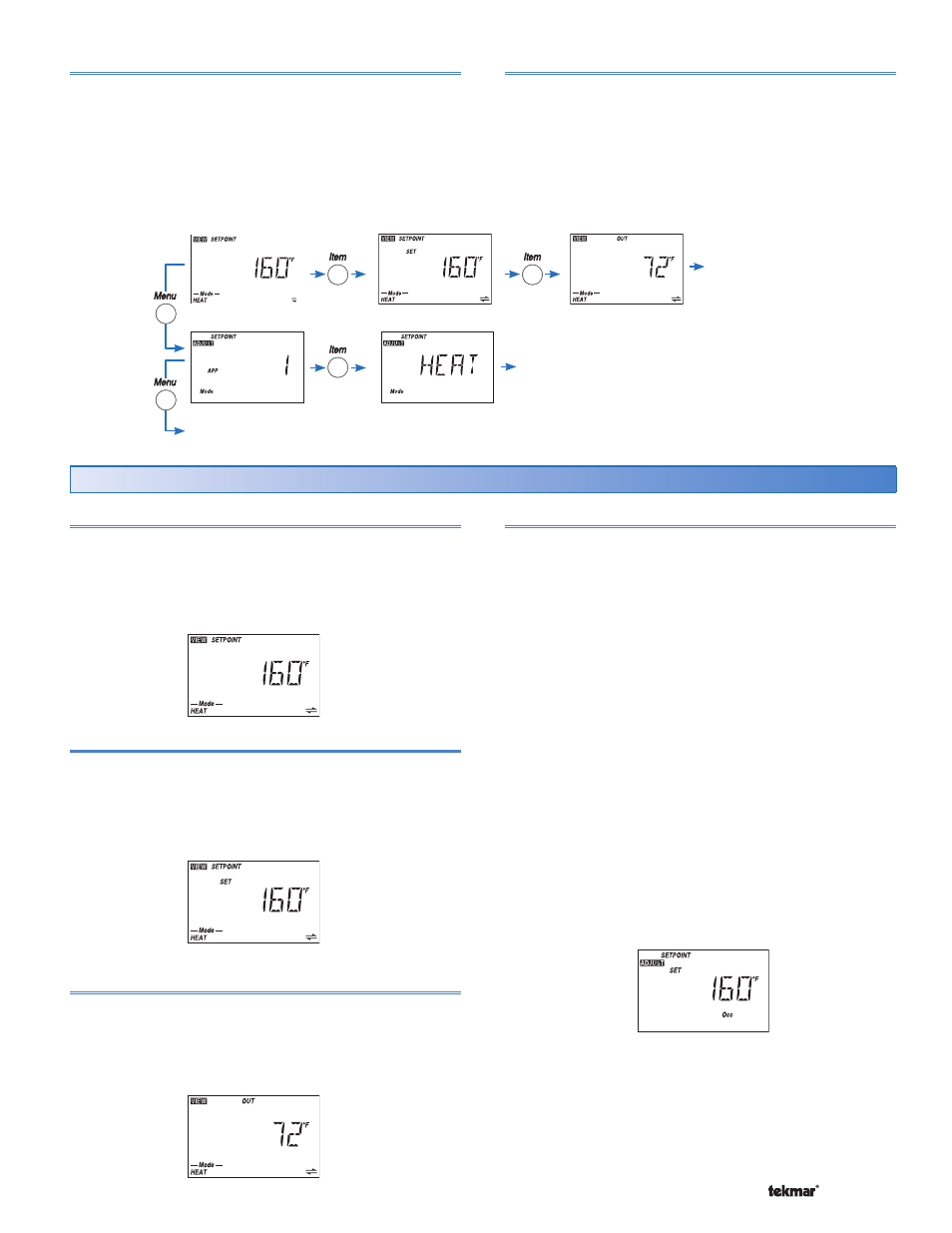

Adjustment

To make an adjustment to a setting in the setpoint
control:
1. Use the Menu button to select the appropriate menu.
2. Use the Item button to select the desired item.
3. Use the Up or Down button to adjust the setting.

Default Item

When you display an item in the View menu for more than
5 seconds it becomes the default item. After you navigate
other menus, the display reverts back to the default item
after 60 seconds of button inactivity.

The Time is the only exception. It can be displayed
indefinitely.

Setpoint Operation

View the Setpoint Temperature

The measured setpoint temperature is shown in the View
menu.
1. Press the Item button until the setpoint temperature is

located.

View the Set Setpoint Temperature

The desired setpoint temperature is shown in the View
menu.
1. Press the Item button until the set setpoint temperature

is located.

View the Outdoor Temperature

The outdoor temperature can be shown when the setpoint
control is connected to a tN4 system.
1. Press the Item button until the outdoor temperature is

located.

Adjust the Set Setpoint Temperature

The desired setpoint temperature can be changed while
in the Adjust menu.

When using a schedule, occupied and unoccupied
temperatures can be set.

In addition, when scenes are active, an away temperature
can be set.

Important: The setpoint control does not heat the setpoint
load when the temperature is set to OFF. The OFF setting
is not recommended if the setpoint load has the potential
to freeze.
1. Press the Menu button to enter the Adjust menu.
2. Press the Up or Down button to change the Set Setpoint

(Occupied) temperature.

3. Press the Item button to locate the Set Setpoint

Unoccupied temperature if necessary. Press the Up or
Down button to change the Set Setpoint Unoccupied
temperature.

4. Press the Item button to locate the Set Setpoint Away

temperature if necessary. Press the Up or Down button
to change the Set Setpoint Away temperature.

Continue to next Menu

Continue to next Item
