E-flite J-3 Cub 25 ARF User Manual

Page 33

background image

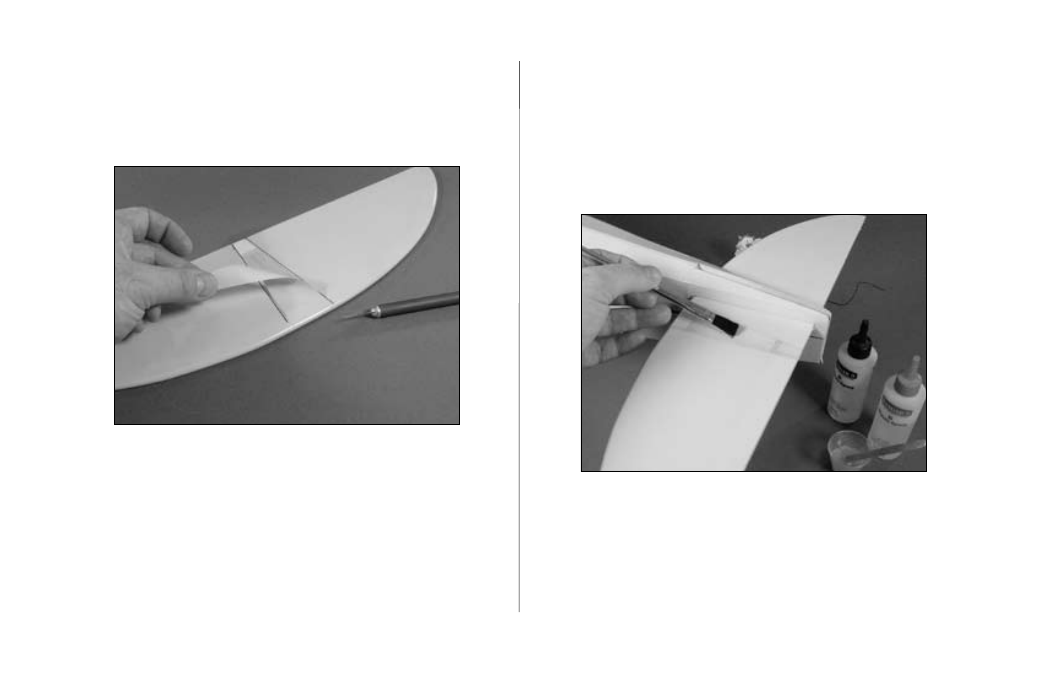

6. Mark the stabilizer so you know which is top and

bottom. Remove the stabilizer and use a hobby
knife with a new blade to cut the covering 1/16"
(1.5mm) inside the lines drawn in the last step.

Note:.Do.not.cut.into.the.wood.as.it.will.

weaken.the.stabilizer..A.soldering.iron.or.hot.

knife.can.be.used.instead.of.a.hobby.knife.

7. Slide the stabilizer partially into the fuselage.

Apply a thin layer of 6-minute epoxy onto the
exposed wood of the stabilizer, both top and
bottom. Slide the stabilizer into the fuselage and
clean up any excess epoxy using a paper towel
and rubbing alcohol.

33
