E-flite J-3 Cub 25 ARF User Manual

Page 23



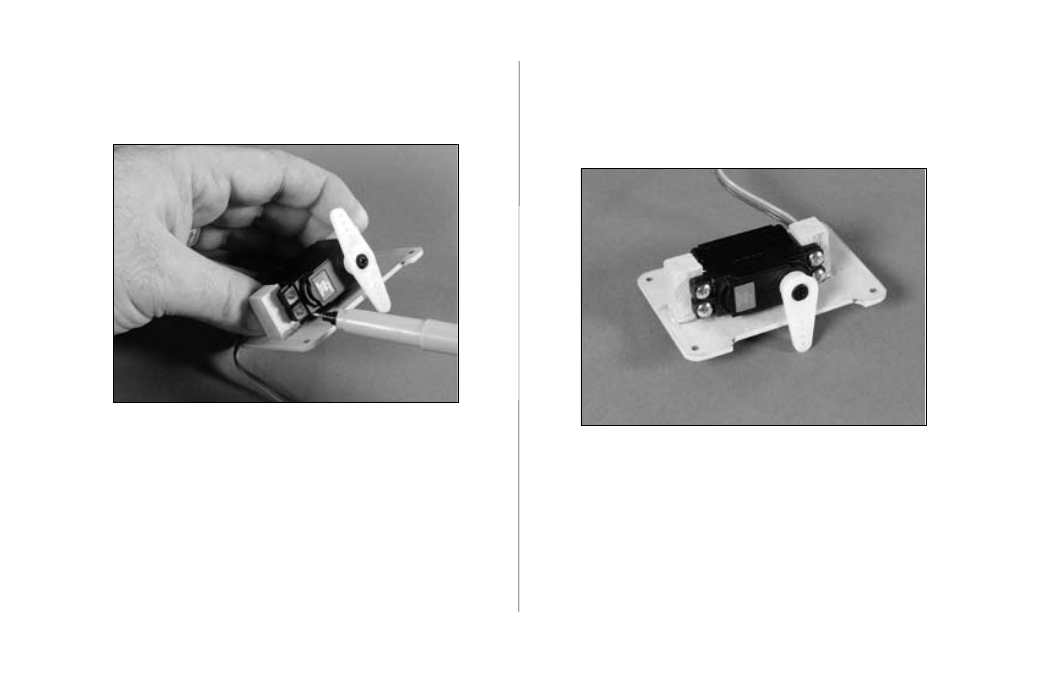

10. Place the servo into position between the

mounting blocks. Mark the location for the servo
mounting screws using a felt-tipped pen.

Note:.The.servo.should.not.rest.against.the.

hatch.to.isolate.it.from.vibrations.



11. Use a 1/16" (1.5mm) drill bit to drill the

holes in the servo mounting blocks for the screws.
Secure the servo using the screws provided with
the servo.

Note:.Make.sure.the.servo.is.centered.before.it.

is.completely.mounted.and.trim.the.servo.arm.

as.shown.
