Note:.Turn.on.the.transmitter.and.verify.all.trims.

and.sub-trims.are.centered..Next,.plug.in.the.

aileron.servo.and.verify.it.is.centered.for.the.

following.steps.

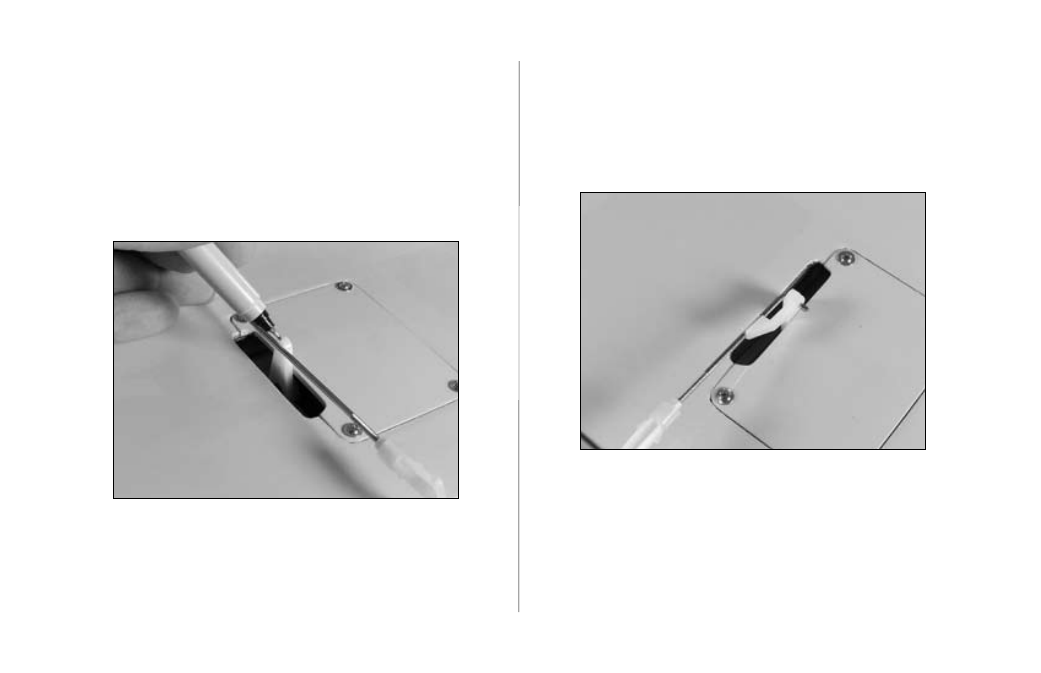

18. Mark the pushrod where it crosses the

control horn using a felt-tipped pen.

19. Bend the pushrod wire 90 degrees at the

mark made in the last step. Drill a 5/64" (2mm)
hole in the servo arm and pass the wire through
the hole. Secure the wire using a pushrod wire
keeper. Cut the excess wire using side cutters.

20. Repeat Steps 1 through 19 for the remaining

aileron and servo.
