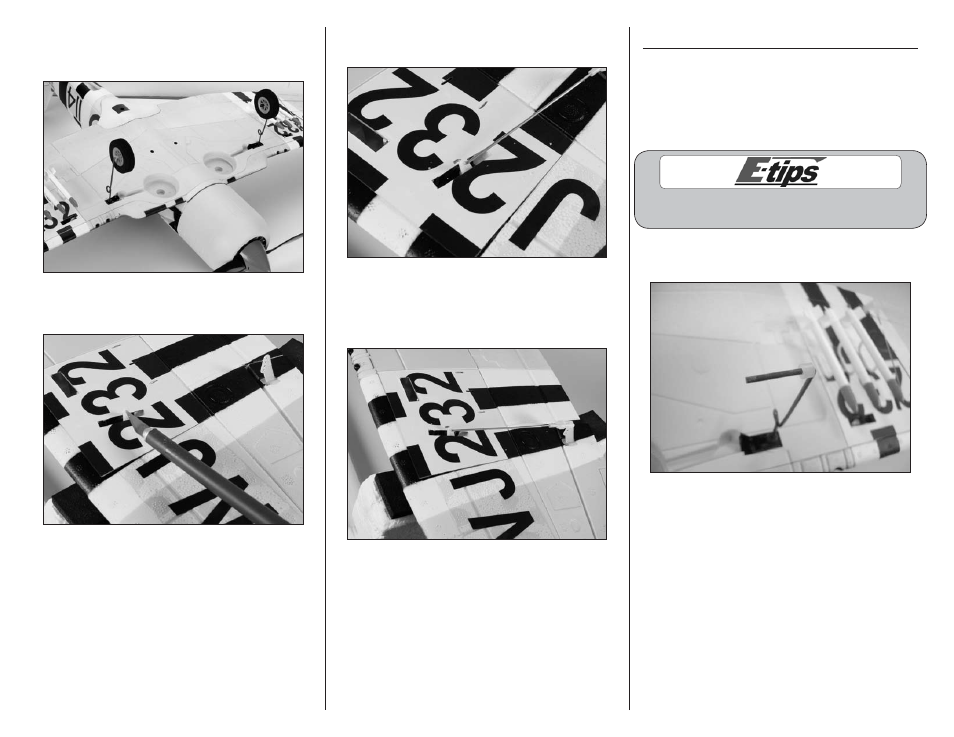

8. Carefully position the wing cover on the bottom
of the wing. Make sure to align the cover during
positioning.
9. Use a hobby knife to enlarge the outer hole on
the aileron servo arm to accept the aileron linkage.
10. Insert the Z-bend on the aileron linkage into the
outer hole of the aileron servo horn.
11. Connect the clevis of the aileron linkage to the
aileron control horn. With the radio on, it may be
necessary to adjust the length of the linkage so the
aileron is centered.
12. Repeat Steps 9 through 11 to connect the
remaining aileron linkage.
Main Wheel Installation
Required parts
Wheel spacer (2) Main wheel (2)
Wheel axle cap (2)
Required Tools and Adhesives
Medium CA
The wheel installation is the same for
both fixed gear and retracts.
1. Slide the wheel spacer onto the landing
gear axle.
