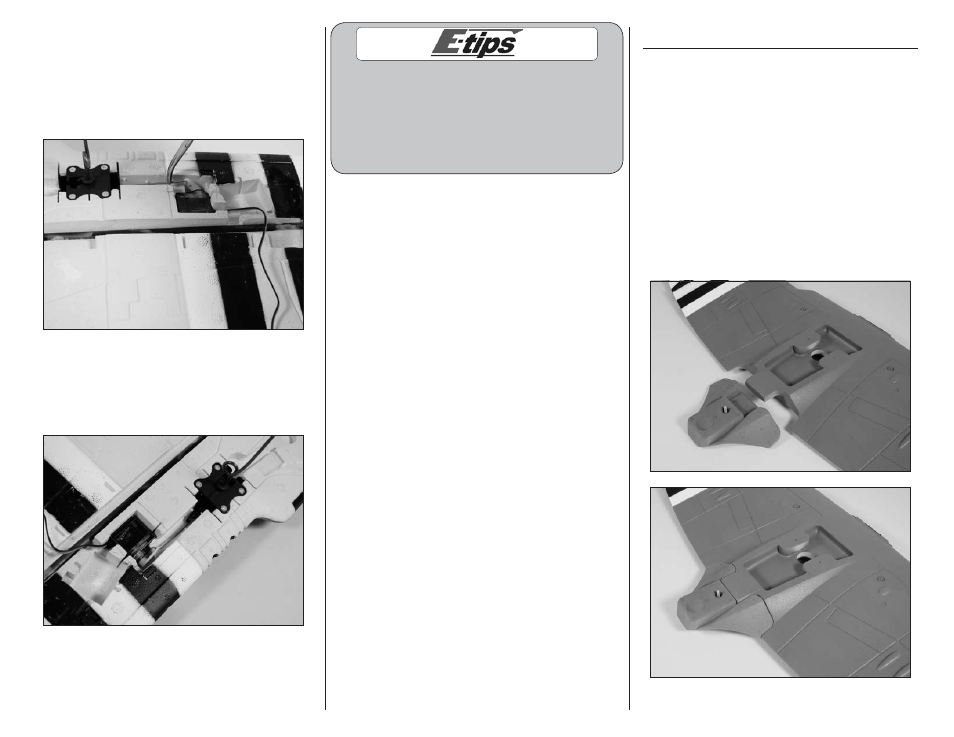

7 E-flite Hawker Sea Fury 480 ARF Assembly Manual
 6. Place the retract in the DOWN position and
use the radio to move the servo to the DOWN
position. Do not connect the linkage to the retract
servo at this time. Hold the linkage to the arm to
make sure the linkage aligns with the servo arm.
Adjust the end point at the radio to align the arm
with the linkage.
 7. Remove the servos once the end points have
been adjusted and attach the linkage to the servo.
Use a hobby knife to enlarge the hole in the servo
arm if needed. Peel the backing tape off of the
servo and mount it in position.
If you are using a 6-channel or more computer radio
you can use a separate channel for each of the retract
servos. Using two channels and mixing them together
will give you the option for independent adjustment
of the travel adjustment of each servo. If you are not
using a computer radio with mixing, you will need
to use a reversing Y-harness (EXRA320) instead.
 8. Repeat Steps 2 through 7 to install the remaining
retract and servo.
Aileron Servo Installation
Required parts
Aileron linkage with clevis and keeper (2)
Servo (2)
Double-sided tape (2 pcs)
Wing extension Wing
6-inch (152mm) extension
9-inch (228mm) extension (2) (for optional retracts)
Required Tools and Adhesives
Hobby knife Medium CA
Phillips screwdriver: #0
 1. Locate the wing extension and test fit it to the
rear of the wing. Use medium CA to glue the
extension directly to the wing.
