15 E-flite Hawker Sea Fury 480 ARF Assembly Manual

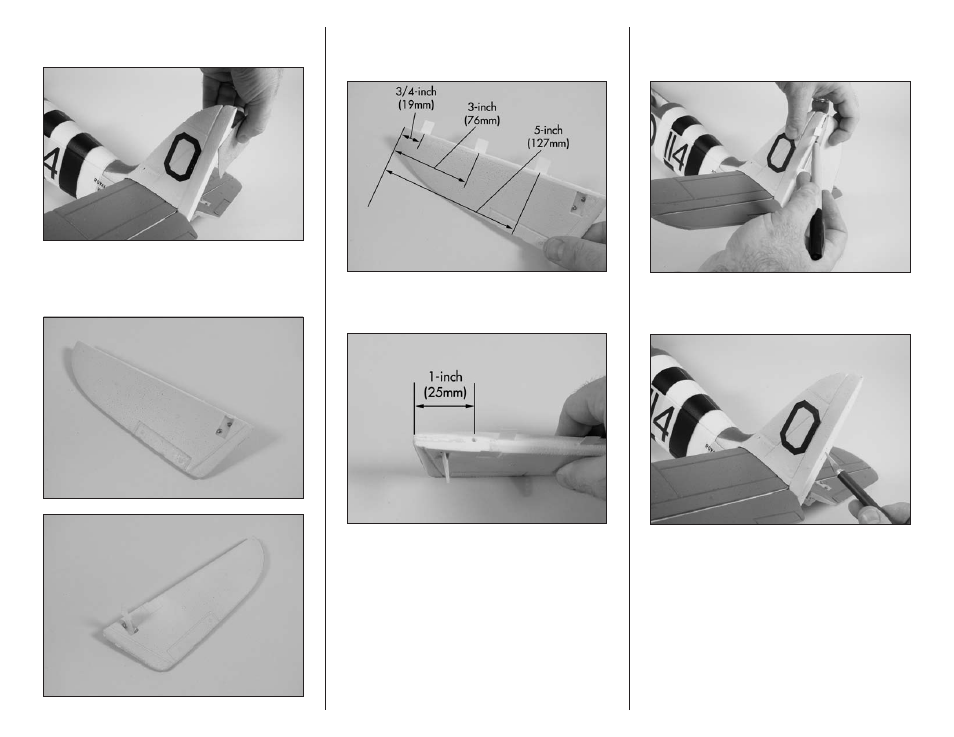

 2. Use sandpaper to remove any irregularities from
the fin and rudder.
 3. Mount the control horn to the rudder as shown
using two 2mm x 10mm sheet metal screws, control
horn backplate and a #1 Phillips screwdriver.
 4. Cut slots in the rudder for the three rudder
hinges. Use thin CA to glue the hinges half-way
into the rudder as shown.
 5. Use a pin drill and 1/8-inch (3mm) drill bit to
drill a hole for the tail gear wire in the rudder.
 6. Hold the rudder against the fin and use a felt-
tipped pen to transfer the location of the hinges
to the fin.
 7. Use a hobby knife to cut the slots for the rudder
hinges in the fin.
