19 E-flite Hawker Sea Fury 480 ARF Assembly Manual

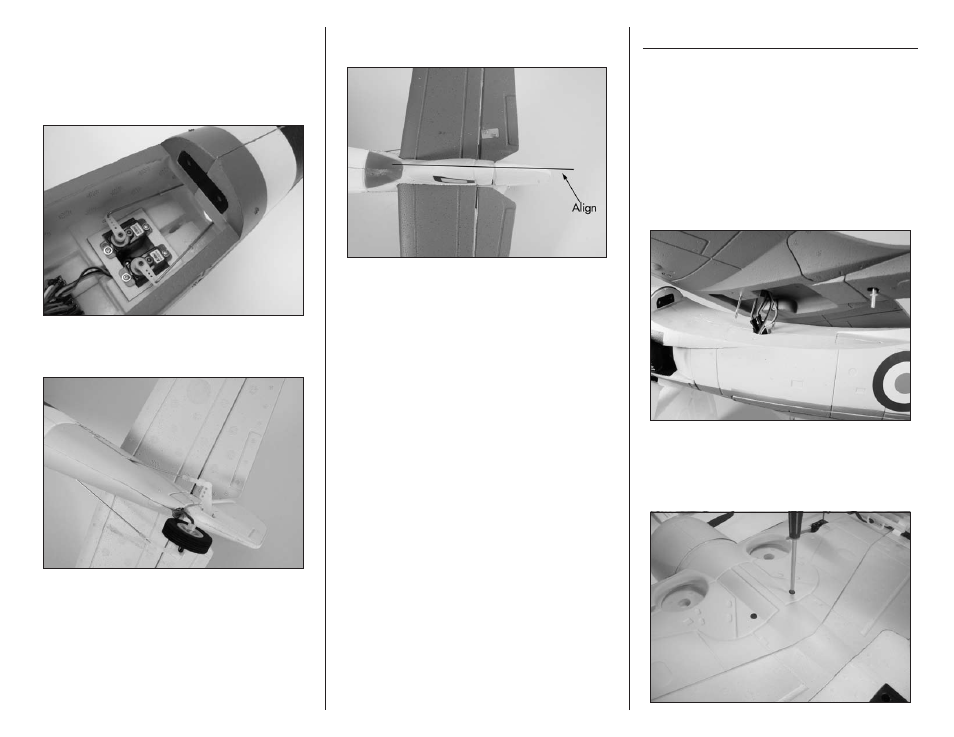

 12. Remove the clevis from the 13 9 /
16
-inch
(345mm) pushrod. Slide the pushrod into the
preinstalled tube in the fuselage. Connect the bend
in the pushrod to the rudder servo horn. Position
the horn so the angle between it and the servo is
90 degrees. Secure the horn to the servo.
 13. Thread the clevis back on the pushrod wire.
Connect the clevis to the rudder control horn.
 14. With the radio system on, adjust the position of
the clevis so the rudder is parallel to the fin.
Final Assembly
Required parts
Rocket (6) 3mm x 45mm machine screw (2)
Battery stop Canopy
Required Tools and Adhesives
Phillips screwdriver: #1
 1. Connect the aileron servo extensions to the
aileron servos. The retract leads will pass into
the fuselage and connect to the receiver with a
reversing Y-harness.
 2. Secure the wing using two 3mm x 45mm
machine screws in the center of the wing, and the
pre-installed screw at the trailing edge of the wing.
Use a #1 Phillips screwdriver to tighten the screws.
