E-flite Hawker Sea Fury 480 ARF User Manual
Page 13
13
E-flite Hawker Sea Fury 480 ARF Assembly Manual

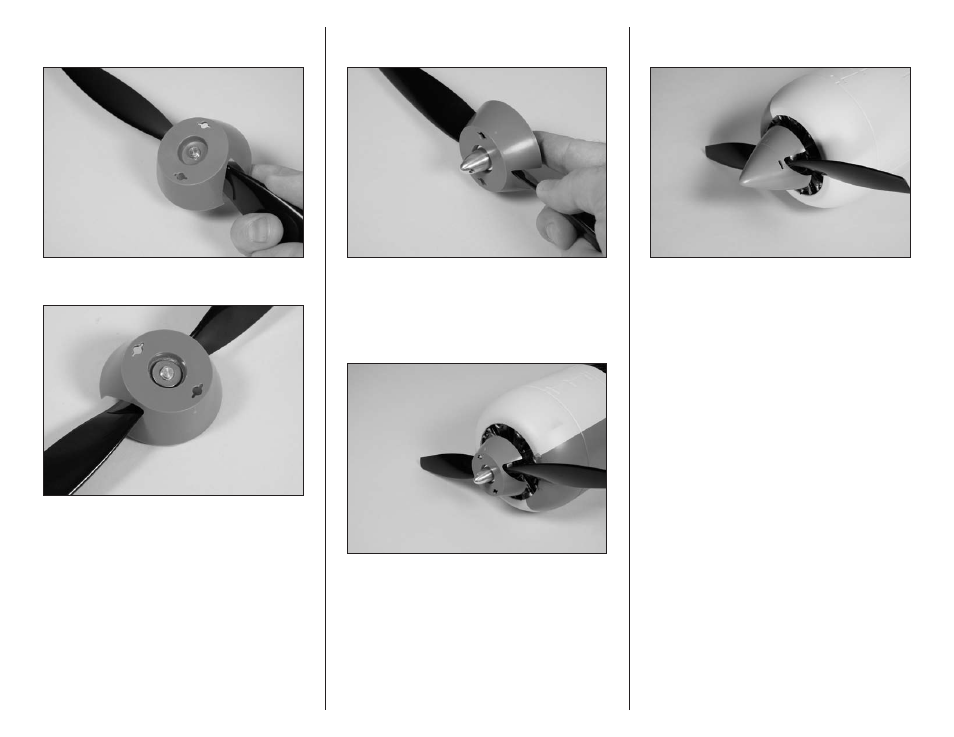

14. The spinner backplate is then placed on
the adapter.
15. Next, slide the supplied washer onto the adapter.
16. Install the adapter nut, but do not tighten it
at this time.
17. Place the spinner assembly on the motor shaft.
Check that the positioning of the assembly will
allow the backplate and propeller to spin without
rubbing on the cowling. Tighten the adapter nut
once all is well.
18. Snap the spinner cone onto the spinner
backplate to complete the motor assembly.
