18 E-flite Hawker Sea Fury 480 ARF Assembly Manual

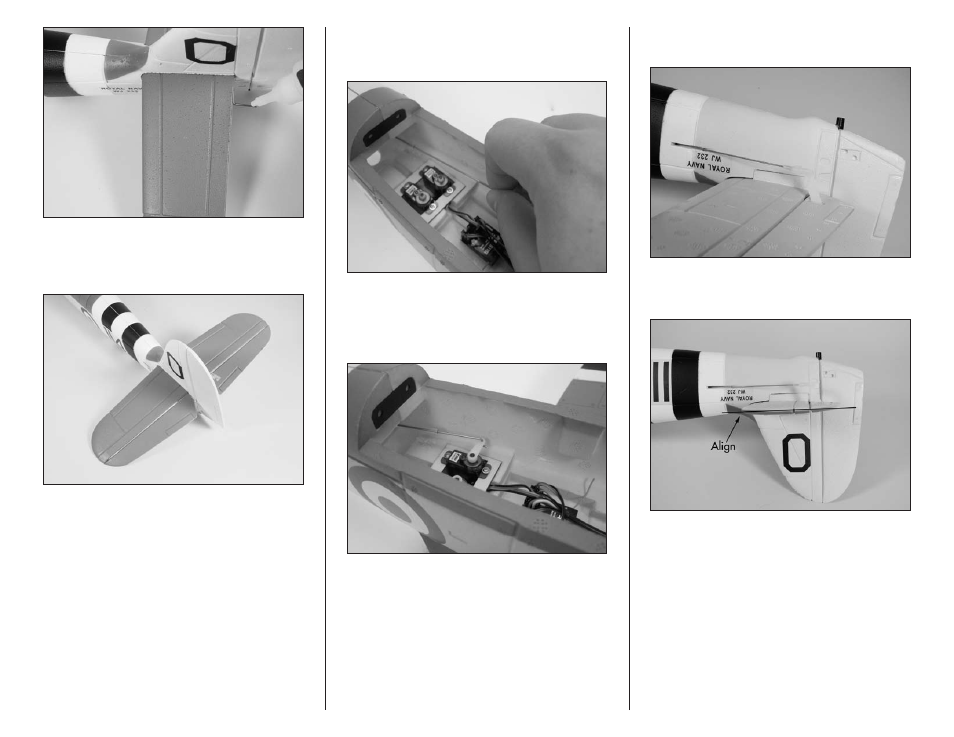

 7. Attach both elevator halves to the stabilizer.
Remember to work quickly to avoid having the CA
cure before the elevator installation is complete.
 8. Remove the clevis from the 13 7 /
32
-inch (335mm)
pushrod. Slide the pushrod into the preinstalled
tube in the fuselage.
 9. Connect the bend in the pushrod to the
elevator servo horn. Position the horn so the
angle between it and the servo is 90 degrees.
Secure the horn to the servo.
 10. Thread the clevis back on the pushrod wire.
Connect the clevis to the elevator control horn.
 11. With the radio system on, adjust the position of
the clevis so the elevator is parallel to the stabilizer.
