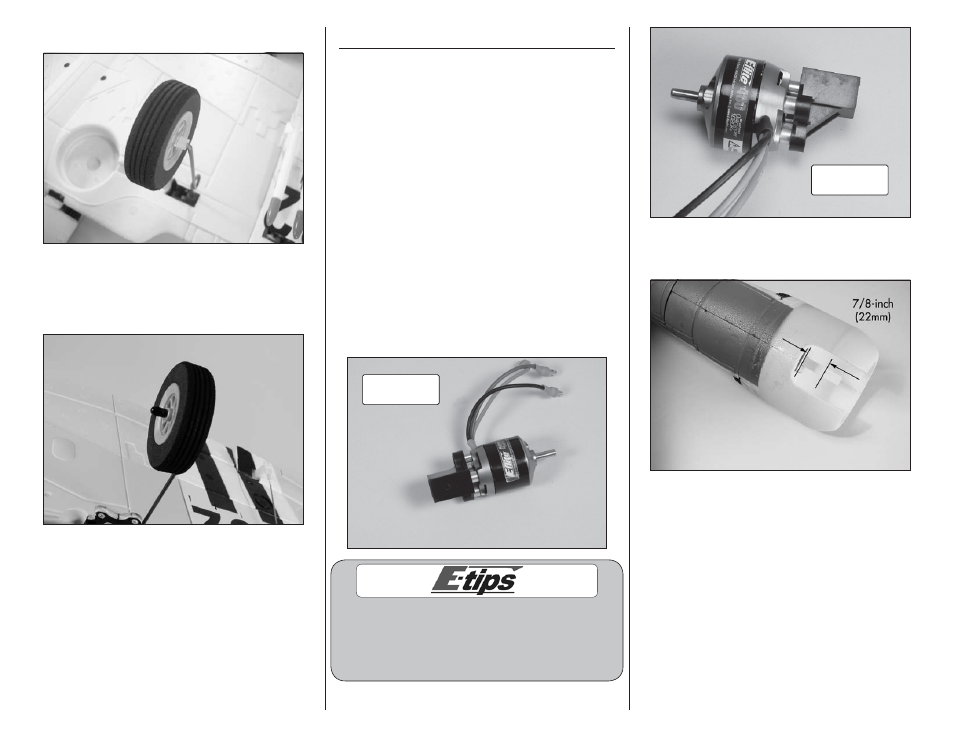

10 E-flite Hawker Sea Fury 480 ARF Assembly Manual
 2. Slide the wheel onto the landing gear axle.
 3. Secure the wheel using the wheel axle cap and
medium CA. Use care not to get CA between the
landing gear and wheel, which will prevent the
wheel from rolling.
 4. Repeat Steps 1 through 3 to install the
remaining wheel.
Motor and Cowling Installation
Required parts
Motor mount 6-inch (152mm) servo extension
Propeller Electronic speed control
Spinner cone Spinner washer
Spinner backplate Motor with accessories
1/8-inch (3mm) spacer (4)
1.5mm x 10mm self-tapping screw
6-inch (152mm) battery extension
3mm x 10mm machine screw (4)
Required Tools and Adhesives
Razor saw Phillips screwdriver: #00, #1
 1. Attach the Park 450 motor to the mount using
a #1 Phillips screwdriver and four 3mm x 10mm
machine screws and the four 1/8-inch (3mm)
spacers as shown. Use threadlock on the screws to
prevent the vibrations of the motor from loosening
the screws.
Park 450
When installing the Park 480 motor, use a #1
Phillips screwdriver, four 3mm x 10mm machine
screws and the four 1/8-inch (3mm) spacers as
shown. Use threadlock on the screws to prevent the
vibrations of the motor from loosening the screws.
Park 480
 2. Use a razor saw to cut the length of the motor
mounting stick to 7/8-inch (22mm) as shown below.
