Mounting the USA Series
Banner USA Series Protective Mounting Stands may mount directly to a wall or post,
to the machine frame, or to the accessory base listed below. They may be used
individually, or in pairs, to provide maximum protection. When used in pairs, the two
stands form a U-configuration, with the sensor recessed well back from the front of
the stand.

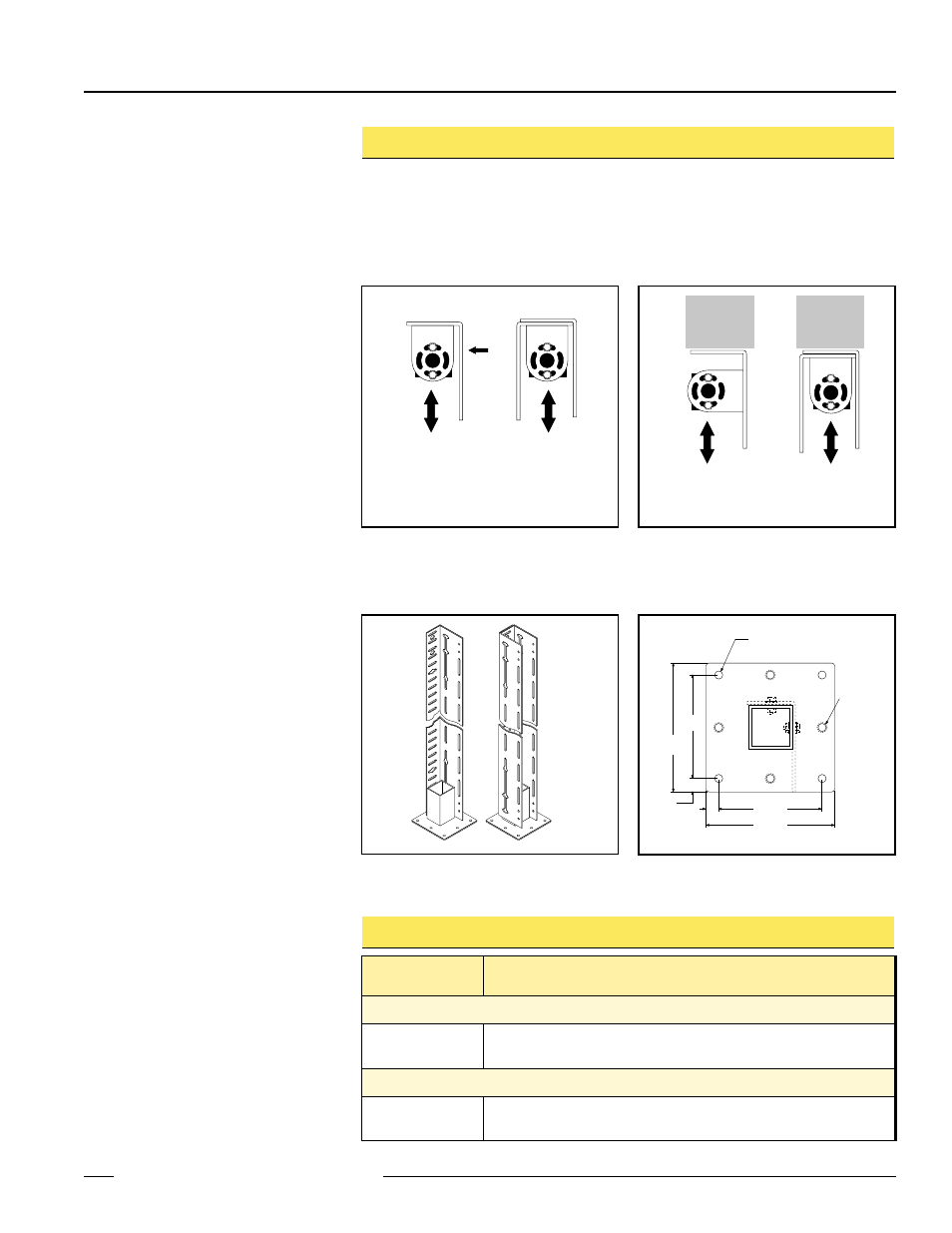

Figure 2. One Protective Stand protects
back and one side of sensor; or mount two
together to form a U-channel to protect all
sides
This surface
towards the
source of
material
or path of
object
Emitted Light
Path
Emitted Light
Path
Machine Frame,
Building wall/
column,or other
surface*
Machine Frame,
Building wall/
column,or other
surface
Emitted Light
Path
*This configuration works only for
MICRO-SCREEN sensors
Emitted Light
Path
Figure 3. Mounts to wall, column, machine
frame or other surface, with sensor against
either of the two sides
Figure 4. Mounts to steel Floor-Mounting
Base (sold separately, hardware included with
base) Figure 5. Model MSA-SB-1 Floor-Mounting
Base dimensions
M10 x 1 mm
for
leveling
bolts
(4 supplied)
Clearance holes for
M8 or 5/16" bolts for bolting stands
to floor (4) (bolts not supplied)
127 mm
(5.0")
102 mm
(4.0")
13 mm
(0.5")
13 mm
(0.5")
102 mm
(4.0")
127 mm
(5.0")
USA Series Accessories
Model Number Description
Base
MSA-SB-1
Floor-Mounting Base with hardware
(order one per stand or U-configuration pair of stands)
Brackets
MSMB-4
Brackets for mounting MINI-SCREEN or MINI-ARRAY
(order one per sensor)
