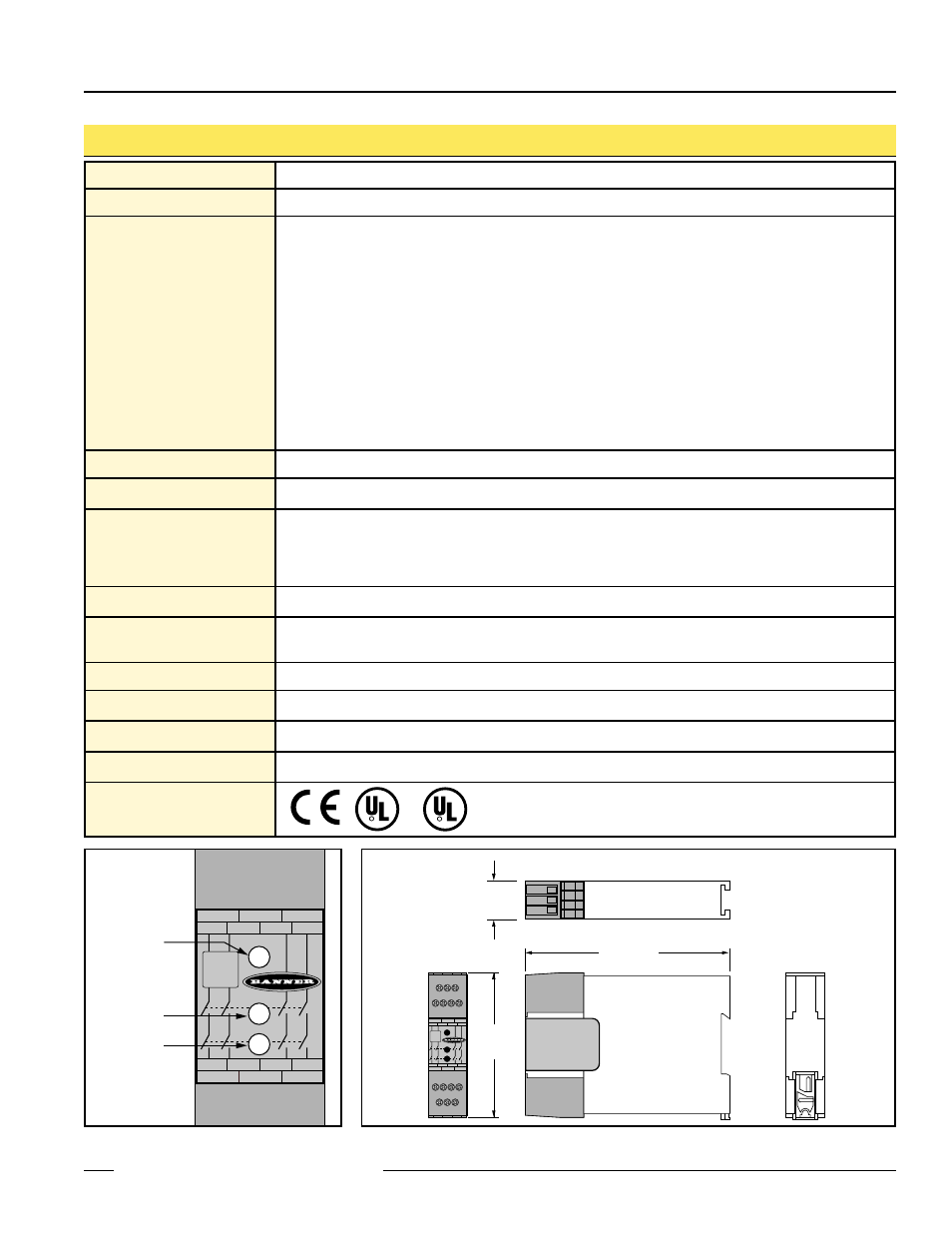

Page 3: Figure 2. extension module enclosure dimensions, Figure 1. em-t-7a status indicators certifications
Extension Module –
Model EM-T-7A
page
3
Banner Engineering Corp. • Minneapolis, U.S.A.
Website: http://www.baneng.com • Tel: 888.373.6767
Supply Protection Circuitry
Application Notes
There are no adjustments and no user-serviceable parts. See page 6 for information regarding repair service.
Protected against transient voltages and reverse polarity
Output Configuration
Four output channels:
Each channel is a series connection of two forced-guided (positive-guided) relay contacts –
AgNi, gold-flashed
Contact ratings:
Maximum voltage: 250V ac/dc
Maximum current: 6 A ac/dc
Minimum current: 30 mA @ 24V dc
Maximum power: 1500VA, 200 W
Mechanical life: 50,000,000 operations
Electrical life: 100,000 at full resistive load
Feedback contact rating (Y1-Y2): 24V dc @ 0.5A
NOTE: Transient suppression is recommended when switching inductive loads. Install suppressors
across load. Never install suppressors across output contacts (see Warning, page 5).
Output Response Time
20 milliseconds maximum (if channel u-k fails, maximum response time is 200 milliseconds)
Status Indicators
3 green LED indicators:
Power ON
K1 energized
K2 energized
Input Requirements
Inputs from Primary Safety Device must each be capable of switching 30 to 250mA @ 13 to 28V dc.
Construction
Polycarbonate housing.
Mounting
Mounts to standard 35 mm DIN-rail track.
Vibration Resistance
10 to 55Hz @ 0.35 mm displacement per IEC 68-2-6
Operating Temperature
0° to +50°C (+32° to 122°F)
Supply Voltage and Current
A1-A2: 24V dc, +/-15%, 10% maximum ripple
Model EM-T-7A Specifications
Environmental Rating
Rated NEMA 1, IEC IP20. Extension Module must be installed inside an enclosure rated NEMA 3 (IEC
IP54), or better.
K2
K1
Machine
Safety
EM-T-7A
13
A1
Y1
K1
23
33
43
Power
Ch.1
Ch.2
U
Y2
A2
14
24
34
44
118.0 mm
(4.65")
84.0 mm
(3.31")
22.5 mm
(0.89")
Figure 2. Extension Module enclosure dimensions
K2
K1
Machine
Safety
EM-T-7A
13
A1
Y1
K1
23
33
43
Power
Ch.1
Ch.2
U
Y2
A2
14
24
34
44
Input Power
ON
K1 Energized
K2 Energized
Figure 1. EM-T-7A status indicators
Certifications
R
R
C
