Installation of Base and Pole
1) Refer to Figure 2. The base is secured to the floor or other flat surface using
5/16" or M8 hardware, supplied by the installer. Place the base on its mounting
hardware, but do not tighten. Install an M10 leveling bolt (supplied) into each of
the four threaded holes for leveling purposes.
2) Using the post level (supplied), adjust the leveling bolts for true vertical level.
Continue to check the vertical level of each pole while tightening the base
mounting hardware.
* Extra screws and T-nuts are included to accommodate mounting of center bracket used
with longer MICRO-SCREEN® Sensors.
NOTE: Adapter bracket EZA-MBK-2 is required for mounting EZ-SCREEN™ or MACHINE-
GUARD™ sensors, or SSM-Series mirrors. Refer to the data sheets for those products
for more information.
127 mm
(5.0")
127 mm
(5.0")
102 mm
(4.0")
51 mm
(2.0")
44.5 mm
(1.75")
Square
51 mm
(2.0")
10º
10º
45º
13 mm
(0.5") ø127 mm (5.0")
102 mm
(4.0")
4x 0.397"
4x 0.397"
4x M10 x 1.0

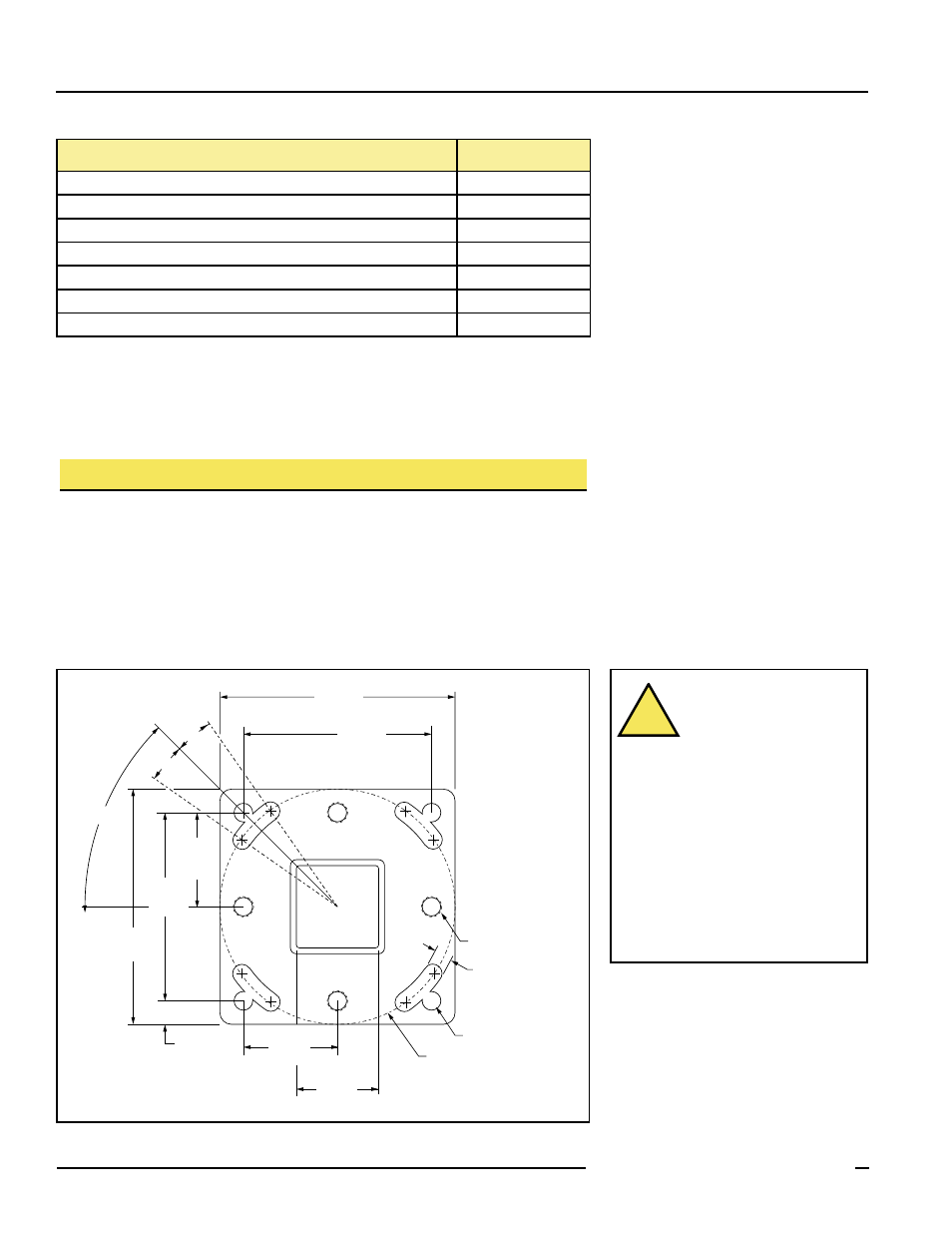

Figure 2. Stand base mounting hole pattern
WARNING . . .
Maintain Required
Separation Distance
The light screen produced
by the optical safety system sensors
must be placed at a minimum safe
distance from the dangerous motion
of the machine being guarded. This
necessary minimum distance is called the
separation distance, and is discussed in
Section 3 of the appropriate instruction
manuals. Failure to calculate this
distance correctly and to maintain
minimum separation distance can result
in serious injury or death.
!
Included with Each MSA Series Stand Quantity
Clear anodized extruded aluminum pole 1
Black epoxy-painted welded steel base assembly 1
Post level 1
Black zinc-plated steel adapter plate 2
M10 x 1 x 18 mm-long slotted/Phillips hex head bolt 4
M4 x 0.7 x 10 mm-long slotted hex head screw 12*
M4 “T” nut 8*
