Specifications
Emergency Stop Push Button
Mechanical Life
300,000 operations
Operating Force
0.8 kg
Environmental rating
IP65; NEMA 4, 13
Operating Temperature
–25 °C to 60 °C (–13 °F to 140 °F)
Mounting Adapter
Plastic button: The adapter is fixed to the mounting surface using
incorporated screws (Tmax = 0.6 Nm)
Metal button: The adapter is fixed to the mounting surface using
incorporated screws (Tmax = 0.8 Nm)
Construction
Plastic parts: Polyamide and polycarbonate
Metal parts: Aluminum and zinc alloy
Certifications
Compliant with EN/IEC 60497-1; -5-1
Contacts
European Rating
Utilization categories: AC15 and DC13
Ui = 690 V ac
Ith = 10 A
UL designation = A 600 Q600
Mechanical Life
1,000,000 operations
Connections
(1 or 2) 12 AWG (2.5 mm²) maximum wire size
Construction
Polyamide and polycarbonate
Environmental rating
IP20
Operating Temperature
IP20
Operating Temperature
–25 °C to 60 °C (–13 °F to 140 °F)
Certifications
Compliant with EN/IEC 60497-1; -5-1

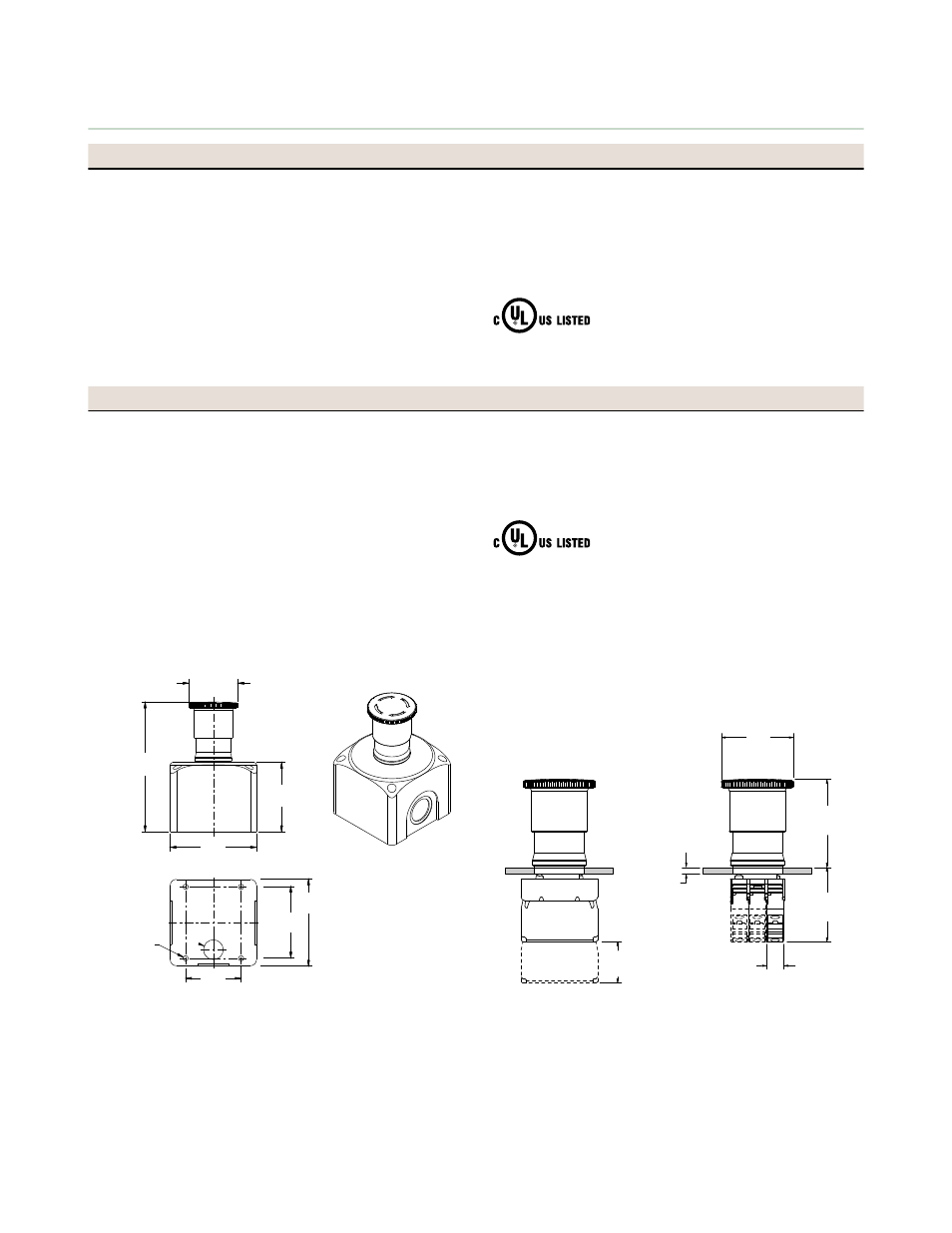

Dimensions
39.9 mm dia
[1.57”]
56 mm
[2.2”]
70 mm
[2.76”]
104.9 mm
[4.13”]
58 mm
[2.28”]
45 mm
[1.77”]
4.3 mm dia
[0.1693”]
70 mm
[2.76”]
Figure 4. SSA-EBM-xxE and EBP-xxE Series E-Stop Buttons
40
[1.6"]
10
[0.4"]
50
[1.97"]
43
[1.7"]
23
[0.9"]
1-6 Max
[0.04 - 0.24"]
ADD-ON
Elements
Figure 5. SSA-EBM-xxL and EBP-xxL Series E-Stop Buttons
