Maintenance
At machine set up, a Designated Person 1 should test each emergency stop push button for proper machine shutdown
response.
The Designated Person should check the emergency stop buttons for proper operation, physical damage, button looseness,
and excessive environmental contamination. This should take place on a periodic schedule determined by the user, based
on the severity of the operating environment and the frequency of switch actuations
Adjust, repair, or replace components as needed. If inspection reveals contamination on the switch, thoroughly clean the
switch and eliminate the cause of the contamination. Replace the switch and/or appropriate components when any parts or
assemblies are damaged, broken, deformed, or badly worn; or if the electrical/mechanical specifications (for the
environment and operating conditions) have been exceeded.
Always test the control system for proper functioning under machine control conditions after performing maintenance,
replacing the emergency stop device, or replacing any component of the device.

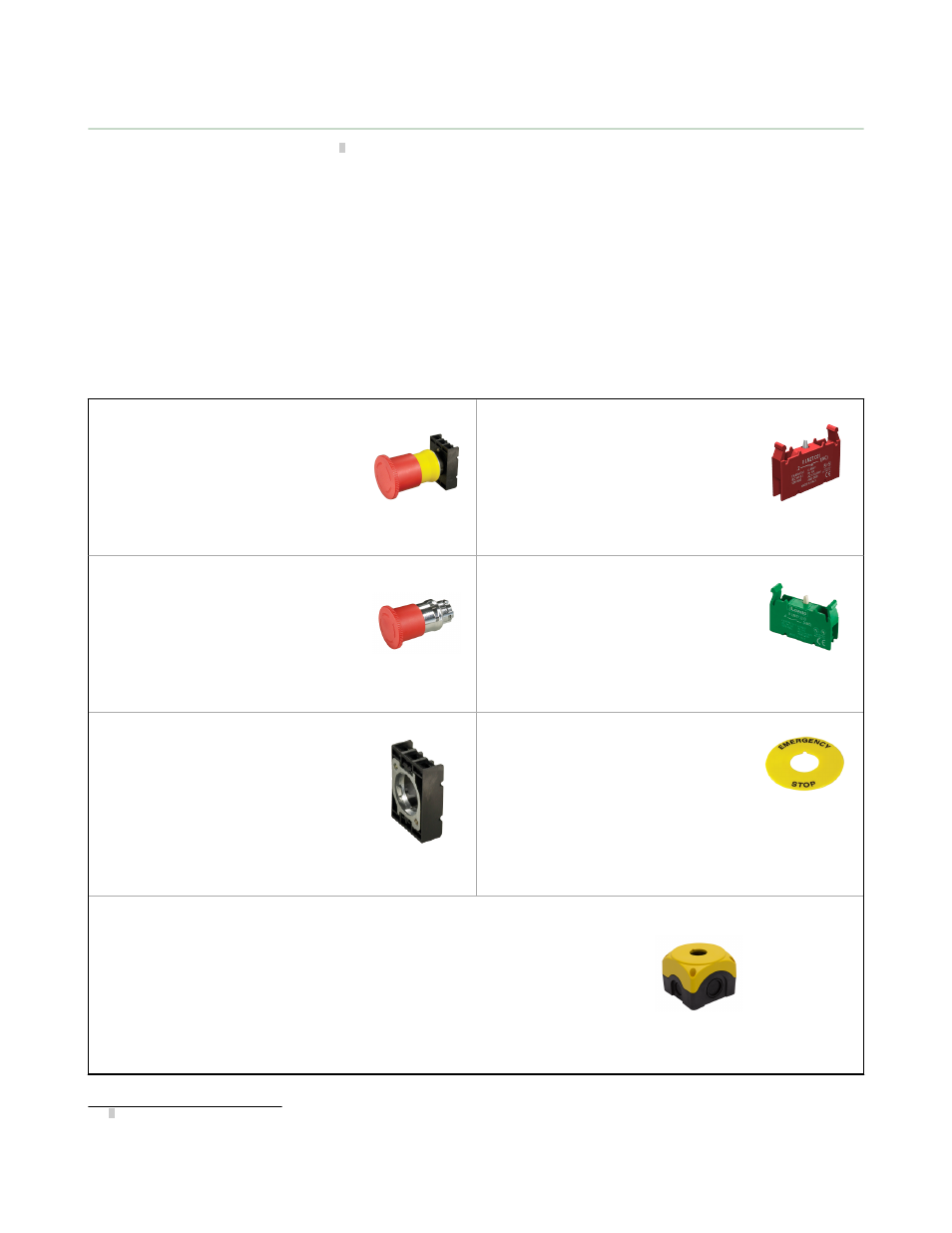

Replacement Parts
8-LP2T-B6644
• 22.5 mm plastic button (mounting
adapter sold separately)
• Twist to release, mechanical latching
ISO 13850 (EN 418) compliant
• Diameter 40 mm (without mounting
adapter)
8-LM2T-C01
• Normally closed (N.C.) positively
driven contact element
• Direct (positive) opening operation
per IEC/EN 60947-5-1
8-LM2T-B6644
• 22.5 mm metal button (mounting
adapter sold separately)
• Twist to release, mechanical latching
ISO 13850 (EN 418) compliant
• Diameter 40 mm (without mounting
adapter).
8-LM2T-C10
Normally open (N.O.) auxiliary contact
element
8-LM2T-AU120
Metal mounting adapter for metal button
8-LM2T-AU115
• 60 mm diameter
• Non-adhesive plastic legend with
“Emergency Stop” inscription
LPZP1A5
• Compact size - 70mm x 70mm x 56mm (2.7” x 2.7” x 2.2”)
• One 22mm hole (with key way) for installation of emergency stop palm/push button
• Maximum of three contact blocks
• Polycarbonate construction
• Wire entry via three sides (M16, M20 or M25) or the bottom (M16)
• Environmental rating: IP66, IP67 and IP69K (with proper installation and rated button)
• Mounting hole location (x4) - 45mm x 58mm
1 A Designated Person is identified in writing by the employer as being appropriately trained to perform a specified checkout procedure. A Qualified Person
possesses a recognized degree or certificate or has extensive knowledge, training, and experience to solve problems relating to the emergency stop
installation (reference ANSI B30.2).
SSA-EB Series Emergency Stop Buttons
