MSA-TE Series Tubular Enclosures
2
P/N 109307 rev. B
Banner Engineering Corp.
•
Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164
L1
L2
L3
16.8 mm
(0.66")
L4
Y
X
86.4 mm
(3.40")
Included with Each
MSA-TE Series Tubular
Enclosure
Quantity
Spacer
1
Top End Cap
1
Bottom End Cap
1
Polycarbonate Tube
1
O-Ring (#142)
2
Mounting Bracket
2
M4 Screw
2
M4 Lockwasher
2
#6-32 Screw
8
#6 Split Ring Lockwasher
8
#10-32 Screw
4
#10 Lockwasher
4

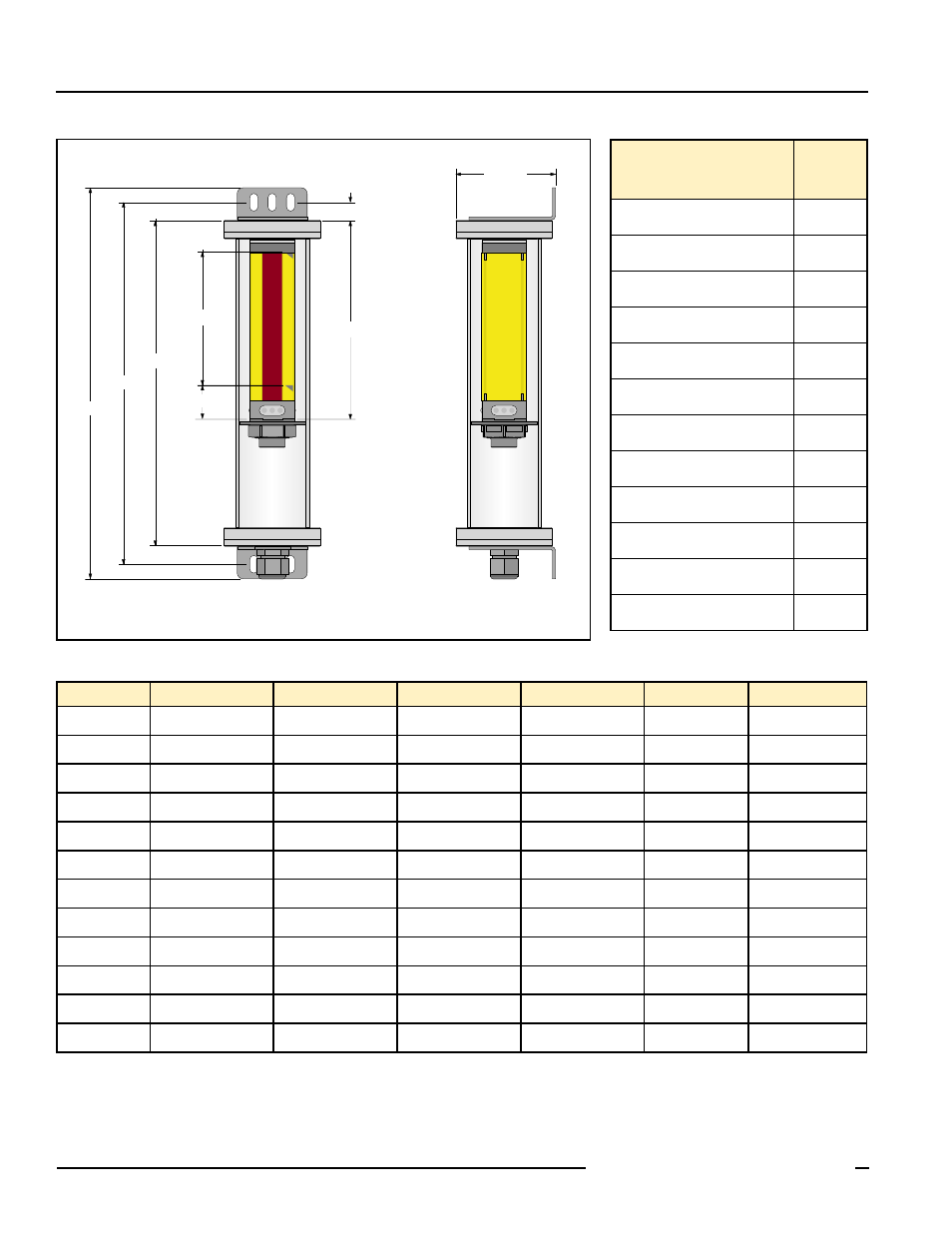

Figure 2. Enclosure/MINI-SCREEN dimensions
Model
L1
L2
L3
L4
X
Y
MSA-TE-4
338 mm (13.3
"
)
312 mm (12.3
"
)
279 mm (11.0
"
)
170 mm (6.7
"
)
28 mm (1.1
"
)
114 mm (4.5
"
)
MSA-TE-8
439 mm (17.3
"
)
414 mm (16.3
"
)
381 mm (15.0
"
)
272 mm (10.7
"
)
28 mm (1.1
"
)
215 mm (8.5
"
)
MSA-TE-12
541 mm (21.3
"
)
516 mm (20.3
"
)
483 mm (19.0")
373 mm (14.7")
30 mm (1.2
"
)
305 mm (12
"
)
MSA-TE-16
643 mm (25.3")
617 mm (24.3
"
)
584 mm (23.0")
475 mm (18.7")
30 mm (1.2")
406 mm (16")
MSA-TE-20
744 mm (29.3")
719 mm (28.3")
686 mm (27.0")
577 mm (22.7")
30 mm (1.2")
508 mm (20")
MSA-TE-24
846 mm (33.3")
820 mm (32.3")
787 mm (31.0")
678 mm (26.7")
30 mm (1.2")
610 mm (24")
MSA-TE-28
947 mm (37.3")
922 mm (36.3")
889 mm (35.0")
780 mm (30.7")
33 mm (1.3")
711 mm (28")
MSA-TE-32
1049 mm (41.3")
1024 mm (40.3")
991 mm (39.0")
879 mm (34.6")
33 mm (1.3")
813 mm (32")
MSA-TE-36
1151 mm (45.3")
1125 mm (44.3")
1092 mm (43.0")
980 mm (38.6")
33 mm (1.3")
914 mm (36")
MSA-TE-40
1252 mm (49.3")
1227 mm (48.3")
1194 mm (47.0")
1082 mm (42.6")
33 mm (1.3")
1016 mm (40")
MSA-TE-44
1354 mm (53.3")
1328 mm (52.3")
1295 mm (51.0")
1184 mm (46.6")
33 mm (1.3")
1118 mm (44")
MSA-TE-48
1455 mm (57.3")
1430 mm (56.3")
1397 mm (55.0")
1285 mm (50.6")
33 mm (1.3")
1219 mm (48")
