INSTALLATION INSTRUCTIONS
6006 Instructions 9-11-13.doc
Page 1 of 2
10- to 16-pin Mirror Adapter Harness
Kit # 9002-6006A
This jumper harness allows for installation of 9002-9510, 9002-9511, 9002-9515, 9002-9516, or 9002-9603
mirrors into GM vehicles equipped with a 10-pin inline mirror connector.
For current list of GM vehicles with a 10 pin connector, please download the latest application guide at
www.brandmotion.com/docs2/rvsappguide.pdf
Step 1. Remove existing mirror along with the mirror harness cover, if equipped, and expose the 10 pin
connector.
Step 2. Connect the vehicle’s 10-pin connector to the 10-pin female connector of 9002-6006A.harness.
Step 3. Follow 9002-9510, 9002-9511, 9002-9515, 9002-9516 or 9002-9603 mirror instructions to ensure
the and video leads from the harness provided in the mirror kits are inserted into the correct cavities of
the 16-pin male connector.
Step 4. Use a digital multimeter to ensure that 16-pin connector Pins 8 (Ground), 9 (Reverse +), and 13
(Ignition+) are active.
Step 5. Connect the 16 pin connector of the 9002-6006A harness to the mirror.

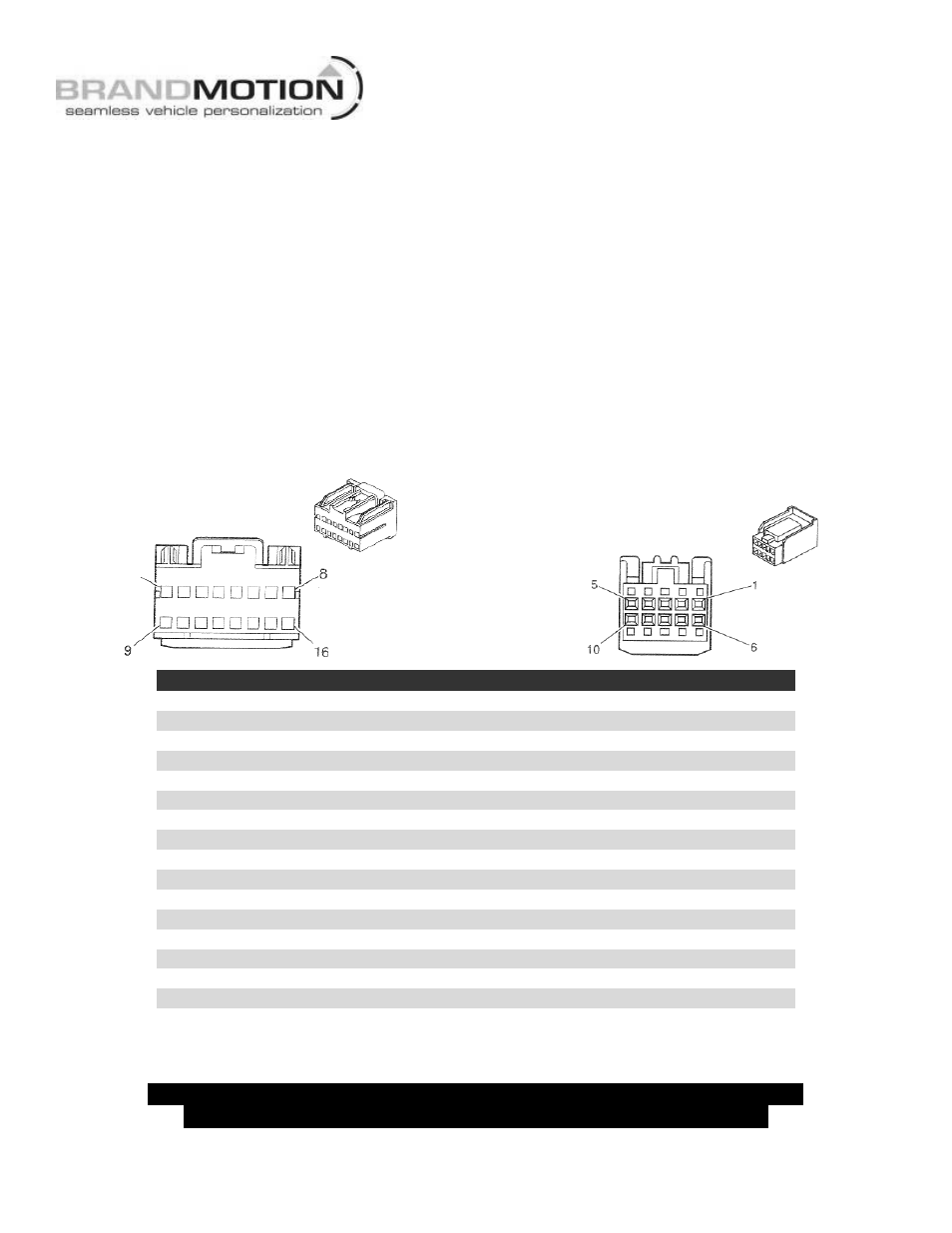

16 pin Description
Wire Color
10 pin Remarks
1
Not used
See Step 3
2
Not used
See Step 3
3
Not used
4
Not used
5
Auto Dimming (+)
Gray
9
6
Camera Video Signal (+)
See Step 3
7
Camera Video Signal (–)
See Step 3
8
Ground
Black
5
9
Backup Lamp Relay Control (Reverse)
Green
1
10
Not used
11
Onstar Keypad Signal
White
3
12
Onstar Keypad Supply Voltage
Light Green
4
13
Ignition 1 Voltage
Pink
2
14
Onstar Keypad Green LED Signal
Yellow
6
15
Onstar Keypad Red LED Signal
Brown
7
16
Auto Dimming (–)
Red
8
Not used
10
Note: After installation, if the reverse lamps remain on when the ignition is turned off, follow
the instructions listed on Page 2.
We strive to provide accurate and up-to-date installation instructions.
For the latest instructions, please visit www.brandmotion.com
White dot
identifies
cavity 1
