Installation Instruction Overview Dual Mount Universal Kit Aftermarket CMOS
Installation Instruction Overview Dual Mount Universal Kit Aftermarket CMOS
Camera with Optional Parking Gridlines (Kit # 9002-7601)
Camera with Optional Parking Gridlines (Kit # 9002-7601)
7601 Instruction Overview 9-18-12 (1).doc
Page 1 of 1
7601 Instruction Overview 9-18-12 (1).doc
Page 1 of 1
REQUIRED CONNECTIONS
Wire
Color
Polarity
Function
Connection
Red
12v +
Ignition Supplied
Power
Commonly found on main Ignition harness
Black
-
Ground
Good chassis ground
1: Select and Install Camera Bracket. Choose License Plate Bracket or Alternate Camera
Mount Bracket. Place camera in desired position to confirm fitment (Note: Some states prohibit items
blocking the license plate; check local authorities to confirm legal status for your specific application).
License Plate Bracket: Remove vehicle license plate. Reattach license plate securing bracket
behind.
Alternate Camera Mount Bracket: Remove camera from License Plate Bracket using supplied Allen
wrench. Attach camera to Alternate Camera Mount bracket and apply supplied self-adhesive foam to
mount. Use Template below to locate Alternate Camera mount on the vehicle: Clean vehicle surface and
affix by exposing self-adhesive foam. RECOMMENDED: Permanent attachment using small screws.
2: Measure, mark, and drill ¼” hole for camera harness.
3: Determine location of vehicle power and ground. Using a vehicle specific service guide and/or
wiring diagram and a multi-meter or computer-safe test light, locate which side of the vehicle contains
wires into which you will need to tap for the Power Harness wiring (see Required Connections above).
CAUTION: Once correct wires have been identified, turn Ignition key OFF and DO NOT TURN key
back ON until the install has been completed (Step 13).
4: Splice the red and black Power Harness leads into the corresponding vehicle wires
(Recommended: Soldering or T-taps as optional connection method; eyelet for the ground connection.)
5: Insert connector end of the Camera Harness through the hole you drilled.
6: Route Camera Harness. Continue routing harness to side of vehicle that supplies power and
forward.
7: Connect Camera Harness to supplied Chassis Harness.
8: Route Chassis Harness.
9: Secure Camera Harness to existing vehicle wiring. (Recommended: Wire Ties or Electrical
Tape.)
10: Connect Chassis Harness to supplied Power Harness.
11: Install aftermarket display/ Navigation display as per instructions (if required).
12: Connect Power Harness RCA to “Camera IN” on aftermarket display/ Navigation display.
13: Test the system.
14: Adjust Camera angle (if necessary). Loosen the camera screw using supplied Allen wrench to aim.
Tighten screw at desired adjustment.
15: Reassemble vehicle. Follow disassembly steps in reverse order, taking care not to bind harness.
NOTE: This camera has grid lines or non grid lines and mirror image or non mirror image options:
Grid line options: Default setting is to display grid lines. To remove the grid line display,
connect the two green wires near the end of the camera harness.
Display options: Default setting is mirror image display for rearward facing camera (rear view)
installation. To change to non mirror image for forward facing camera (front view) connect the
two white wires near the end of the camera harness.
REQUIRED CONNECTIONS
Wire
Color
Polarity
Function
Connection
Red
12v +
Ignition Supplied
Power
Commonly found on main Ignition harness
Black
-
Ground
Good chassis ground
1: Select and Install Camera Bracket. Choose License Plate Bracket or Alternate Camera
Mount Bracket. Place camera in desired position to confirm fitment (Note: Some states prohibit items
blocking the license plate; check local authorities to confirm legal status for your specific application).
License Plate Bracket: Remove vehicle license plate. Reattach license plate securing bracket
behind.
Alternate Camera Mount Bracket: Remove camera from License Plate Bracket using supplied Allen
wrench. Attach camera to Alternate Camera Mount bracket and apply supplied self-adhesive foam to
mount. Use Template below to locate Alternate Camera mount on the vehicle: Clean vehicle surface and
affix by exposing self-adhesive foam. RECOMMENDED: Permanent attachment using small screws.
2: Measure, mark, and drill ¼” hole for camera harness.
3: Determine location of vehicle power and ground. Using a vehicle specific service guide and/or
wiring diagram and a multi-meter or computer-safe test light, locate which side of the vehicle contains
wires into which you will need to tap for the Power Harness wiring (see Required Connections above).
CAUTION: Once correct wires have been identified, turn Ignition key OFF and DO NOT TURN key
back ON until the install has been completed (Step 13).
4: Splice the red and black Power Harness leads into the corresponding vehicle wires
(Recommended: Soldering or T-taps as optional connection method; eyelet for the ground connection.)
5: Insert connector end of the Camera Harness through the hole you drilled.
6: Route Camera Harness. Continue routing harness to side of vehicle that supplies power and
forward.
7: Connect Camera Harness to supplied Chassis Harness.
8: Route Chassis Harness.
9: Secure Camera Harness to existing vehicle wiring. (Recommended: Wire Ties or Electrical
Tape.)
10: Connect Chassis Harness to supplied Power Harness.
11: Install aftermarket display/ Navigation display as per instructions (if required).
12: Connect Power Harness RCA to “Camera IN” on aftermarket display/ Navigation display.
13: Test the system.
14: Adjust Camera angle (if necessary). Loosen the camera screw using supplied Allen wrench to aim.
Tighten screw at desired adjustment.
15: Reassemble vehicle. Follow disassembly steps in reverse order, taking care not to bind harness.
NOTE: This camera has grid lines or non grid lines and mirror image or non mirror image options:
Grid line options: Default setting is to display grid lines. To remove the grid line display,
connect the two green wires near the end of the camera harness.
Display options: Default setting is mirror image display for rearward facing camera (rear view)
installation. To change to non mirror image for forward facing camera (front view) connect the
two white wires near the end of the camera harness.

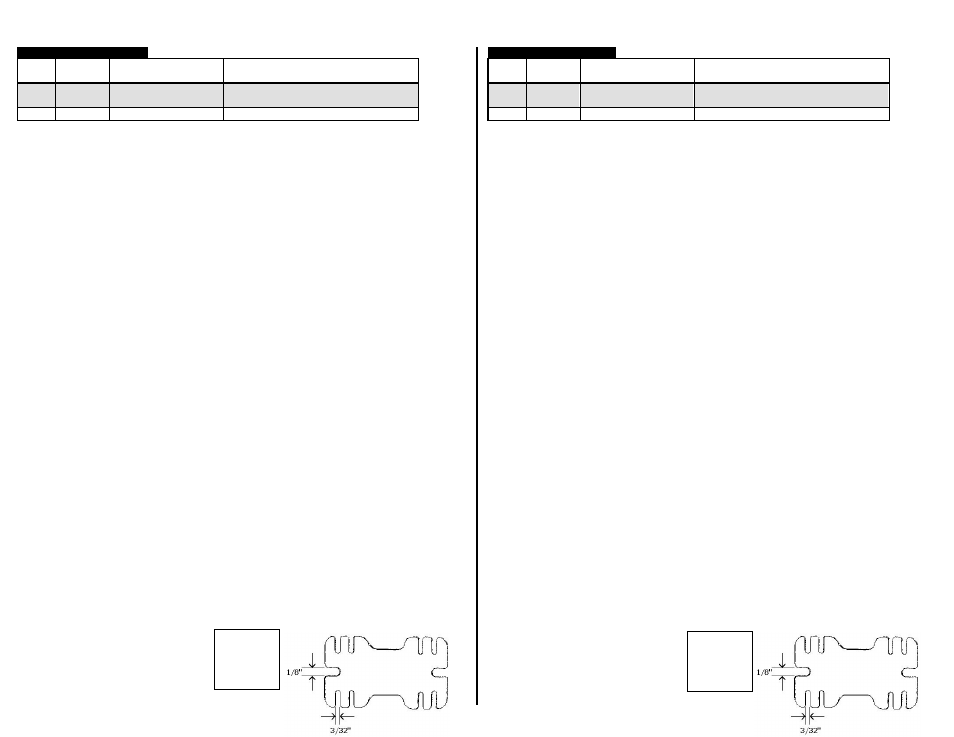

Alternative
Camera
Mount
Template
Alternative
Camera
Mount
Template
