Brandmotion 9002-8530 - Manual

INSTALLATION
INSTRUCTIONS
8530 Instructions 4-25-13.doc Page 1 of 4
OEM Lip Mount CCD Camera Kit for Toyota Display Radio
(Kit part number 9002-8530)
Please read thoroughly before starting installation and check that kit contents are complete.
Items Included in the Kit: Tools & Supplies Needed:
Bubble bag containing:
Camera with Mount (in zip lock bag)
Camera Harness
Chassis Harness
Jumper Harness with 6-pin connector
Z-tec Corrosion Inhibitor (in a white bottle)
Zip lock bag containing:
12 Wire Ties
2 Rubber Well Nuts
2 Bolts
Zip lock bag containing:
These Instructions
Self-adhesive Camera Mount Template
Phillips Screwdriver
10mm Socket
Center Punch
1/8”, 5/8” and 5/16” Drill Bits
Power Drill
File
Electrical Tape
Plastic trim removal tool
Rubber Grommet or Silicone Caulk (Recommended)
Cotton Swab
Vehicle service manual
(If needed)
Safety Precautions:
• Work in well ventilated area that is clear of obstructions.
• Secure vehicle with tire chucks in both front and rear of tires.
• Turn vehicle accessories OFF and ensure ignition key is in OFF position.
• Wear safety goggles and snug fitting clothes.
• Use tools only for their intended purpose and which are in good repair.
• Only perform this task if confidence, skill, and physical ability permit.
NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color
instructions, as well as an installation video, please visit www.brandmotion.com

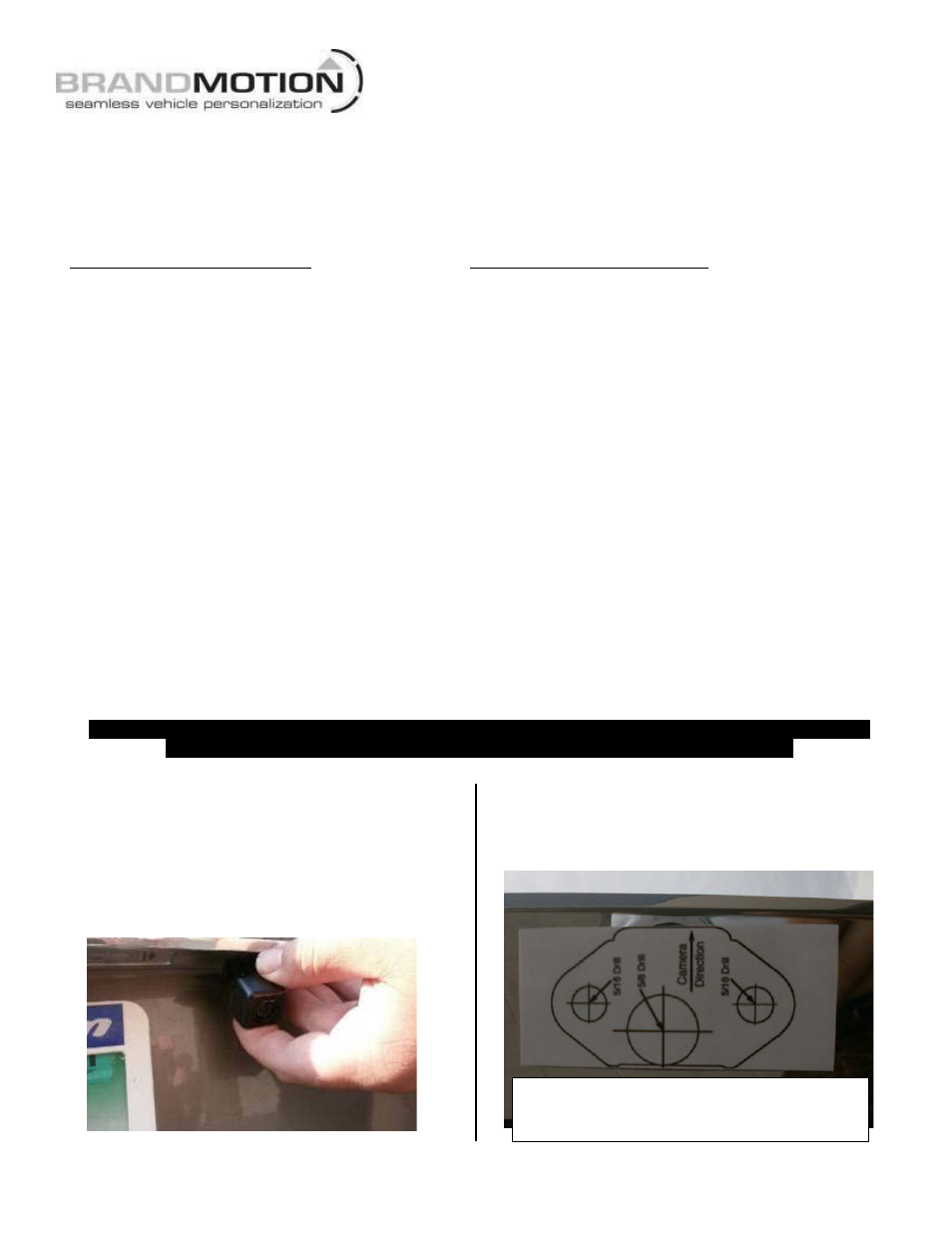

Step 1: Install Camera Mount. Place Camera
Mount in desired position. Check fit and verify that
there is no interference (latch, wiring, etc.) behind
the Camera Mount. (IMPORTANT: Some states
prohibit items blocking the vehicle license plate;
check local authorities to confirm legal status for
your specific application). Step 2: Peel adhesive backing from supplied
Camera Mount Template and apply to the desired
location making sure that the camera direction is
correct.
NOTE: If self-adhesive Template is missing or
damaged, cut out the image above and affix with
Masking Tape.
