INSTALLATION
INSTRUCTIONS
7603 Instructions 5-29-14.doc Page 3 of 3

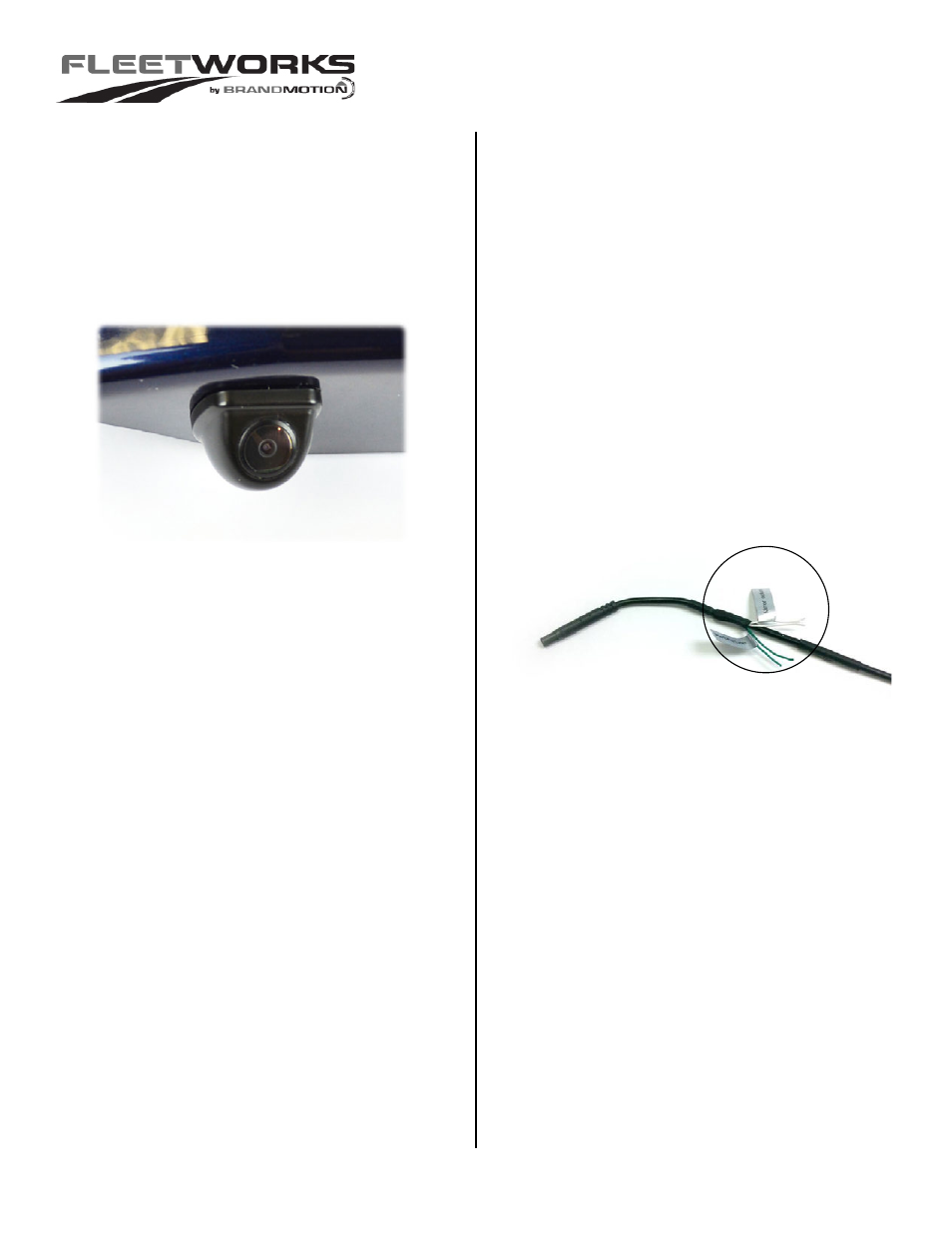

Step 14: (If necessary) Adjust camera aim.
Reposition camera to the desired viewing angle.
Step 15: Reassemble vehicle. Follow your
disassembly steps in reverse order, taking care not
to bind the harness wiring when reinstalling trim.
CAMERA
OPTIONS
The camera offers grid lines or non grid
lines and mirror image or non mirror image
options.
Grid line options: Default setting displays grid
lines. To remove the grid line display, connect
the two green wires near the end of the
Camera Harness.
Display options: Default setting is mirror
image display (i.e., words and letters appear
backwards as in a mirror) for rearward facing
camera (rear view) installation. To change to
non mirror image display for forward
facing camera (front view) connect the two
white wires near the end of the Camera
Harness.
Green and White wires on the Camera Harness.
