If you enter a span greater than the current settings
allow, the span will be set to the maximum possible
value. In this case, set the center frequency shown
below for your model and try to set the span again.

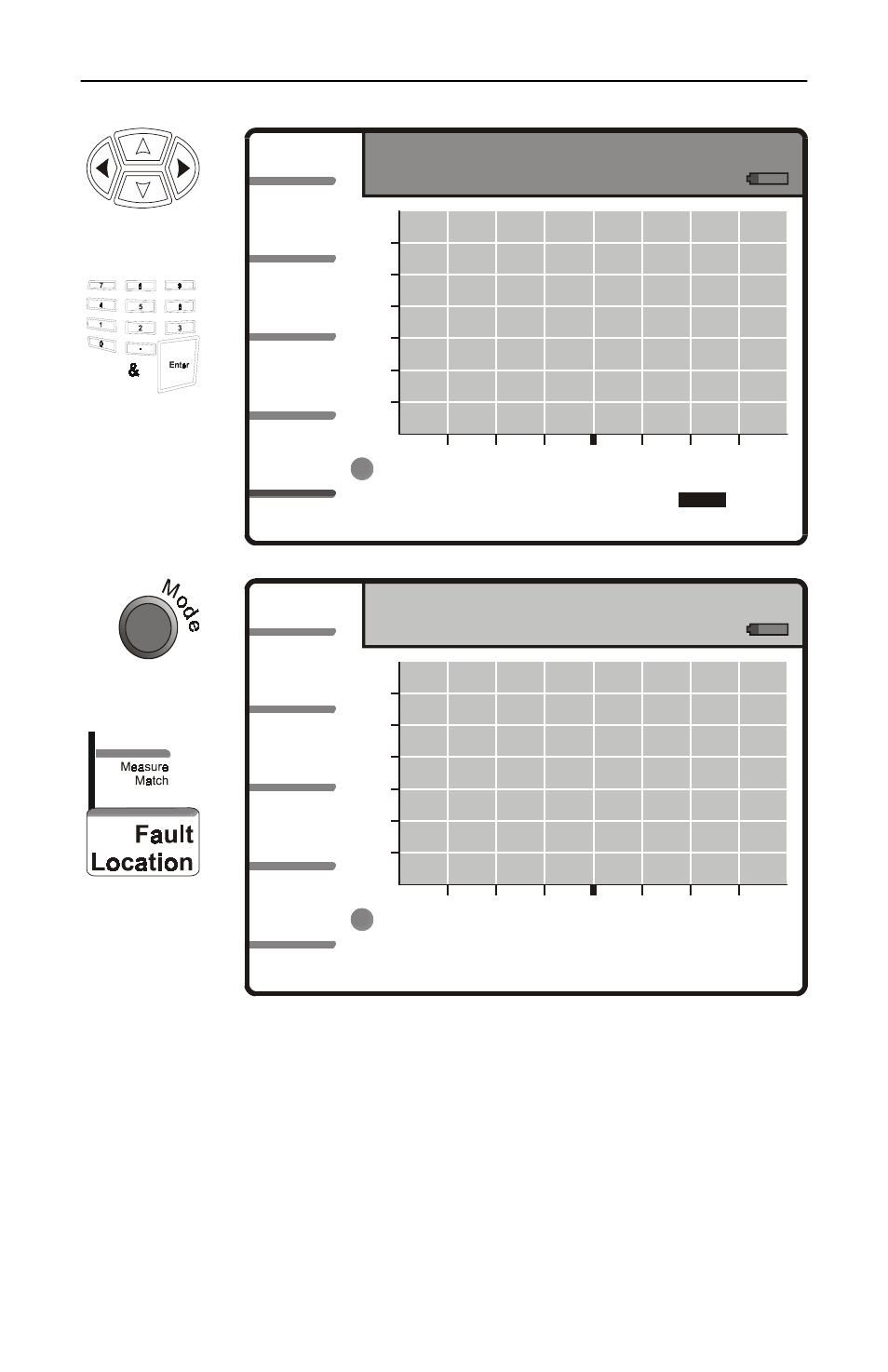

Scroll to the
Span value
Enter the
value from
Table 1
1290.00 MHz 1990.00
Measure Match Mode
Start: 1290.00 MHz
Stop: 1990.00 MHz
99.99
1.00
V
S
W
R
Freq
Scale
Limit
Line
Cable
Loss
Center: 1640.00 MHz
Span: 700.00 MHz
Band List: Custom
Press the
Mode key
Press from
Select Mode
0.0 Meters 30.5
Fault Location Mode
Calibration: OFF
99.99
1.00
V
S
W
R
Save/
Recall
Auto
Scale
Limit
Test On
HOLD
Print
SA-2000 1403 MHz
SA-2000A 1553 MHz
SA-2500A 1640 MHz
