Chapter 5 Fault Location Mode
This measurement identifies the position of impedance
discontinuities (faults) within the antenna/feeder
system. The measurement results are displayed on an
x-y graph. Distance from the Site Analyzer is shown
on the x-axis, while relative magnitude of the
discontinuity is shown on the y-axis.

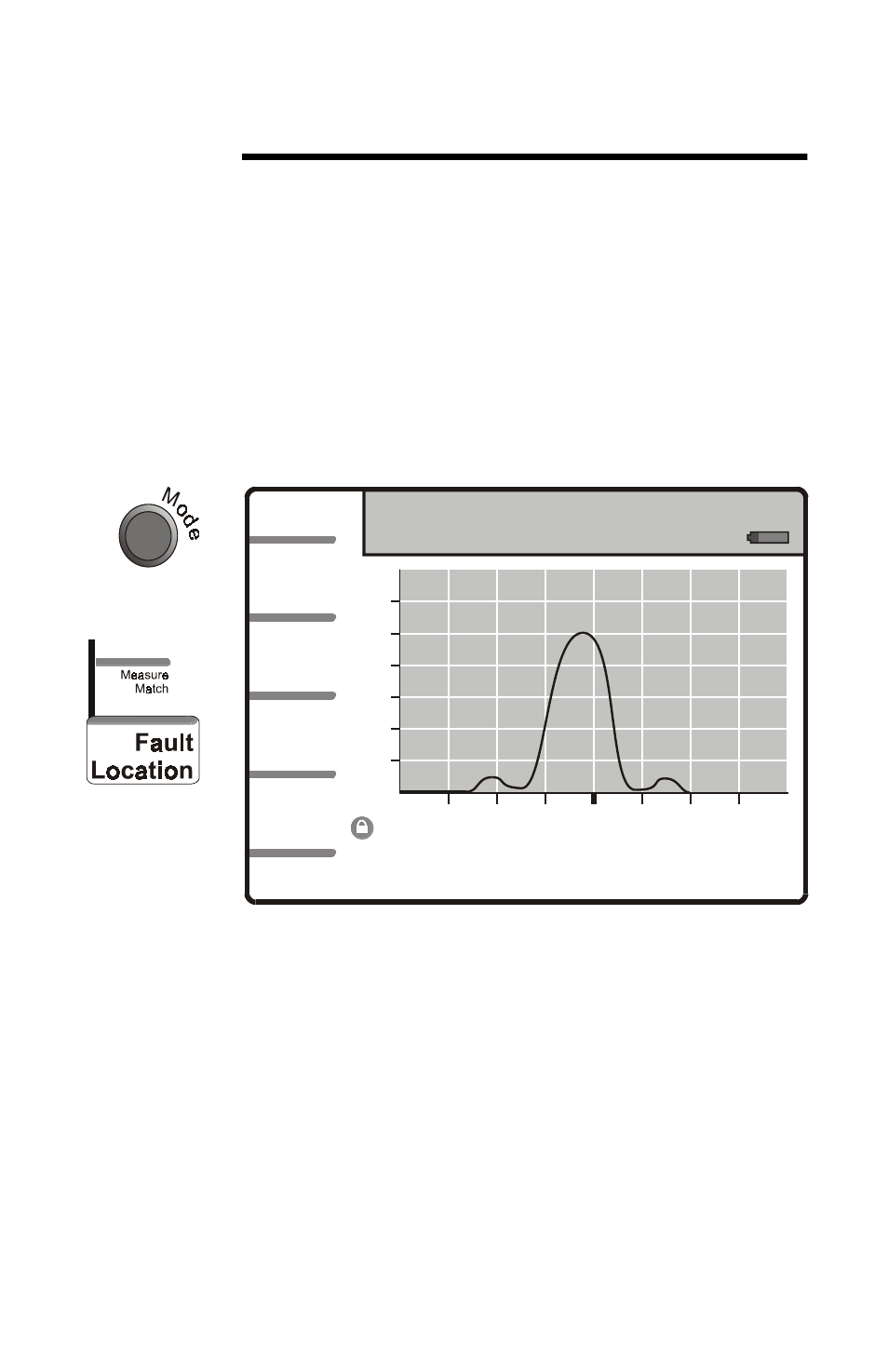

Set the frequency span, cable type, and calibrate the
Site Analyzer before taking any readings.
Press the
Mode key
Press from
Select Mode 0.0 Meters 18.2
Fault Location Mode
Calibration: Full
1.70
1.00
V
S
W
R
Save/
Recall
Auto
Scale
Limit
Test On
Run
Print
