PowerFlex® 700S and 700H Frame 12 Replacement Power Structures
ASIC Feedback Board Connections - Power Structure #1
ASIC Feedback Board Connections - Power Structure #2

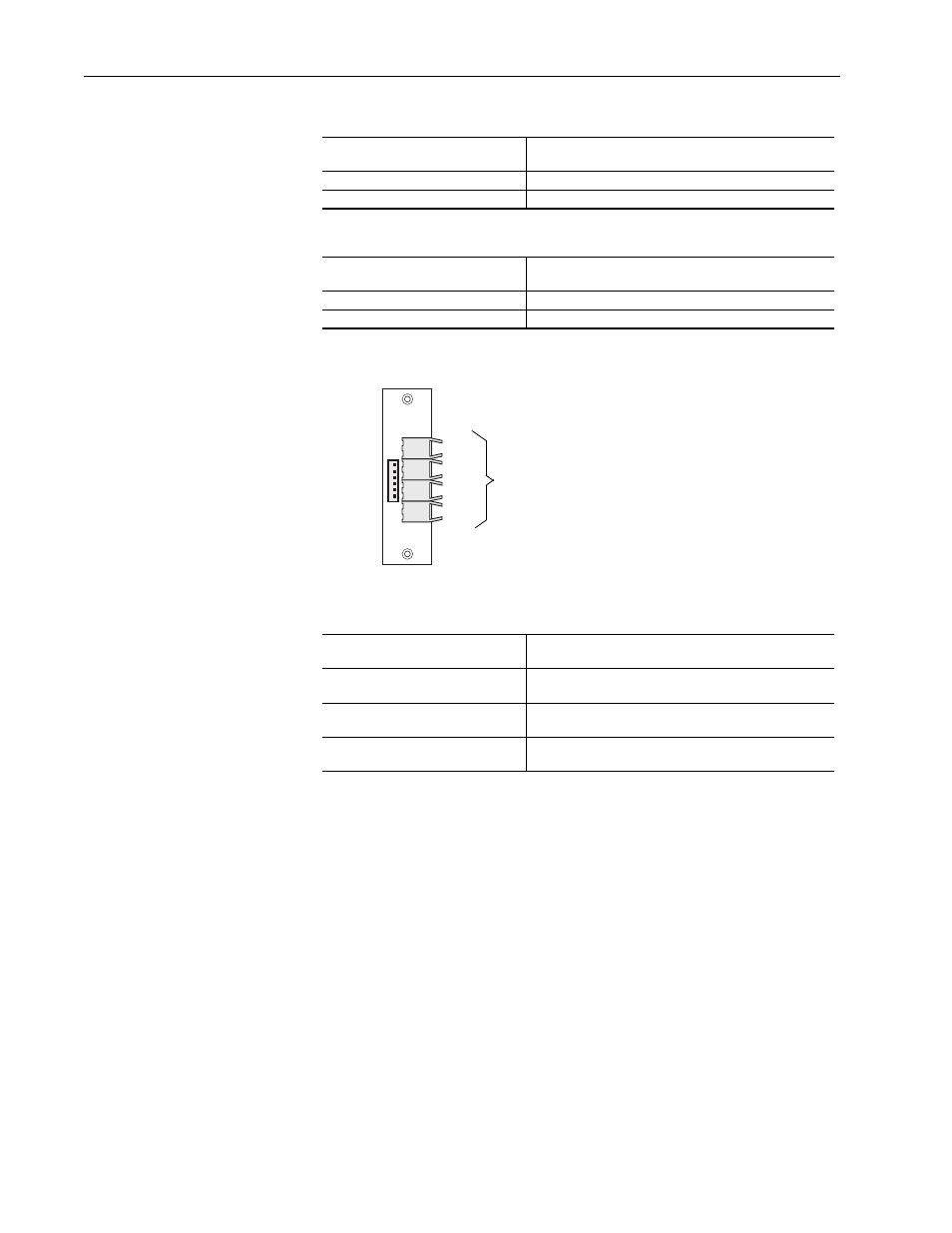

Figure 6 Termination Points on ASIC Feedback Boards
Power Supply Voltage Feedback Board Connections
Connect this component :
termination point . . .
to this component : termination point
ASIC Feedback Board: X900
ASIC Board Power Structure #1: X26
ASIC Feedback Board: H903
Star Coupler Fiber Optic Interface Board: J28
Connect this component :
termination point . . .
to this component : termination point
ASIC Feedback Board: X900
ASIC Board Power Structure #2: X26
ASIC Feedback Board: H903
Star Coupler Fiber Optic Interface Board: J27
Connect this component :
termination point . . .
to this component : termination point
Power Supply Voltage Feedback
Board: J8
Common Mode Filter Board: J5
Power Supply Voltage Feedback
Board: J5 (fiber optic connector)
Star Coupler Fiber Optic Interface Board: J7
Power Supply Voltage Feedback
Board: J4 (fiber optic connector)
Star Coupler Fiber Optic Interface Board: J6
H900
H901
H902
H903
X900
Fiber Optic
Ports
