Configuring the PROFIBUS Scanner 5-7
Connection and Baud Rate settings configure how the software tool
will communicate with the CONFIG RS232 port on the scanner.
Step 6. Click on the COM Port tab.
Step 7. Accept the settings in our example (COM1 on the PC at
115200 bps baud rate), as shown in figure 5.9.
Step 8. The scanner will appear in the network window as shown
in figure 5.10. Double-click on the scanner in the network
window.
Step 9. Double-click on the MDCOMM-PBUS listed in the
Reliance Electric library folder. A user-defined Name and
Description can be given to this MDCOMM-PBUS.
In our example, this device will be Station 1 on the network. Other
stations may be chosen by using the arrow to display a drop-down
list in the Station window.

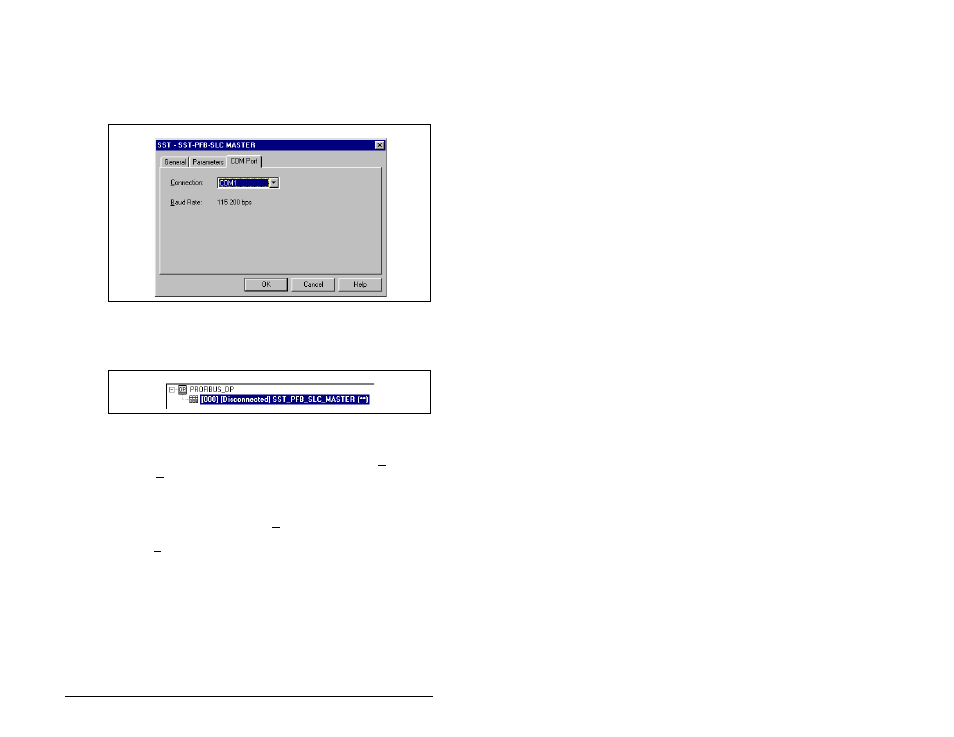

Figure 5.9 – COM Port Default Settings
Figure 5.10 – Scanner Network Window
