Getting Started
2-1
C
HAPTER
2
Getting Started
This chapter provides:
•
A description of the PROFIBUS module components
•
A list of parts shipped with the module and a list of user-supplied
parts required for installing the module
•
An installation checklist
2.1
PROFIBUS Module Components
Status Indicators
Three LEDs to indicate the status of the
connected drive, module, and network.
MDI Connector
A 20-pin, single-row shrouded male header. An
Internal Interface cable connects to this
connector and a connector on the drive.
PROFIBUS
Connector
A 9-pin, female D-Sub connector.
Node Address
Switches/ Firmware
Update Switches
Switches (SW1-7) for setting the node address
and SW8 for Firmware flash updating.
Mode Jumper (J2)
Selects Single or Multi-Drive mode of
operation.
SWAP Jumper (J3)
Determines the Intel or Motorola (SWAP) data
format for the corresponding PLC.

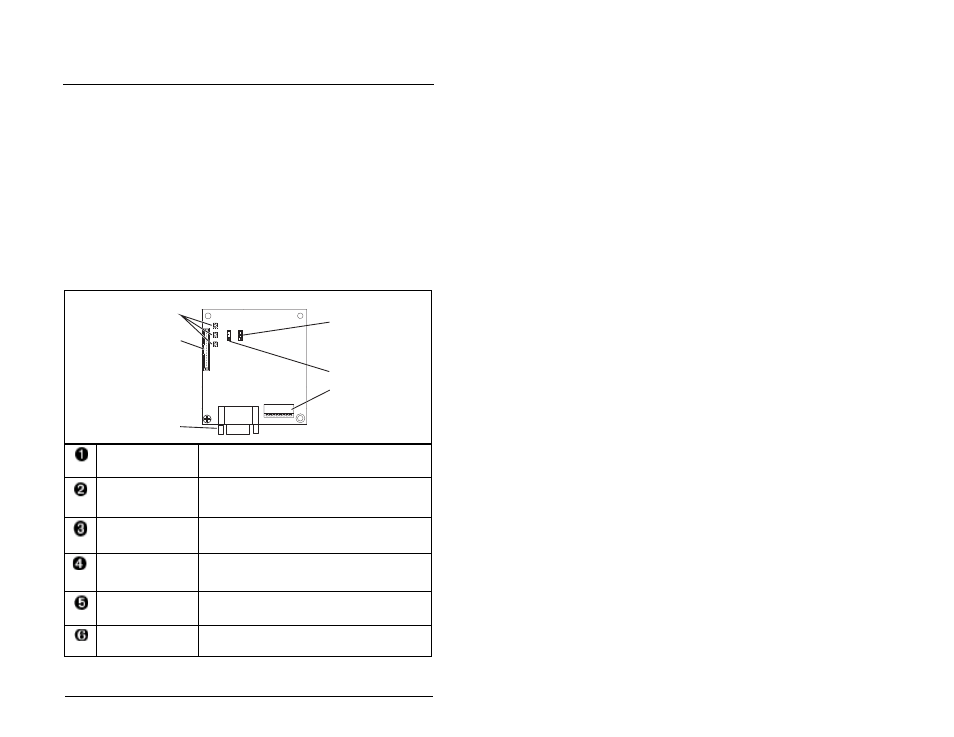

Figure 2.1 – Components of the PROFIBUS Module
➊
➋
➌
➍
➎
❻
