3-10 PROFIBUS Communications Module
3.6 Applying Power
Step 1. Install the required special cover on the drive. The status
indicators can be viewed on the front of the drive after
power has been applied.
Step 2. Ensure that the module will have a unique address on the
network. If a new address is needed, reset its switches.
See section 3.2, Commissioning the Module.

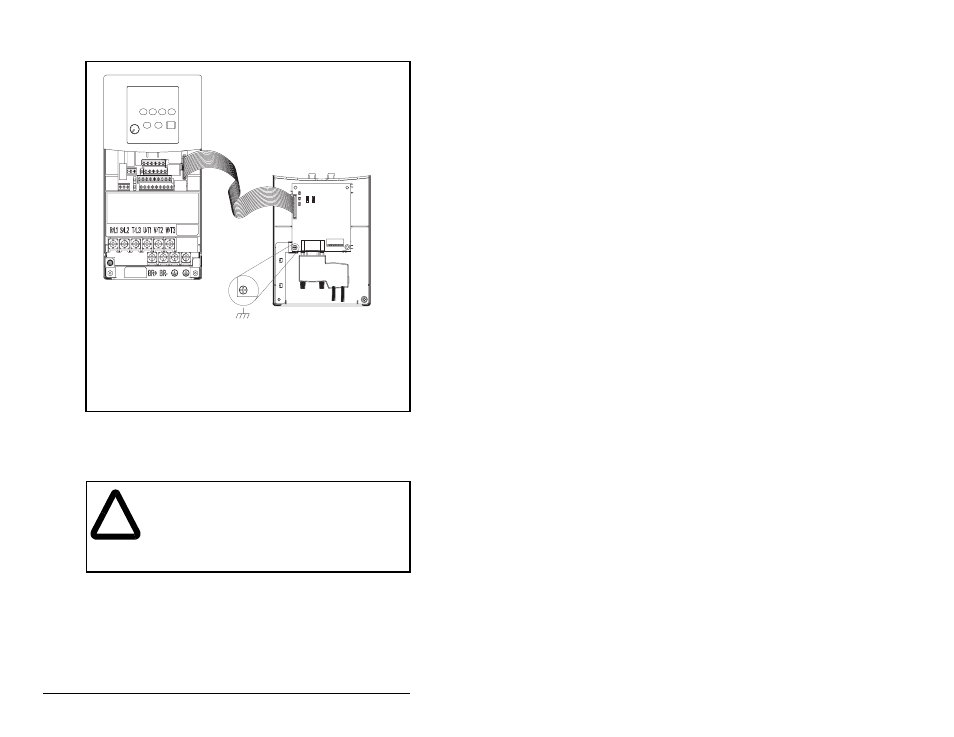

Figure 3.7 – Mounting the Adapter
!
ATTENTION: Unpredictable operation may occur if
parameter settings and switch settings are not
compatible with your application. Verify that settings
are compatible with your application before applying
power to the drive. Failure to observe these
precautions could result in severe bodily injury or
loss of life.
MD65 Drive
B and C Frames
(cover removed)
Module Mounted
on Back of Cover
For B Frame drives, the lower left module
screw does not ground the module. To
ground the module, install the special drive
cover onto the drive using both cover fasteners.
Ground for C Frame Drives
