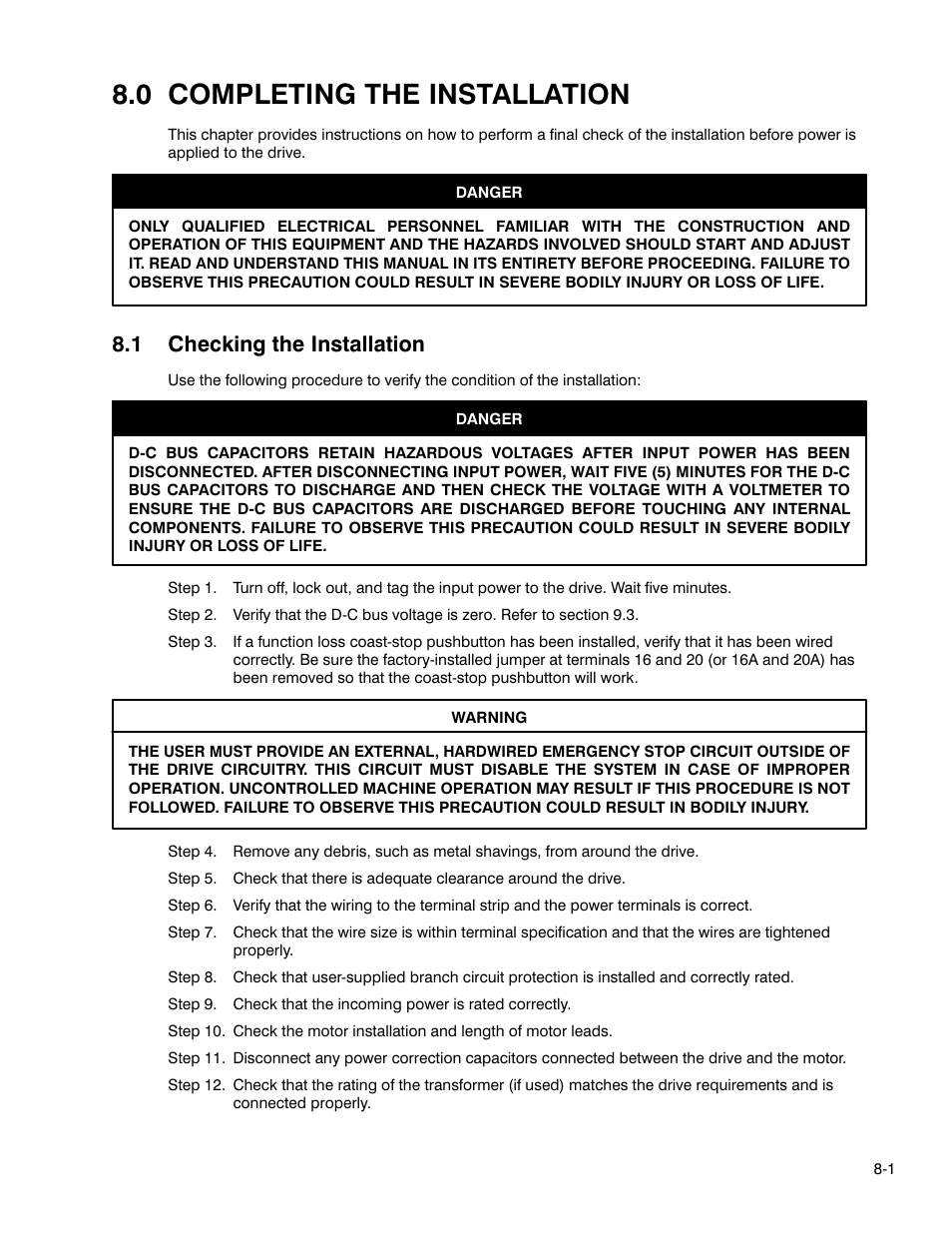

Chapter 8 - completing the installation, 0 completing the installation, 1 checking the installation – Rockwell Automation GV3000 AC Pwr Module Ver. 5.0 Hardware Ref, Installation, and Troubleshooting User Manual
Page 73
