Publication LZ-UM001A-EN-P - January 2008
8 Understanding and Caring for Your Linear Motor
LZ Linear Motor
For servo drives that require commutation feedback, an optional trapezoidal
(digital) Hall effect feedback module may be attached to the front of the motor
coil. The LZ linear motor may also be commutated via software. Anorad and
Rockwell Automation offers a full line of compatible servo controls and drives.
Motor Features
• High-performance, optimized design.
• 30% higher force density as compared to standard ironless motors.
• Zero-cogging.
• Wide range of coil and magnet options.
• Peak force range from 350…4000 N.
• Continuous force from 70…900 N.
• Ideal for constant scanning application.

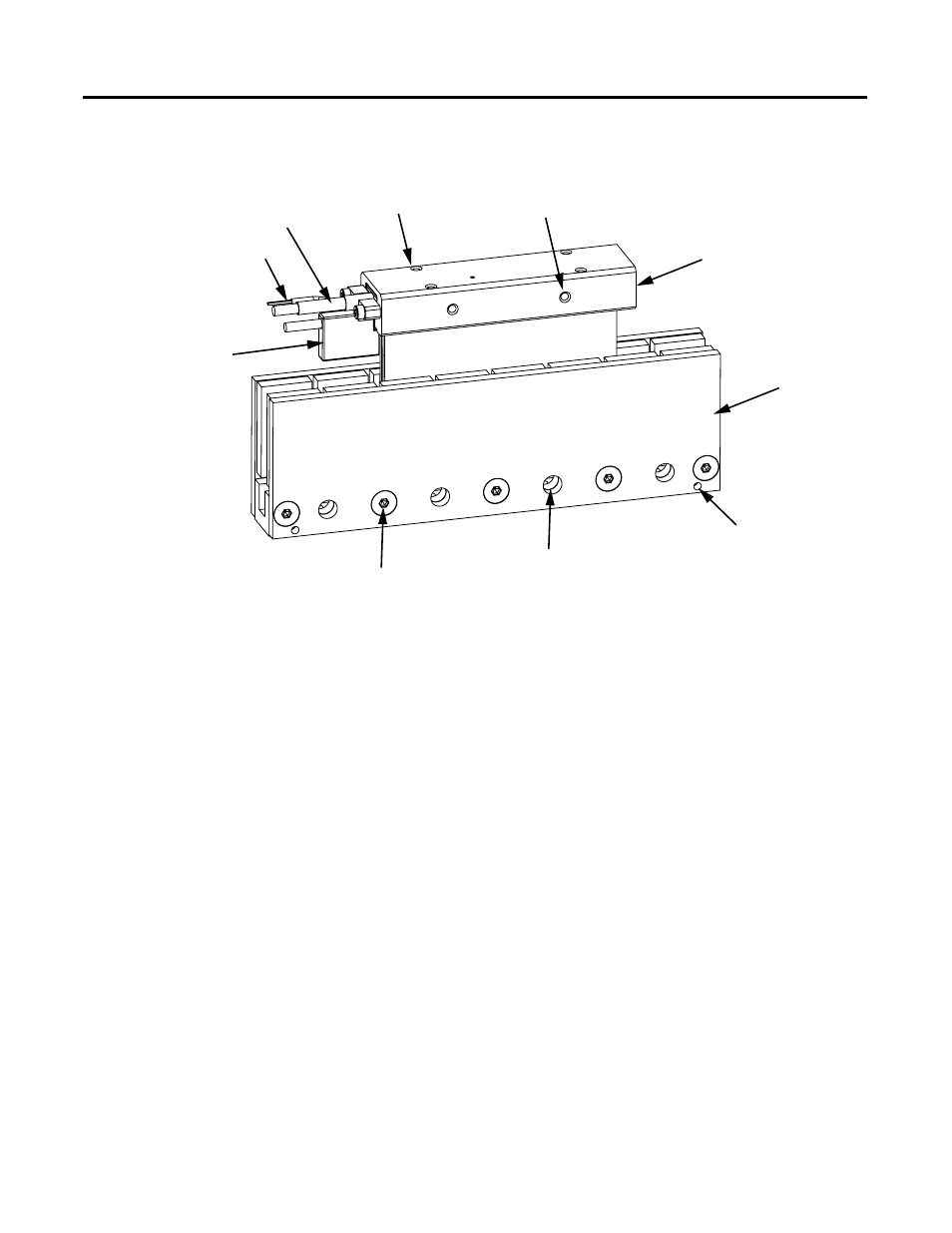

Magnet Channel
Assembly
For use with
Magnet Channel Alignment Tool
(x2)
Coil Assembly
Coil Assembly Top
Mounting Holes (x 4)
Coil Power Cable
Thermistor Cable
Coil Assembly Side
Mounting Holes (x 2)
Hall Effect Module
(Optional)
Never attempt to disassemble
magnet channel
Through Holes for mounting
Magnet Channel Assembly
