Installation 13

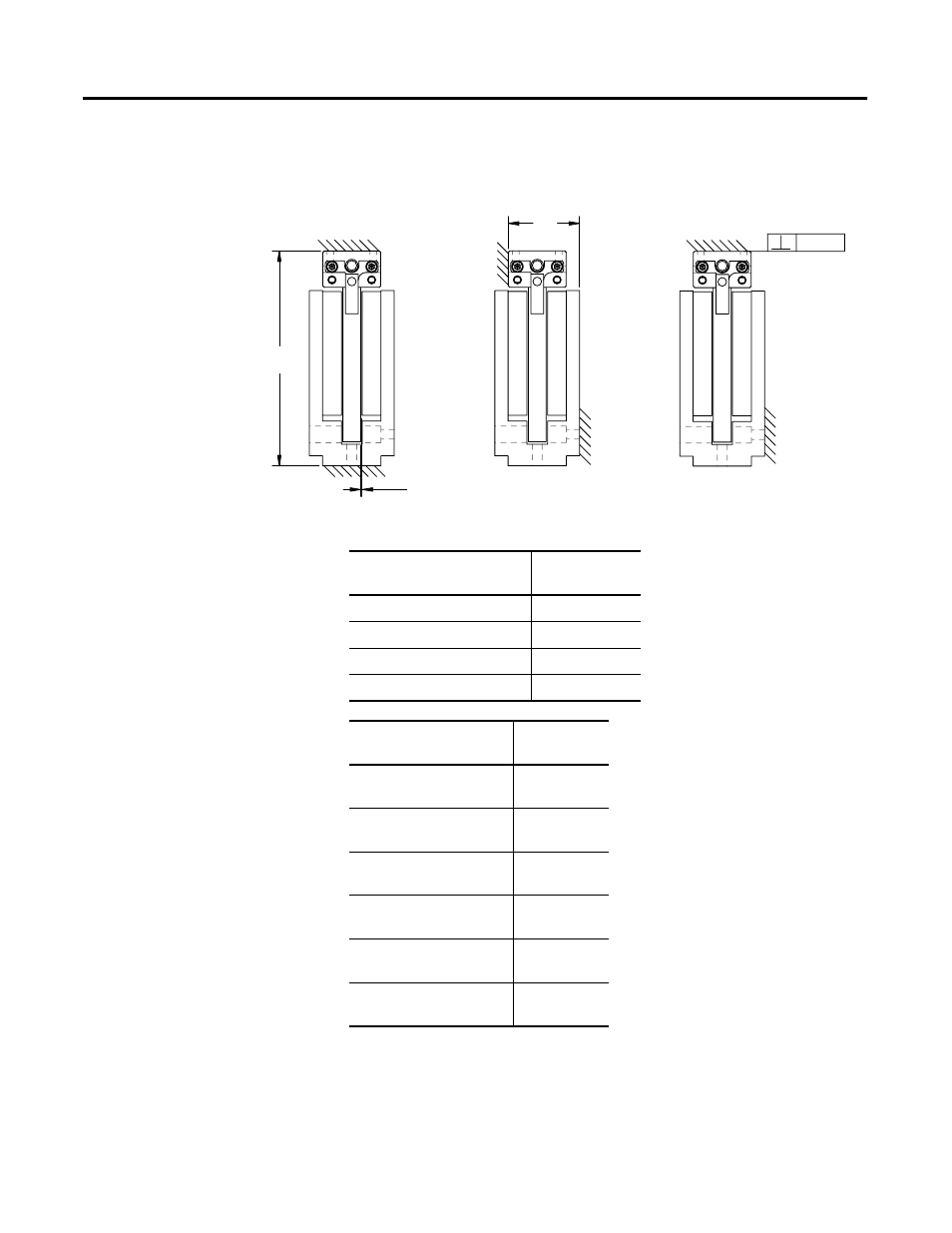

3. Verify that the mounting configuration for the magnet channel and coil

fits in envelope dimensions shown in diagram.

0.83 ± 0.40

(0.033 ± 0.015)

0.10 (.003)

Mounting Configuration A

Mounting Configuration B

Mounting Configuration C

Catalog Number

A
mm (in.)

LZM-030-

xxx

80.0 (3.15)

LZM-050-

xxx

100.0 (3.94)

LZM-075-

xxx

130.0 (5.12)

LZM-100-

xxx

155.0 (6.10)

Catalog Number

B
mm (in.)

LZM-030-0-

xxx

LZM-050-0-

xxx

36.4 (1.43)

LZM-030-T-

xxx

LZM-050-T-

xxx

37.7 (1.48)

LZM-030-HT-

xxx

LZM-050-HT-

xxx

43.15 (1.70)

LZM-075-0-

xxx

LZM-100-0-

xxx

38.05 (1.50)

LZM-075-T-

xxx

LZM-100-T-

xxx

39.35 (1.55)

LZM-075-HT-

xxx

LZM-100-HT-

xxx

43.15 (1.70)
