Power Connection for 1000A and 1600A DC SCR Precharge Modules
shows typical locations of bus bars and terminals on 1000A and
1600A DC SCR Precharge Modules for customer wiring.

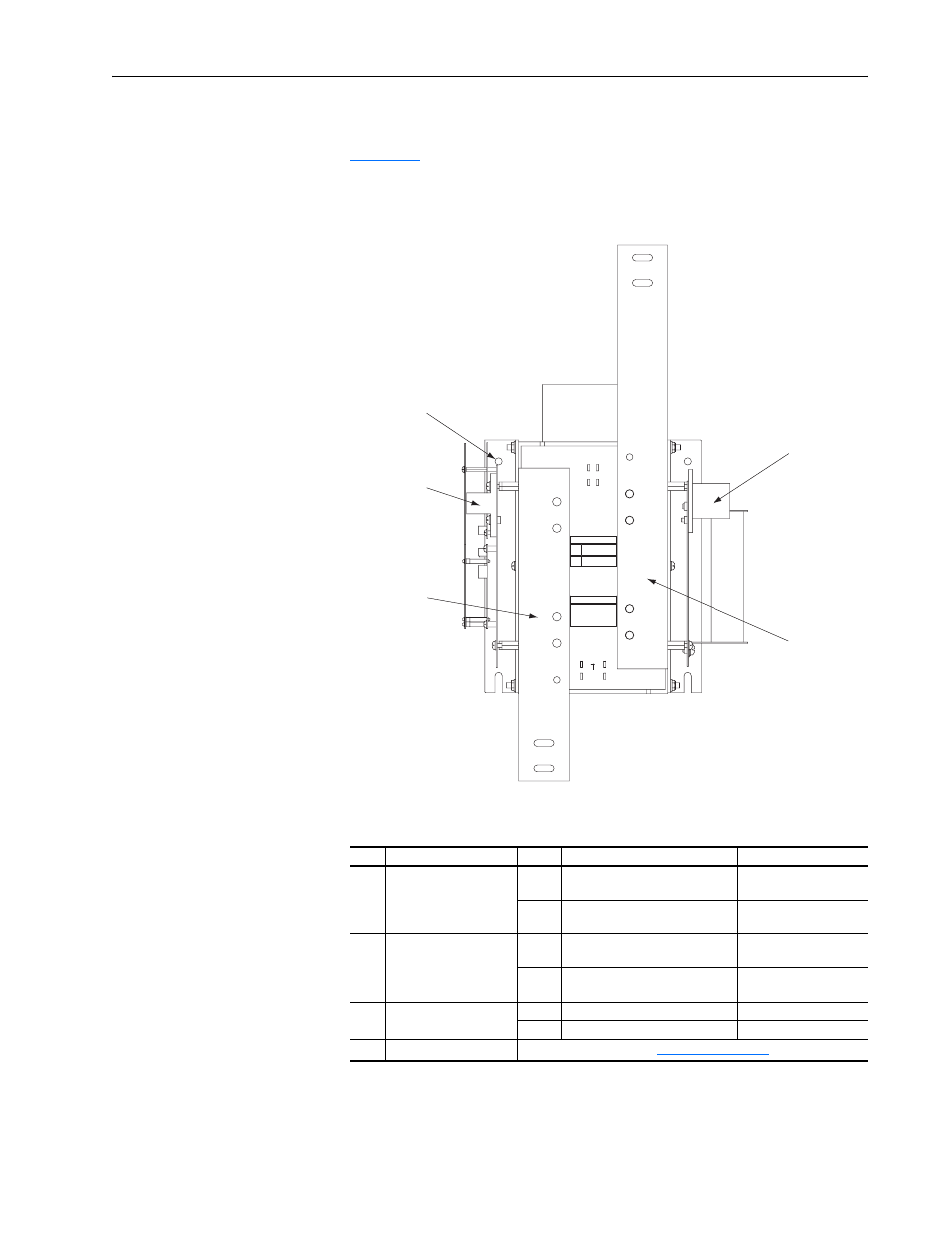

Figure 1.5 Bus Bar and Terminal Locations for Wiring 1000A and 1600A Modules
Table 1.C Power Connection Specifications for 1000A and 1600A Modules
Item Name
Amps Bus Bars
(1)
(1)
Input/output power bus bar connections require the use of either lug-type connectors to terminate field-installed
conductors or bus bars.
Holes
➊
DC Bus +DCin
1000
76.2mm x 12.7mm (3.0 x 0.5 in.)
4 holes x 12.7mm (0.5 in.)
2 slots: 10mm x 20mm
(0.4 x 0.8 in.)
1600
76.2mm x 12.7mm (3.0 x 0.5 in.)
4 holes x 12.7mm (0.5 in.)
2 slots: 10mm x 20mm
(0.4 x 0.8 in.)
➋
DC Bus +DCout
1000
76.2mm x 12.7mm (3.0 x 0.5 in.)
4 holes x 12.7mm (0.5 in.)
2 slots: 10mm x 20mm
(0.4 x 0.8 in.)
1600
76.2mm x 12.7mm (3.0 x 0.5 in.)
4 holes x 12.7mm (0.5 in.)
2 slots: 10mm x 20mm
(0.4 x 0.8 in.)
➌
Protective Earth (GND)
1000
Bolt M10 x 25mm (0.984 in.)
Torque 10Nm (88 lb-in.)
1600
Bolt M10 x 25mm (0.984 in.)
Torque 10Nm (88 lb-in.)
➍
Control Terminal Blocks
GND
+DCin
HK
G
