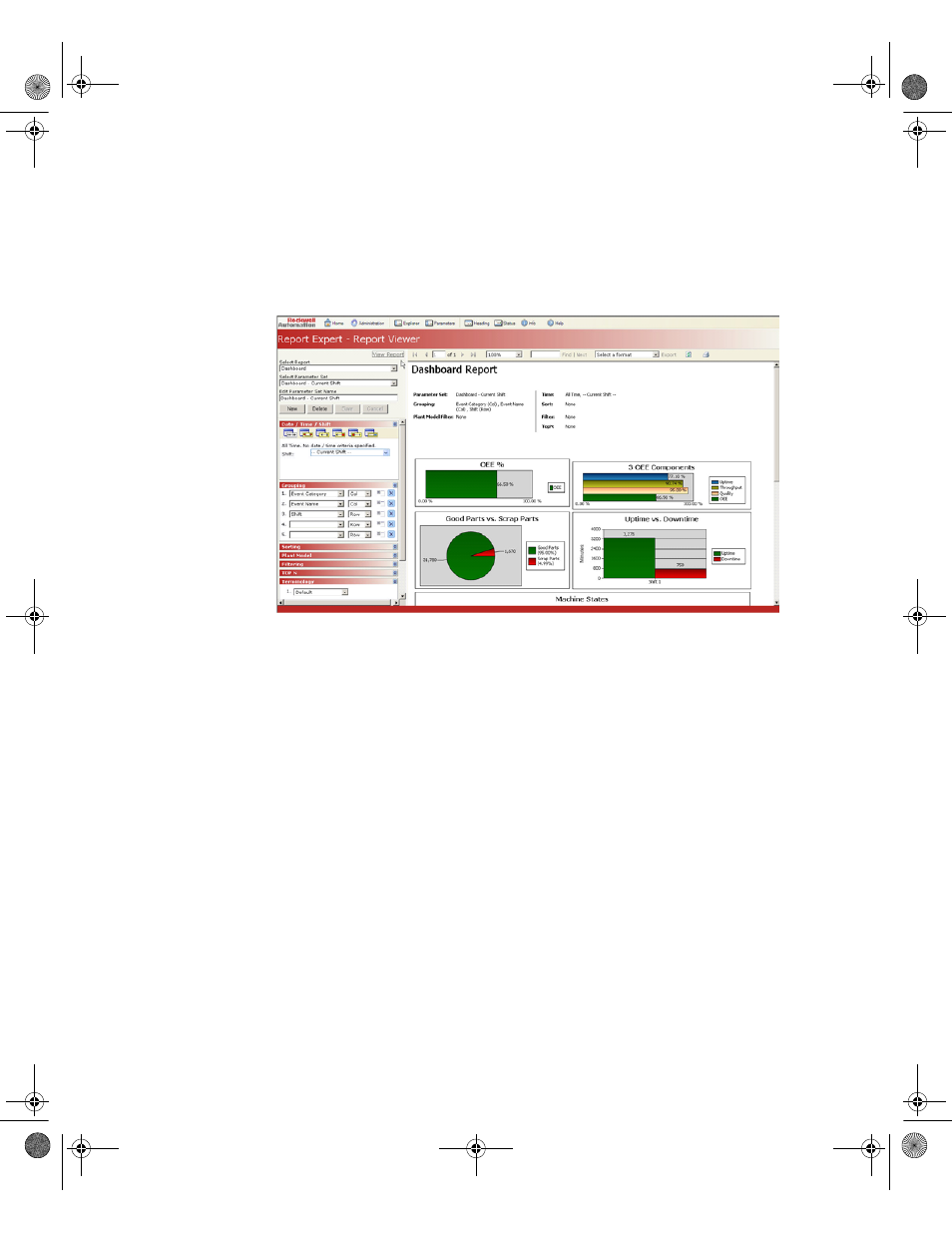

Dashboard Example
This report consists of the Dashboard report template and the Dashboard Current Shift
parameter set.
The Dashboard report template consists of a collection of nine other report templates,
which you can use individually. These nine dashboard components or "widgets" are:
OEE% chart (see page 53)
3 OEE Components chart (see page 54)
Good Parts vs. Scrap Parts chart (see page 54)
Uptime vs. Downtime chart (see page 55)
Machine States chart (see page 55)
Event Count and Duration chart (see page 56)
Last State box (see page 56)
Production Summary box (see page 57)
Uptime Summary box (see page 57)
For more information on dashboard widgets, see “Dashboard widgets” on page 53.
The Dashboard report template and the nine widget report templates are included in
FactoryTalk Metrics LE and not in FT Metrics.
The Dashboard Example report uses the pre-defined parameter set named “Dashboard
Current Shift” which contains the following settings:
Date/Time/Shift: All Time Current Shift
Grouping: Event Category (Col), Event Name (Col), Shift (Row)
