Add Basic System Diagnostics Chapter 4

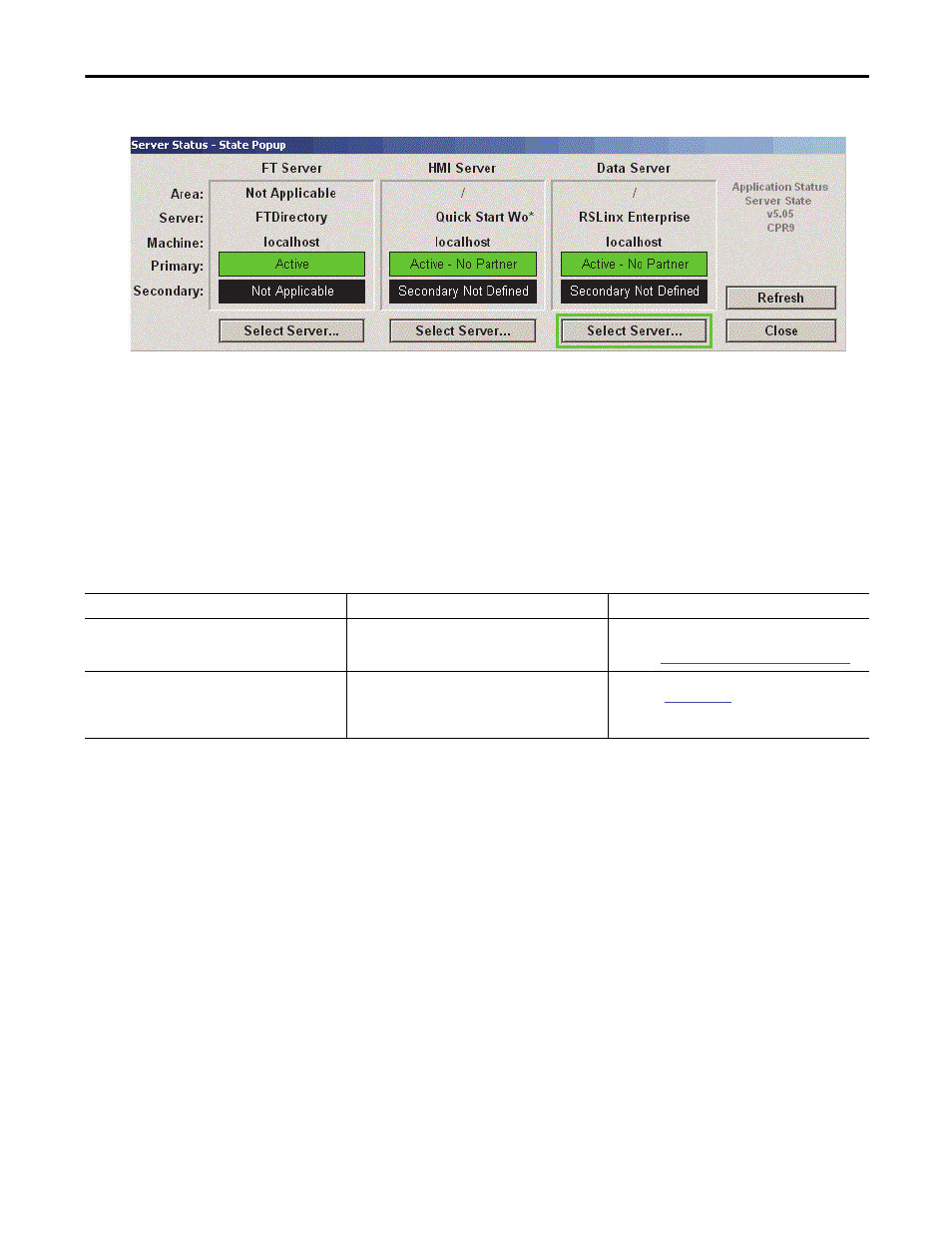

The Server Status faceplate appears.
The example shows a networked station application with the FactoryTalk server, HMI server, and data server on one
workstation. None of the servers is redundant in this application example.
Add These Additional Resources
The following resources are available to assist with developing your application.
TIP
We recommend that diagnostic alarms for network adapters and I/O modules be added to the Alarm server to be displayed on the
alarm banner and included in the alarm log and history.
Topic
Description
Where To Find Information
DLR diagnostics
The device-level ring (DLR) faceplate shows network
status and where a break is in the EtherNet/IP network.
The DLR diagnostics faceplate application can be
downloaded from the Rockwell Automation Sample Code
website at
L_ChangeDet, L_Redun, L_TaskMon library objects
These PlantPAx Library of Logix Diagnostic Objects
monitor Logix controllers on the network, checking for
changes that impact operation for primary and secondary
controller status.
PlantPAx Library of Logix Diagnostic Objects,
publication
