Configure the Controller Application Chapter 1
Download the PlantPAx Library
Follow these steps to download a controller template that is included in the PlantPAx Library of Process Objects.
1. Open the Knowledgebase Answer ID 62682 at http://www.rockwellautomation.custhelp.com.
2. Click the download link to access the zip files in the PlantPAx Library of Process Objects.
3. Select the V3.0 zip file and download the files to a folder.
You will need to access these Library files again so place the folder in a convenient location.
4. Unzip the files to your folder.
Open Your Template
Follow these steps to open the controller template that is appropriate for your target controller.

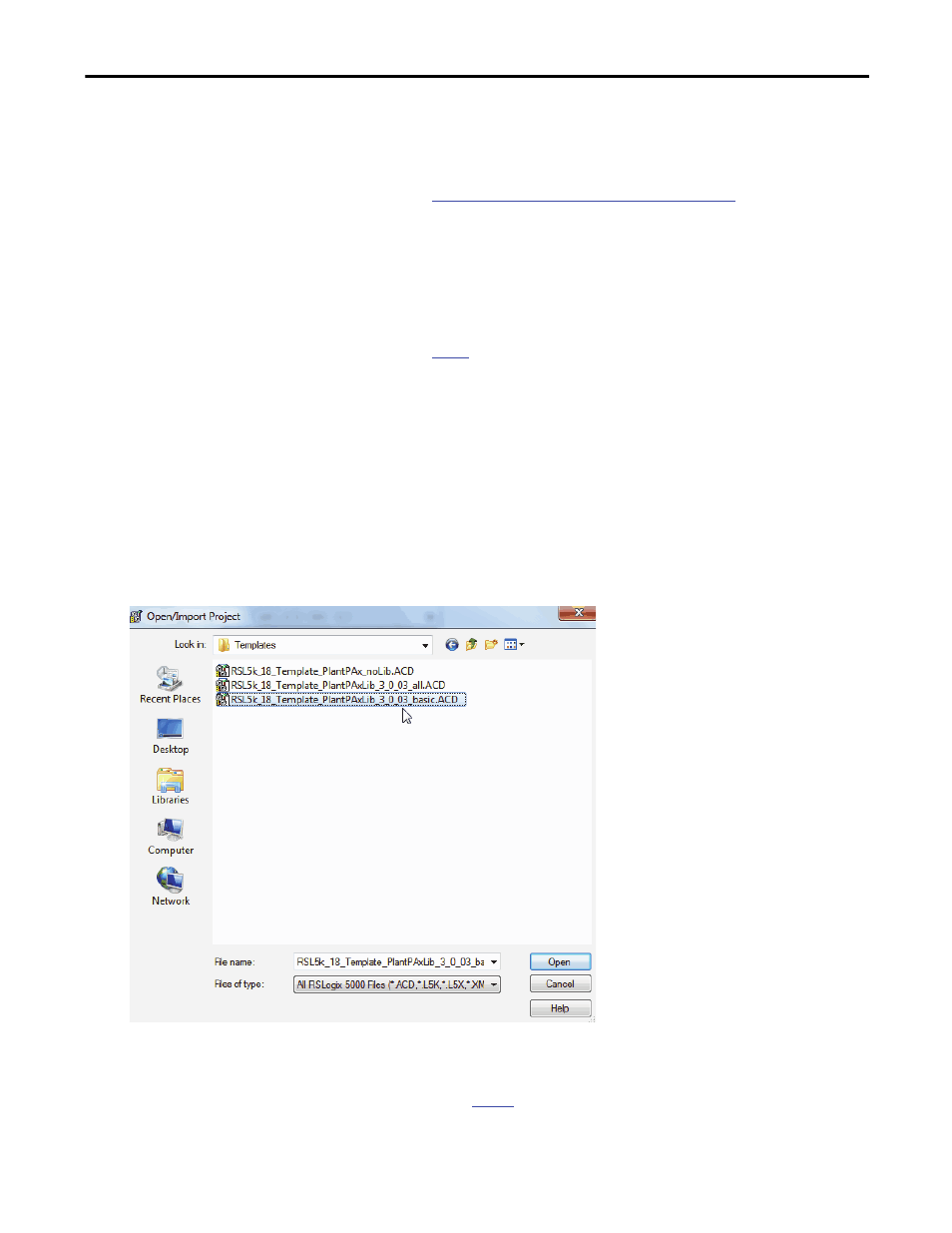

1. Open RSLogix 5000 software.
2. From the File menu, choose Open.
3. From the Look in pull-down menu, browse to the Templates folder where the downloaded PlantPAx Library files
are stored.
4. Select the appropriate controller template and click Open to begin applying the template to the target controller.
TIP The controller templates described in Table 4 are distributed with the Library in a folder titled, Templates.
TIP If you do not have RSLogix 5000 software version 18 installed, you will be prompted to change the firmware revision upon
opening the template. Follow steps 4…7 on
page 15 .
