Start Using Your HMI Project
In this chapter, you examine the template structure and then create a FactoryTalk View SE software client file for your
OWS. You also become familiar with the features of your HMI template.
Before You Begin
You must complete these tasks before using this chapter:
• Tasks described in
Before Using This Publication on page 6
• Load a template and create an HMI project; see
for procedures.
What You Need
FactoryTalk View SE software, version 7.0, must be running on an EWS to view the template structure. You also need an
EWS or OWS with a monitor matching the selected resolution to run the client site and review the template.
For template resolutions, see
.

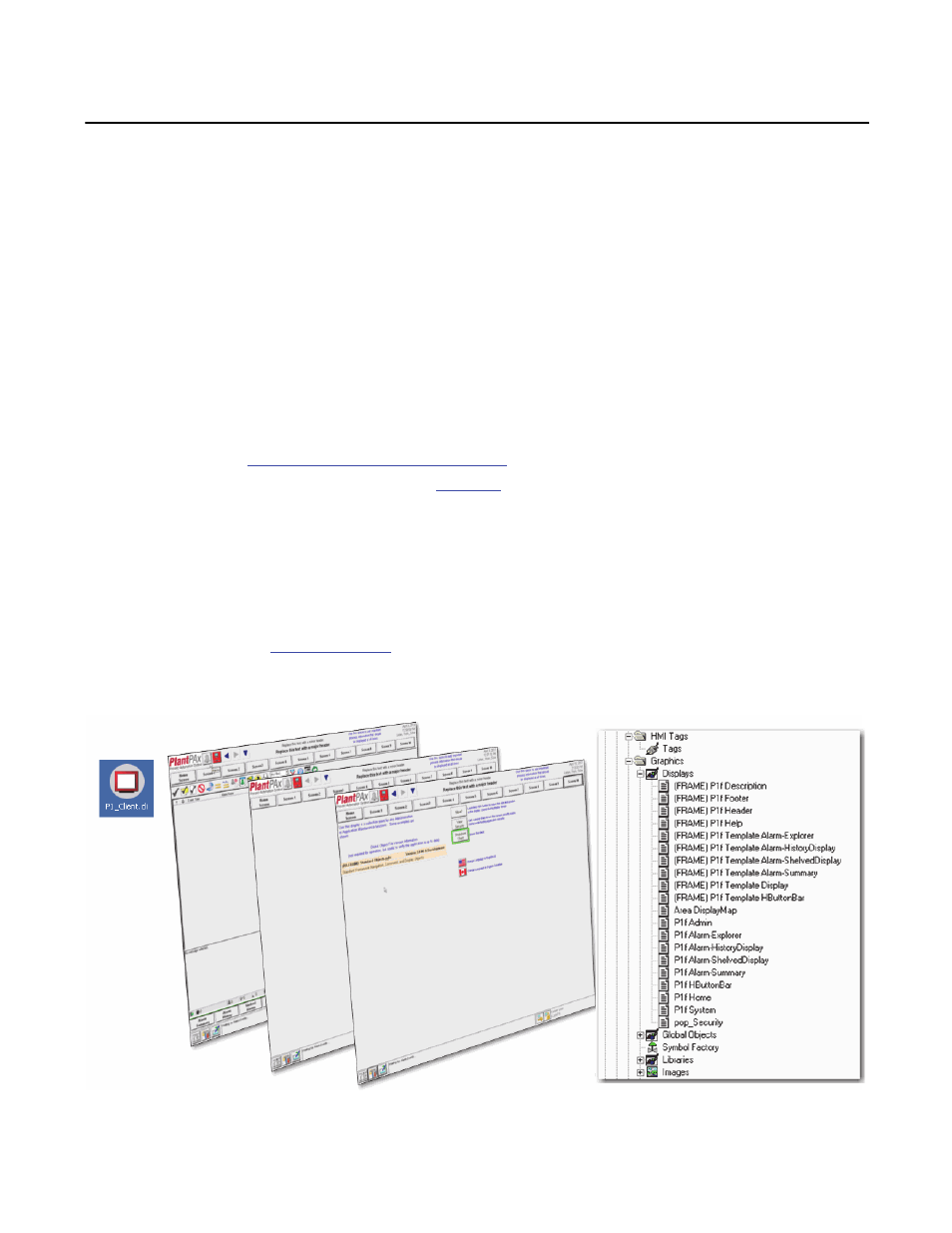

The illustration shows the client file (left), display layouts (center), and a HMI template structure.
