ControlNet Message/Traffic Generator Tool 16
Publication 9220-10.1 — July 1996

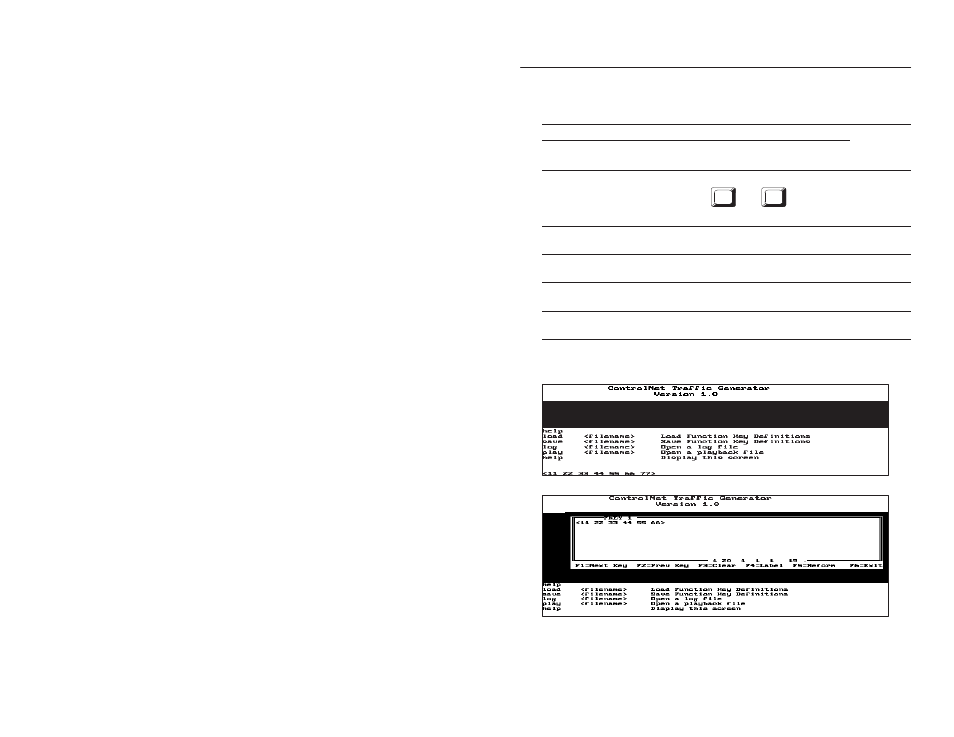

2. Use the traffic generator to construct and send messages.
To You Shown in
view the traffic generator’s options Type help
construct and send a message
Type the message enclosed in <>.
< xx xx xx xx >
assign a set of data packets to
a function key
a. press a function key
to F1 F10
a function key
b. type in the message parameters
load a saved
function-key-assignment file
load filename
À
save current function-key
assignments to a file
save filename
À
log all key strokes into a file, for
later playback
log filename
À
not shown
play a file (send predefined
messages on the network)
Á play filename
À
not shown
À
A filename must not exceed 8 characters in length.
Á
A predefined-message file, PLAYSOME is shipped on the traffic generator disk. See page 17.
