Rockwell Automation Publication 6181P-UM002D-EN-P - February 2014 53
Component Replacement Chapter 4

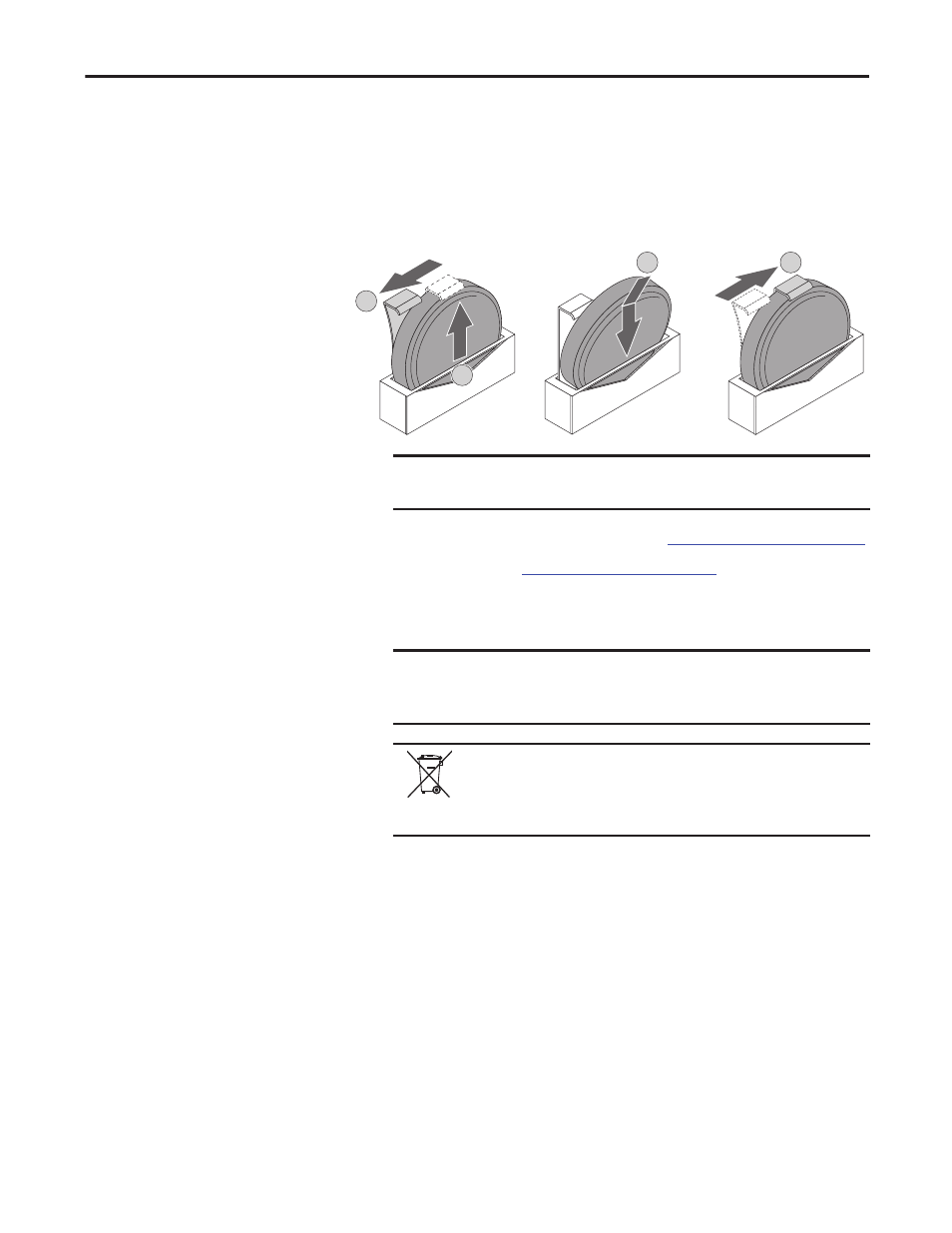

4. Disengage the battery latch (A) from the battery.
5. Remove the old battery from its socket (B).
6. Insert the new battery, with the positive polarity (+ side) facing the latch,
in the socket, making sure the battery is seated completely (C).
7. Engage the battery latch (D).
8. Reinstall the computer cover as detailed in Reinstall the Cover on page 38 .
9. Follow the steps for Post-configuration on page 37 .
10. During POST, press F2 on an attached keyboard to enter the BIOS setup
and reconfigure settings.
IMPORTANT Do not over-bend the battery latch when replacing the RTC battery.
The latch must retain contact with the battery for proper operation.
IMPORTANT Replacing the battery results in all BIOS settings returning to their
default settings. BIOS settings other than default must be reconfigured
after replacing the battery.
This computer contains a sealed lithium battery that may need to be
replaced during the life of the computer.
At the end of its life, the battery contained in this computer should be
collected separately from any unsorted municipal waste.
A
B
C D
