Page 46
46
Rockwell Automation Publication 2500-IN001C-EN-P - April 2014
Chapter 4
Install Cable
Install ArcShield Protection
After Wiring
Follow these procedures for installing the door latch bracket/frame stiffener in
the wireway.
1.
Open door.
2.
Install door latch bracket and frame stiffener bracket (if latter was removed).

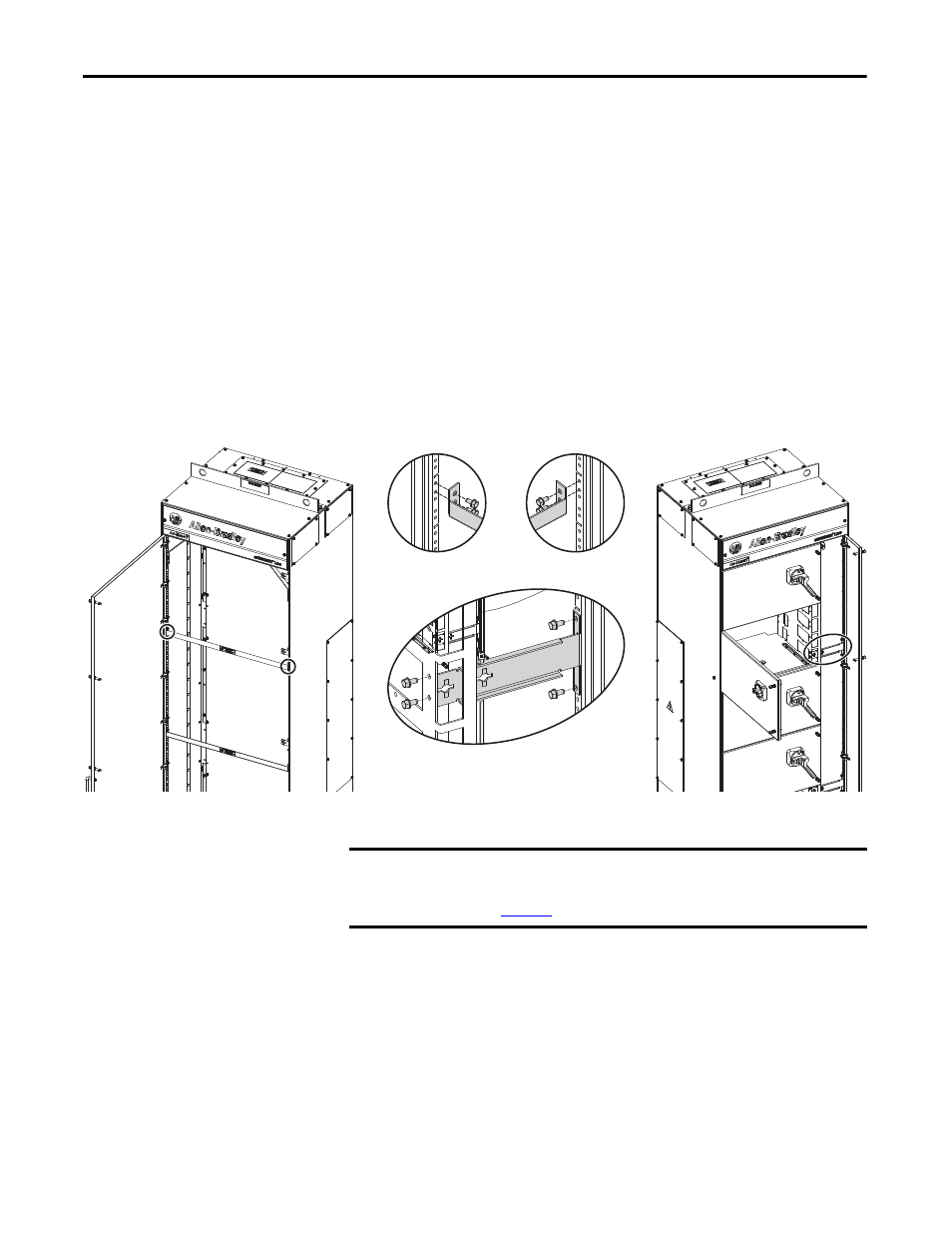

Verify latch bracket is in the correct orientation before installing. See
Detail C in figure below.
3.
Torque all bracket screws to 3.6 N•m (32 lb•in).
Lugs
Verify the compatibility of wire size, type, and stranding for the power lugs
furnished. Use correct lugs in all applications. Crimp compression lugs with
manufacturer recommended tools.
TIP
You can temporarily remove ArcShield latch brackets to maker it easier to
connect load cables.
Consider removing a unit if you cannot access the screw on the left side of the
bracket.
Detail A
Frame Stiffener Bracket
Wireway Latch Bracket
Detail B
Detail C
A
B
C
IMPORTANT
Install lugs so proper spacing is used between phases. Hardware must be
tightened per the torque specifications.
for more information.
TIP
Use the MCC electrical schematics and wiring diagrams to verify field wiring
connection points.
