2-4 About 8720MC-RPS Regenerative Power Supply
Hole for Cover Fixing Screw
Power Lamp
Front Cover
Operation Panel (only for Master Unit)
REGENERATIVE POWER SUPPLY REGENERATIVE POWER SUPPLY
8720 8720 MC MC
RST PRG ENT
READY
FAULT
PROGRAM kW
V
A
P N DC Bus Terminals
Main Power Terminals
L2 L1 L3
Unit Front View
Unit After Removing Front Cover
Control Power Terminak Block (TB2)
Control Terminal Block (TB4)
Regulator Board (only for Master Unit)
RST PRG ENT
READY
FAULT
PROGRAM kW
V
A
Sequence Signal Terminal Block (TB3)
L 1AUX
L 2AUX
L 3AUX
PR1
PR2
PR3
+24V3
0V3
SENS
+24V2
0V2
MC1
MC2
Fuse1
Fuse2
Fuse3

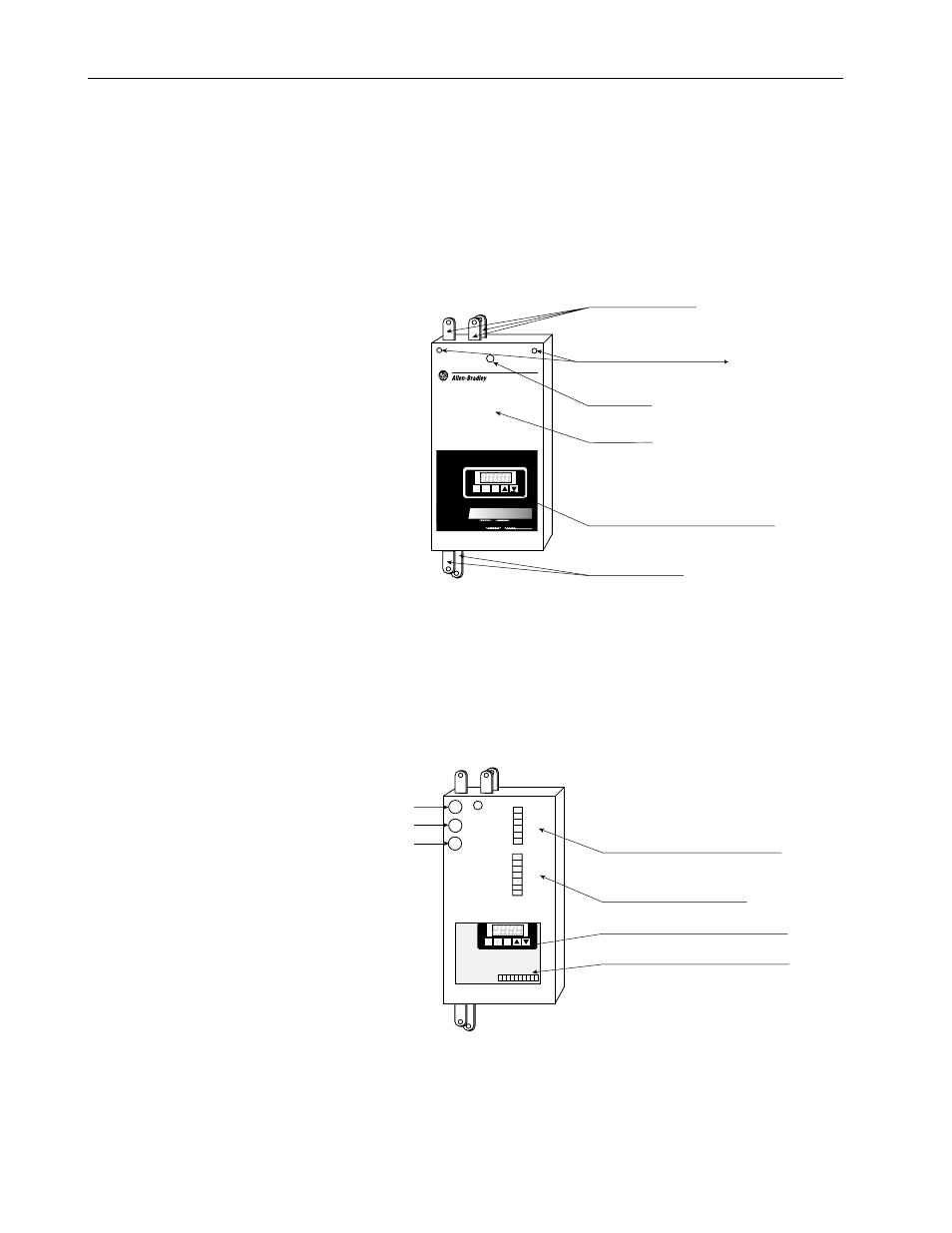

Appearance of Model 8720MC-RPS190
The figure below shows the front view of the 8720MC-RPS190
covered by the front cover.
This unit has the main power terminals L1 to L3 at the top of the
unit, and DC bus terminals P and N at the bottom of the unit.
When the front cover is removed from the 8720MC-RPS190
Regenerative Power Supply, the Control Power Terminal Block
(TB2), the Control Terminal Block (TB4), the Regulator Board
(only for master unit) and Sequence Signal Terminal Block (TB3)
will appear as shown in the following figure.
