36 Rockwell Automation Publication 2100-UM006A-EN-P - July 2013
Chapter 4 Configure the I/O

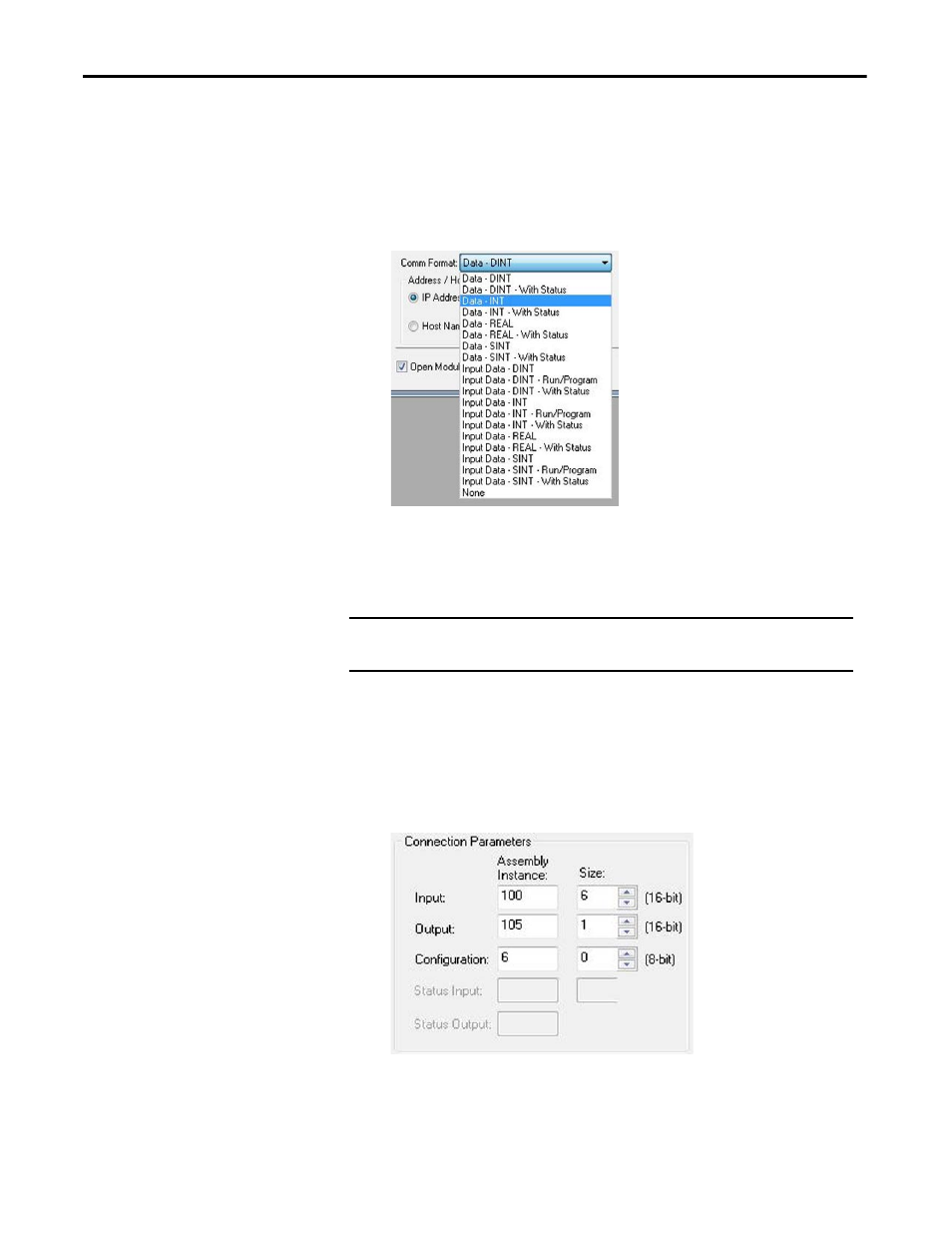

4. Choose Data-INT for the Comm Format.
The Comm Format tells RSLogix 5000 software the format of the data.
The Data-INT format represents the data from the E3 Plus EtherNet/IP
network adapter as a field of 16-bit values.
Comm Format Selections
5. Set the Connection Parameters.
Access I/O data by using Input Instance 100 and Output Instance 103 (for
E3 standard) or 105 (for E3 Plus) by default.
The size of the input connection and the output connection shall
correspond to the size of the chosen instance. For Instance 100, the size is
6. For Instances 103 and 105, the size is 1. The E3 Plus EtherNet/IP
network adapter Configuration Assembly Instance is 6. Currently, the
2100-ENET adapter does not support the configuration assembly.
Connection Parameters
IMPORTANT If you have already changed the Input and Output Assemblies, enter those
values instead of the default values.
