4Ć26
Sequence 26: Copy channel 2 low alarm bit to an output
3122
.02
12
.02
( )
( )
Sequence 27: Copy channel 0 lowĆlow alarm bit to an output
3123
.00
13
.00
( )
( )
Sequence 28: Copy channel 1 lowĆlow alarm bit to an output
3123
.01
13
.01
Sequence 29: Copy channel 2 lowĆlow alarm bit to an output
3123
.02
13
.02
( )
( )
Sequence 24: Copy channel 0 low alarm bit to an output
3122
.00
12
.00
Sequence 25: Copy channel 1 low alarm bit to an output
3122
.01
12
.01
( )
Sequence 23: Copy channel 2 high alarm bit to an output
3121
.02
11
.02

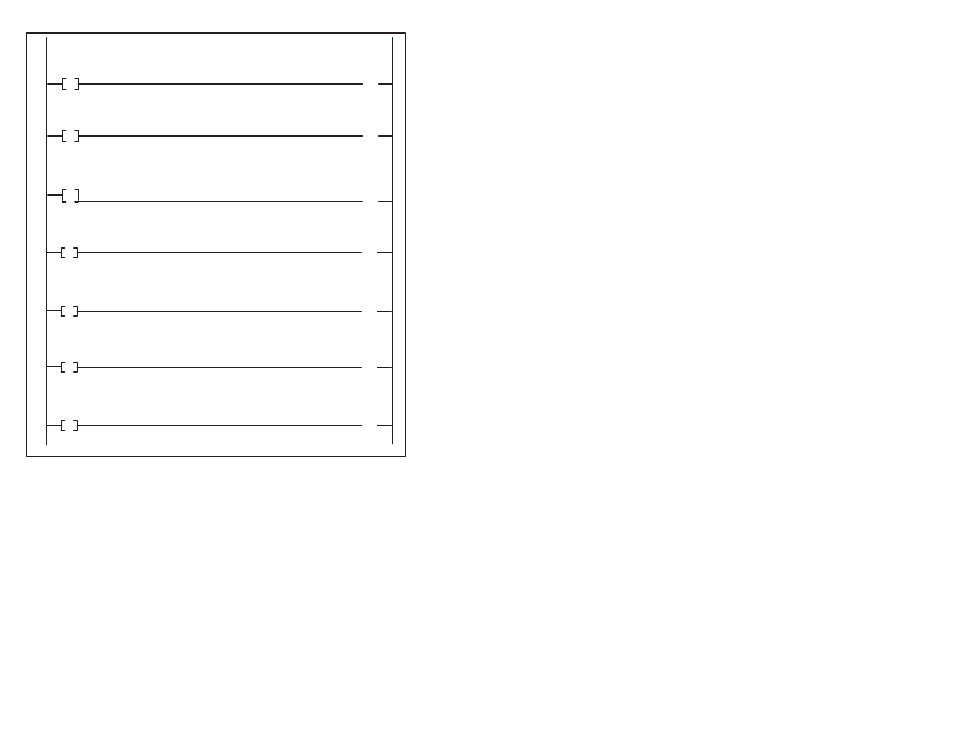

Figure 4.13 Ć Sample AutoMate RTD Application Program (Continued)
4.6 Restrictions on Use
The channels on the RTD module are to be configured from only one
application task.
Do not configure a channel on the RTD module unless an RTD is
connected to that channel. If you do, outĆofĆrange input values may
be generated.
If the RTD module is in an AutoMate remote rack, both the master
Remote I/O Processor and the slave Remote I/O Processor must be
M/N 45C201B or later. If either Processor is of an earlier version, the
remote rack will not stay onĆline with the master.
You can place up to 15 RTD modules in either a local or remote
AutoMate rack when using a 50 Amp AutoMate Power Supply
