Rockwell Automation 2755 Hand-Held Cordless Bar Code Scanners User Manual
Page 134
Application Examples
A–17
Publication 2755-6.6
SLC 5/03 and SLC 5/04 Controllers Setup
You need to configure the SLC 5/03 and SLC 5/04 controllers.
Follow the steps starting below or refer to the following publications:
•
SLC 500 Modular Hardware Style Installation and Operation
Manual (Publication No. 1747-6.2)
•
SLC 500 and MicroLogix
t 1000 Instruction Set Reference
Manual (Publication No. 1747-6.15)
•
Advanced Programming Software User Manual
(Publication No. 9399-APSUM-11.15.95)

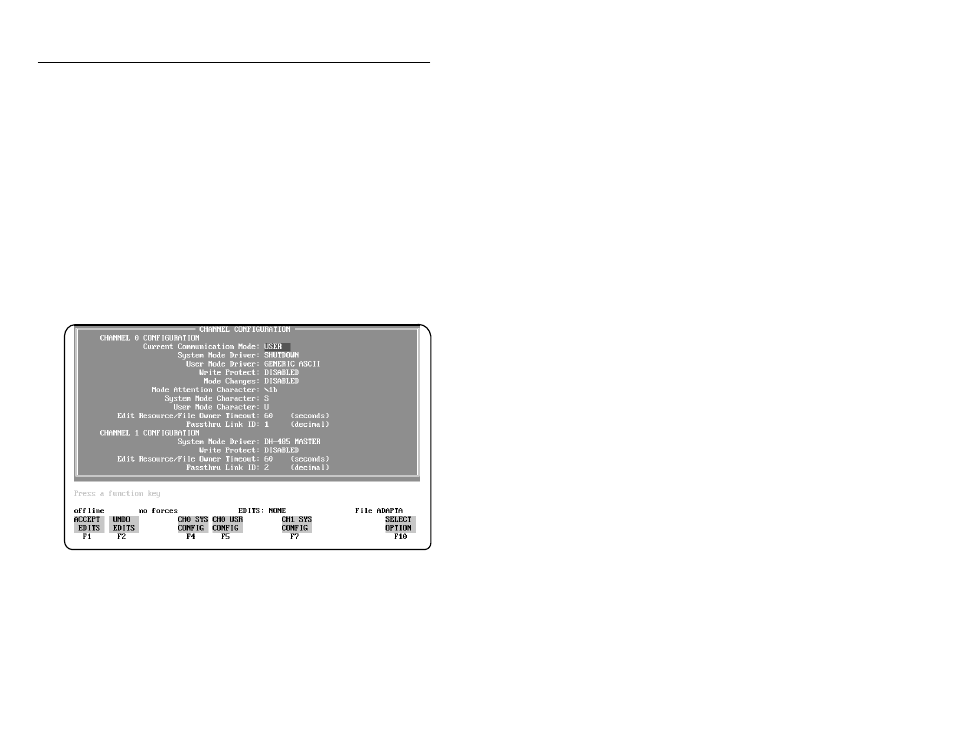

1. Set the SLC Channel 0 to User in the Channel 0 Configuration
screen
