Rockwell Automation 2755 Hand-Held Cordless Bar Code Scanners User Manual
Page 130
Application Examples
A–13
Publication 2755-6.6
Hardware Connections for the SLC 5/03 and SLC 5/04
Controllers

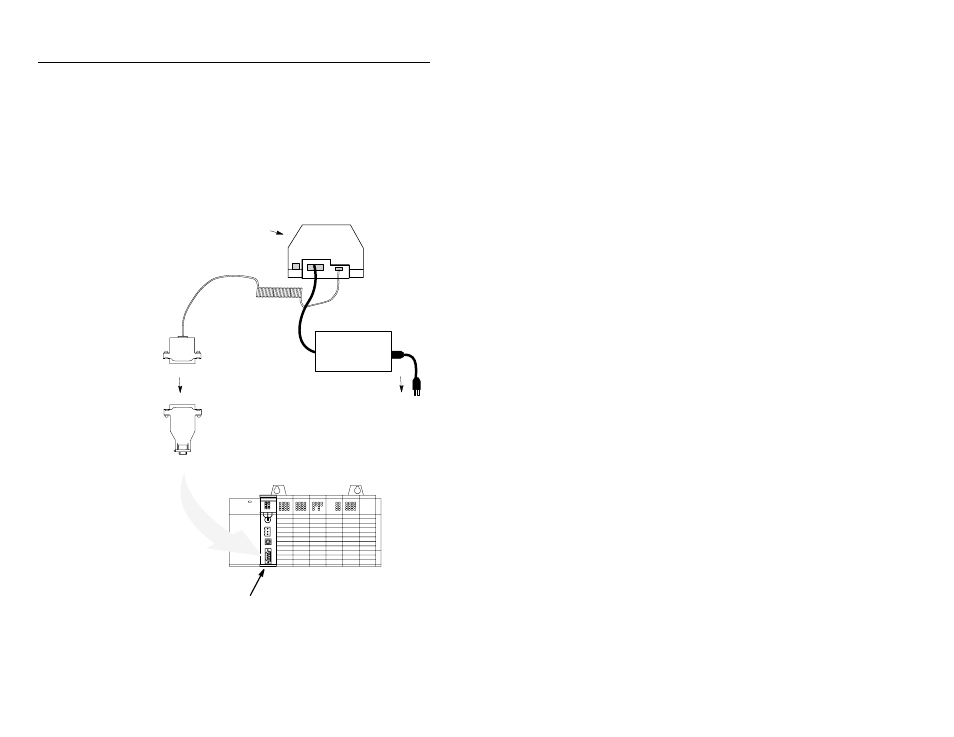

The base/charger unit connects to one of the communication ports on
the SLC 5/03 or SLC 5/04 controllers with an RS-232 cable (Catalog
No. 2755-HCC-BR1-06). You need to use a 25–9 pin connector as
shown below.
RS-232C Cable
Base/Charger Unit
Power Supply
To Power Receptacle
Channel 0
SLC 5/04
25–9 Pin
Adapter
