Rockwell Automation 2711-M3A18L1_M3A19L1 PanelView 300 Micro Terminals Installation Instructions User Manual
Page 53
PanelView 300-Microterminal 53
41061-156-01(A)

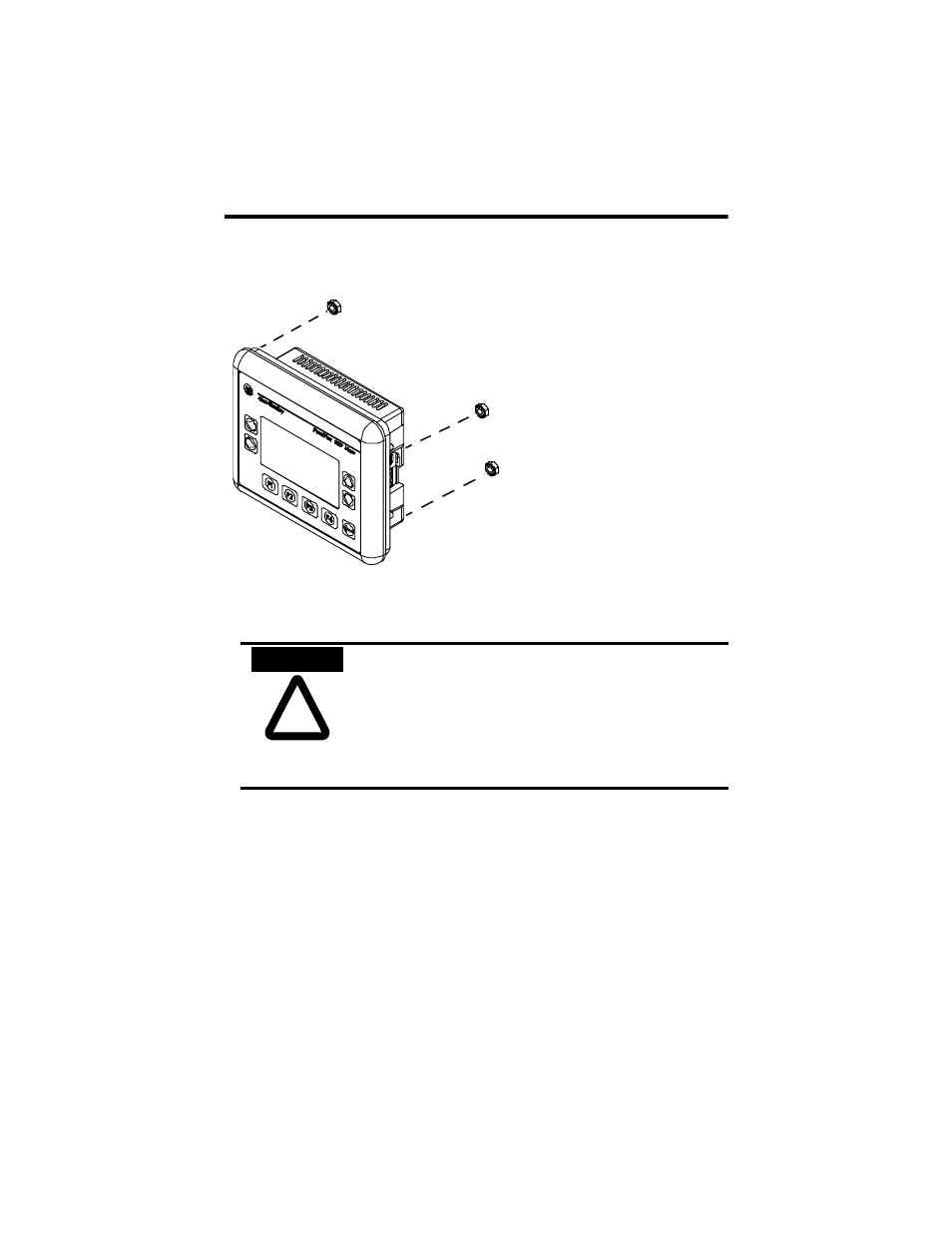

4. Bringen Sie die vier selbstsichernden Muttern an, und drehen Sie diese
manuell fest.
5. Ziehen Sie abwechselnd die Montagemuttern an, bis das Terminal bündig und
fest am Schaltschrank anliegt. Ziehen Sie Montagemuttern mit einem
Drehmoment von 1,13 Nm fest. Überdrehen Sie die Schrauben nicht.
!
ACHTUNG
Um eine korrekte Abdichtung zu erzielen und potentielle
Schäden am Terminal zu verhindern, müssen die
Montagemuttern mit einem Drehmoment von 1,13 Nm
festgezogen werden. Allen-Bradley übernimmt keine
Verantwortung für Schäden durch Wasser oder
Chemikalien am Terminal oder anderen Geräten innerhalb
des Gehäuses, die durch unsachgemäße Installation
hervorgerufen werden.
Selbstsichernde Muttern
(4 benutzt, 6 geliefert)
