5. Mount the cable grip to the InView display housing. Tighten the locknut

finger-tight and rotate an additional 1/2 turn.

6. Connect the incoming serial wires to the TB1 terminal block.

7. Torque the cable grip until the cap is completely seated.

8. Replace the power supply back cover with the 6 screws. Torque the screws

to 2.7Nm (24 in-lbs).

9. Connect the power supply to a power source.

TIP

Be sure to place the wires so they are not caught by screws
when replacing the power supply cover, and also so they do
not interfere with fan operation.

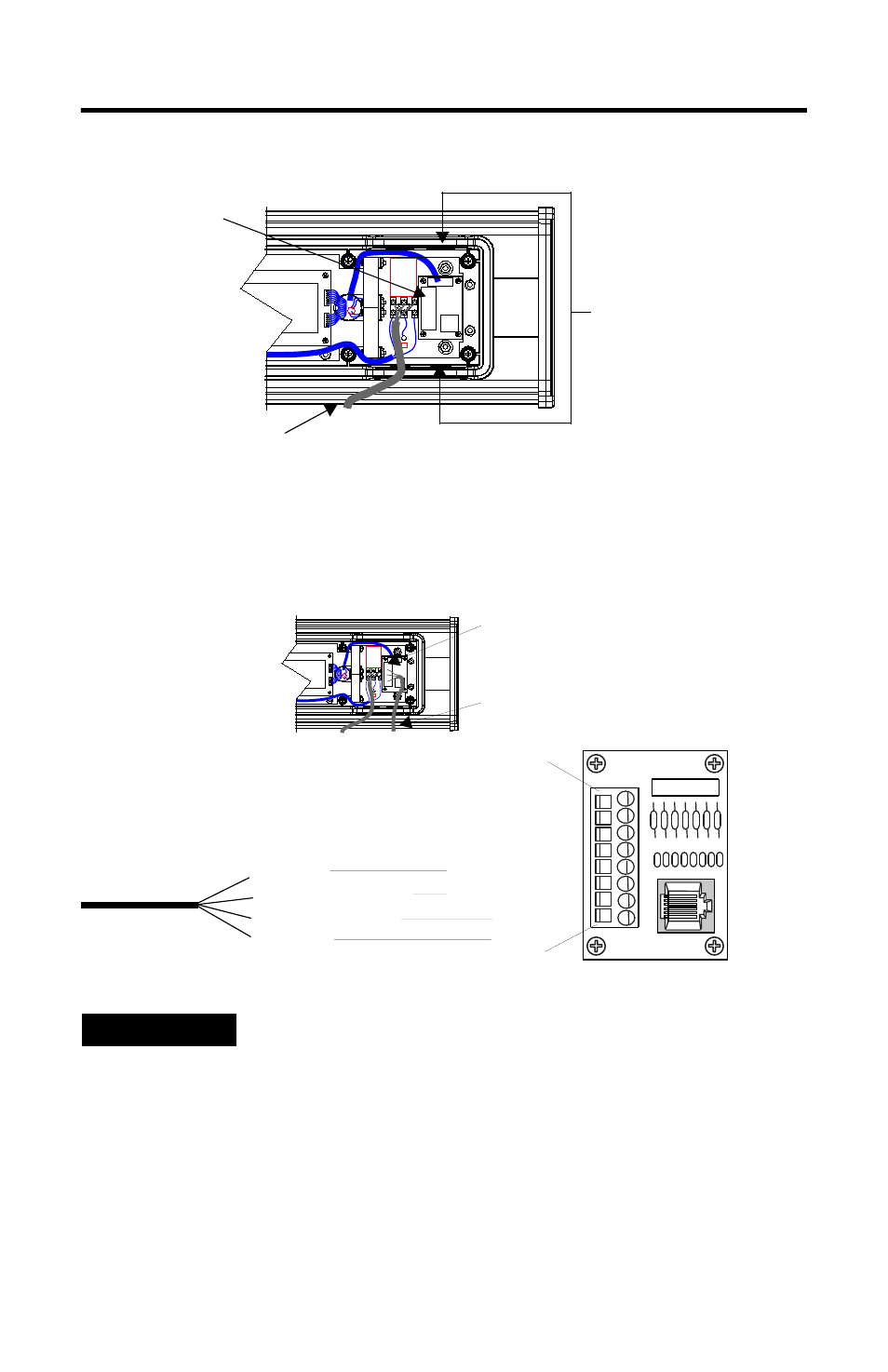

Power Line

Insert the serial wires with
the cable grip into one of
these conduit openings.

TB1 Terminal
Block for serial
connection

Incoming serial wires

TB1

(NC) 8
(NC) 7
(NC) 6
(NC) 5

(RS-232 RX) 4

(RS-232 TX) 3

(+5V) 2

(GND) 1

White (Rxd)

White / Black Line (Txd)

Black (GND)

Black / White Line (PWR)

TB1 Terminal Block
