InView Ethernet TCP/IP Module 5

Publication 2706-IN008D-EN-P - October 2003

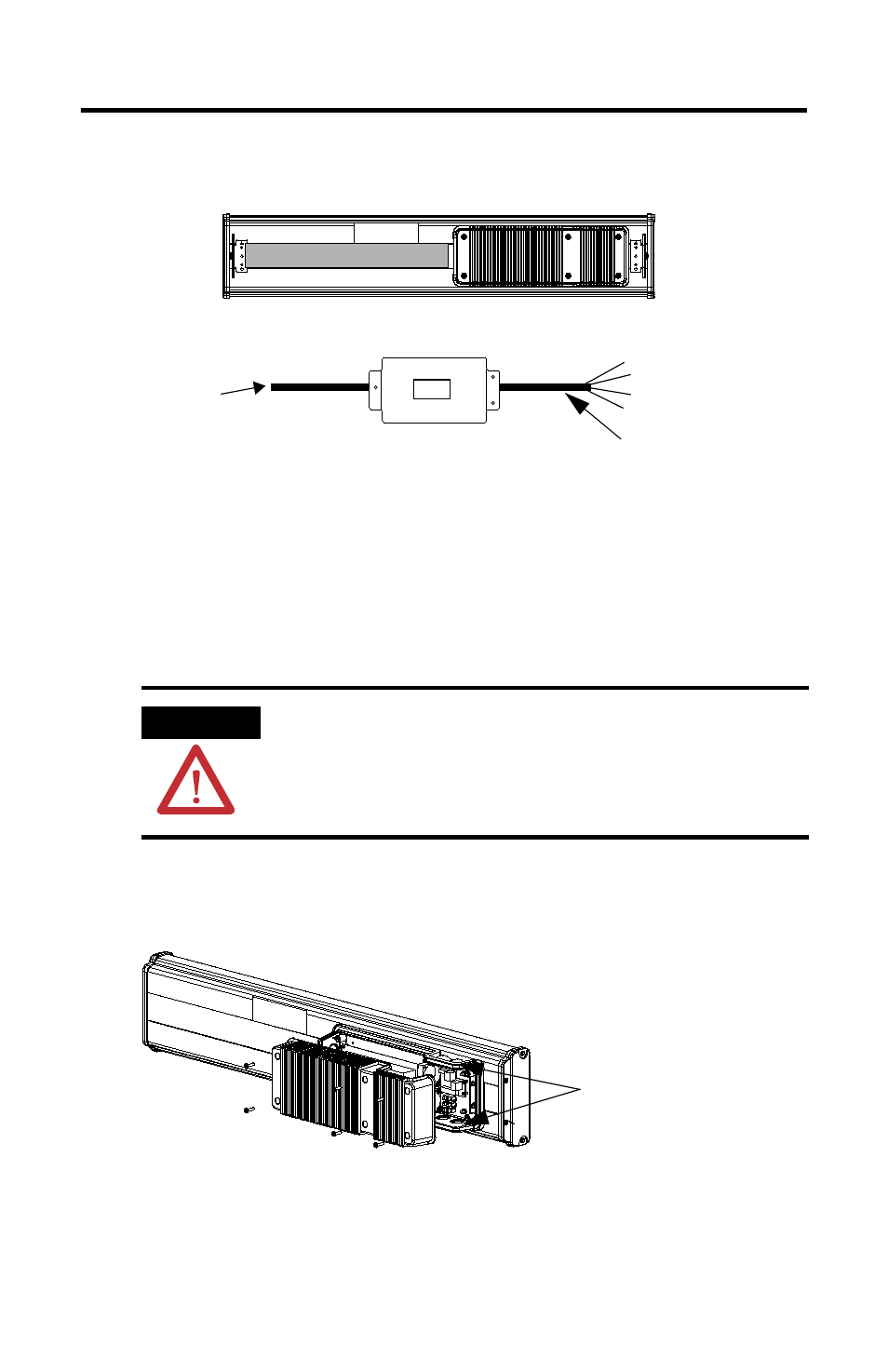

Wiring the Ethernet TCP/IP Module to the InView Display

1. Disconnect power to InView display.

2. Remove the power supply cover by unscrewing its 6 screws. Set the screws

and cover aside for later step.

3. Feed the serial cable through the cable grip (shipped with module).

4. Insert the serial wires through the right conduit opening on either the top or

the bottom of the InView display.

ATTENTION

Hazardous voltage. Contact with high voltage may
cause death or serious injury. Always disconnect power
to sign prior to servicing.

2706-PENET1

NEMA Type 4X Enclosure with Removable Cover

Torque Enclosure Cover screws to 1.1 Nm (10.0
in-lb).

Serial cable to be connected
to InView display

Customer-supplied
Ethernet through
NEMA-rated

supplied connector

Note: Loop Ethernet
cable inside enclosure to
relieve stress on the
communication card.

To terminal block

inside power supply cover
on back of display

Back of InView Display (P42, P43, P44)

Right conduit openings
