10 InView Ethernet TCP/IP Module
Publication 2706-IN008D-EN-P - October 2003

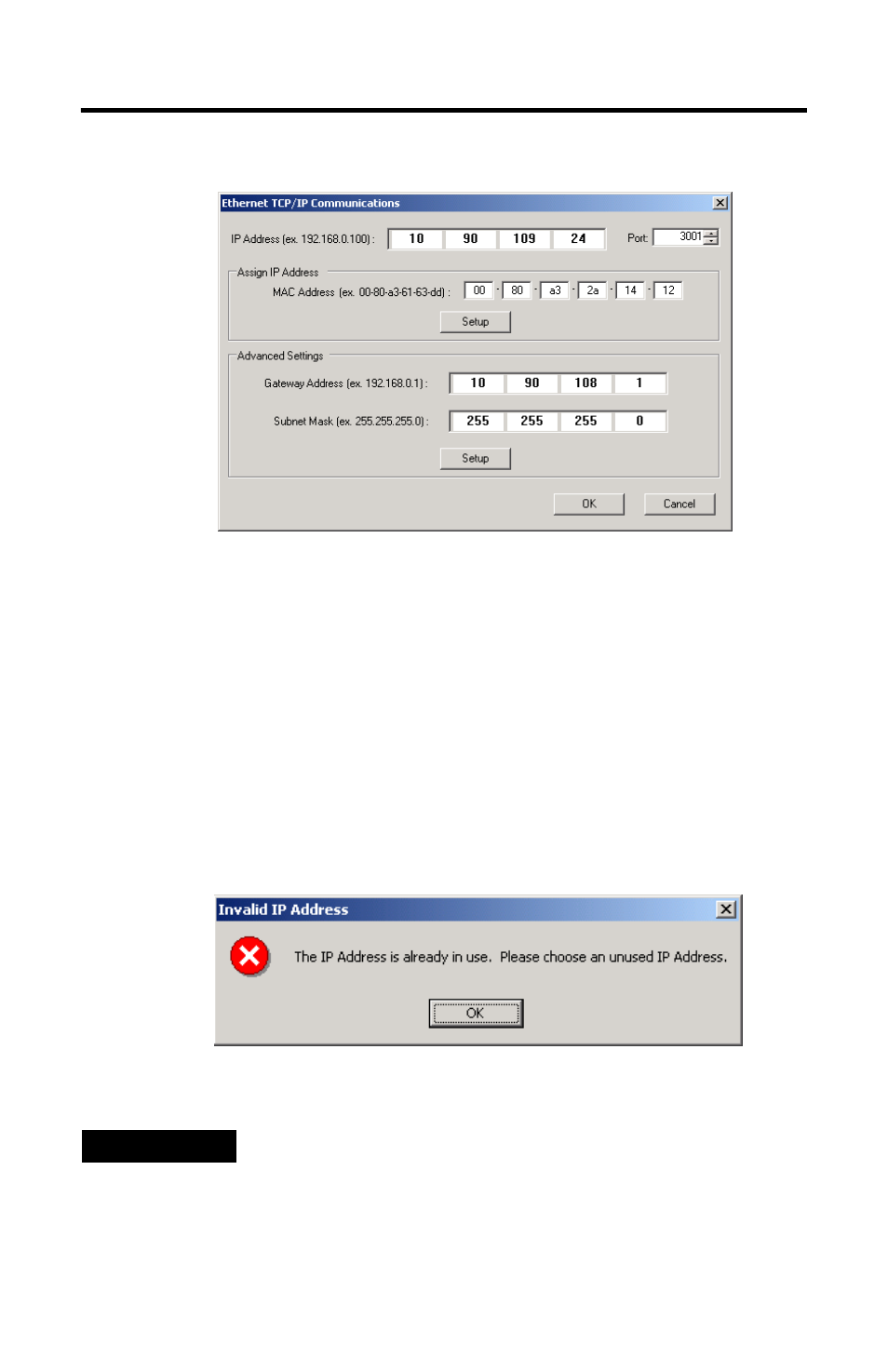

4. At the top of the window labeled IP Address, this is where you would put
in the desired IP address. The Port, if using a 2706-PENET1 module should
be 3001. Under the heading Assign IP Address, this is where you would
enter the MAC Address of the module. The MAC Address will be found on
the module itself.
5. Once the desired IP Address, Port, and MAC Address have been entered,
click the Setup button located in the section titled Assign IP Address.
If the IP Address is already in use, an error message window will appear,
like the one shown below.
TIP
If the above window appears, just click OK and choose a
different desired IP Address and click the Setup button again.
Once a valid IP Address has been entered the following
window should appear saying it is ready to assign an IP
address.
